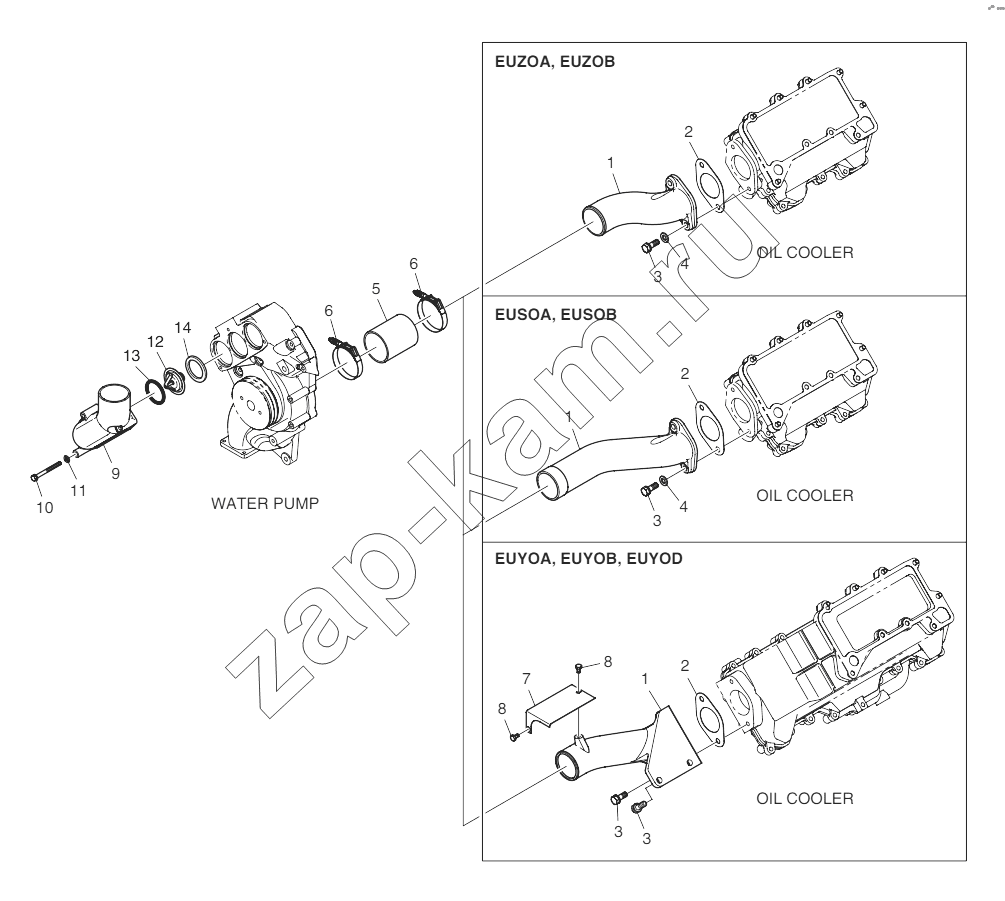

Cooling Water Pipe
/ Doosan P180FE
/23.gif)
1
1
1
1
1
2
2
2
3
3
3
3
4
4
5
6
6
7
8
8
9
10
11
12
13
14
| Поз. | Артикул | Название детали | P158FE-EUZOA | P158FE-EUZOB | P180FE-EUZOA | P180FE-EUZOB | P222FE-EUZOA | P222FE-EUZOB | P222FE-EUZOD | Цена | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.06301-0678 | Pipe | 1 | 1 | - | ||||||
| 1 | 65.06301-0158 | Pipe | 1 | 1 | - | ||||||
| 1 | 65.06301-0163 | Pipe | 1 | 1 | 1 | - | |||||
| 2 | 65.06903B0010 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 3 | 06.01913-3318 | Bolt | 2 | 2 | 2 | 2 | 4 | 4 | 4 | - | |
| 4 | 06.15010-2313 | Washer | 2 | 2 | 2 | 2 | - | ||||
| 5 | 65.96301-0490 | Hose | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 6 | 65.97440-5005 | Clamp | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 7 | 65.08120-0038 | Screen | 1 | 1 | 1 | - | |||||
| 8 | 06.01283-7111 | Bolt | 2 | 2 | 2 | - | |||||
| 9 | 65.06405-0033 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 10 | 06.01014-9117 | Bolt | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 11 | 06.16044-0210 | Washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 12 | 51.06402-0062 | Element | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 13 | 06.56342-1208 | O-ring | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 14 | 65.06901A0069 | Gasket | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
