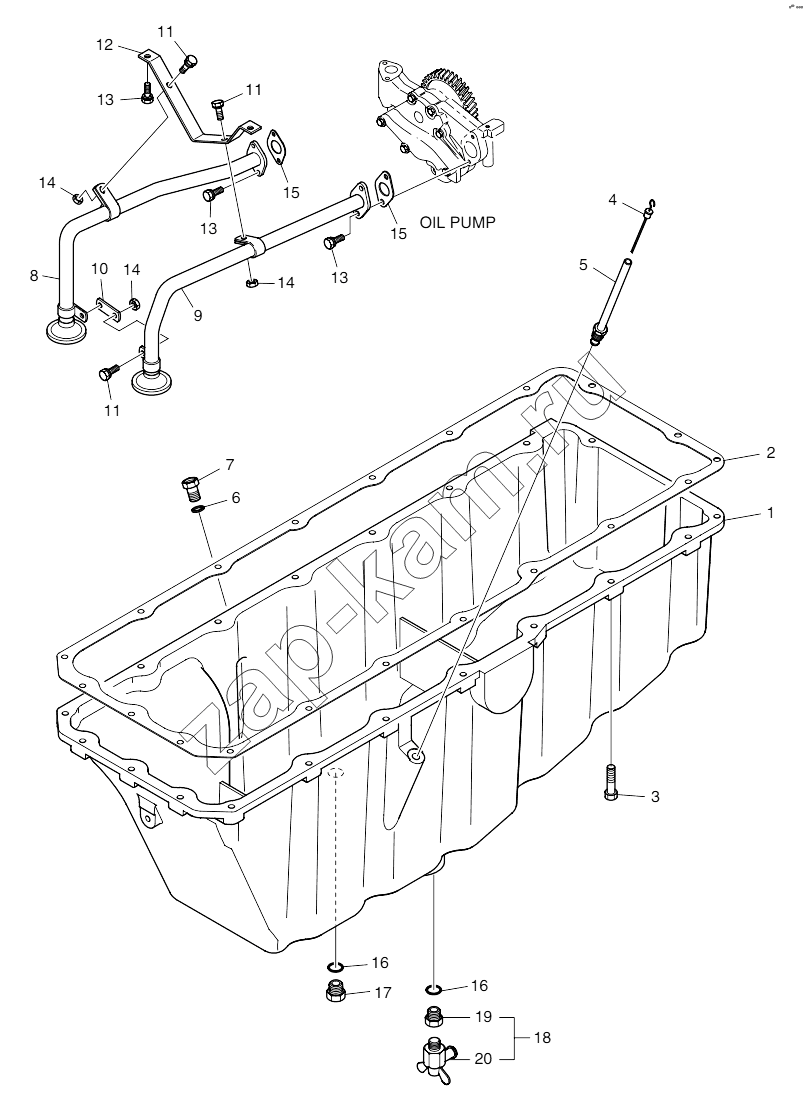

Oil Pan
/ Doosan P180FE
/22.gif)
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
13
13
14
14
14
15
15
16
16
17
18
19
20
| Поз. | Артикул | Название детали | P222FE-EUZOA | P222FE-EUZOB | P222FE-EUZOD | |
|---|---|---|---|---|---|---|
| 1 | 65.05801-5215A | Pan | 1 | 1 | 1 | |
| 2 | 65.05904-0105B | Gasket | 1 | 1 | 1 | |
| 3 | 06.01933-3118 | Bolt | 20 | 20 | 20 | |
| 4 | 65.05805-5162 | Oil level gauge assy | 1 | 1 | 1 | |
| 5 | 65.05806-6085 | Pipe | 1 | 1 | 1 | |
| 6 | 06.56190-0713 | Ring | 1 | 1 | 1 | |
| 7 | 65.90310-0131 | Screw | 1 | 1 | 1 | |
| 8 | 65.05701-5582 | Pipe | 1 | 1 | 1 | |
| 9 | 65.05701-5804 | Oil suction pipe assy | 1 | 1 | 1 | |
| 10 | 65.97480-0422 | Holder | 1 | 1 | 1 | |
| 11 | 06.01913-3115 | Bolt | 4 | 4 | 4 | |
| 12 | 65.05740-0093 | Holder | 1 | 1 | 1 | |
| 13 | 06.01913-3113 | Bolt | 6 | 6 | 6 | |
| 14 | 06.11063-8214 | Nut | 4 | 4 | 4 | |
| 15 | 65.96601-0055 | Gasket | 2 | 2 | 2 | |
| 16 | 06.56190-0728 | Ring | 2 | 2 | 2 | |
| 17 | 65.90310-0139 | Screw | 1 | 1 | 1 | |
| 18 | 65.98125-5012 | Drain joint assy | 1 | 1 | 1 | |
| 19 | 65.98130-0009 | Adapter | 1 | 1 | 1 | |
| 20 | 65.98125-5010 | Cock | 1 | 1 | 1 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
