Accessory Parts
/ Doosan P180LE
1
1
1
2
2
2
2
2
2
2
2
2
3
3
4
4
5
5
5
5
6
7
8
9
10
10
11
11
11
12
13
13
14
15
15
16
16
17
18
18
19
19
20
21
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29

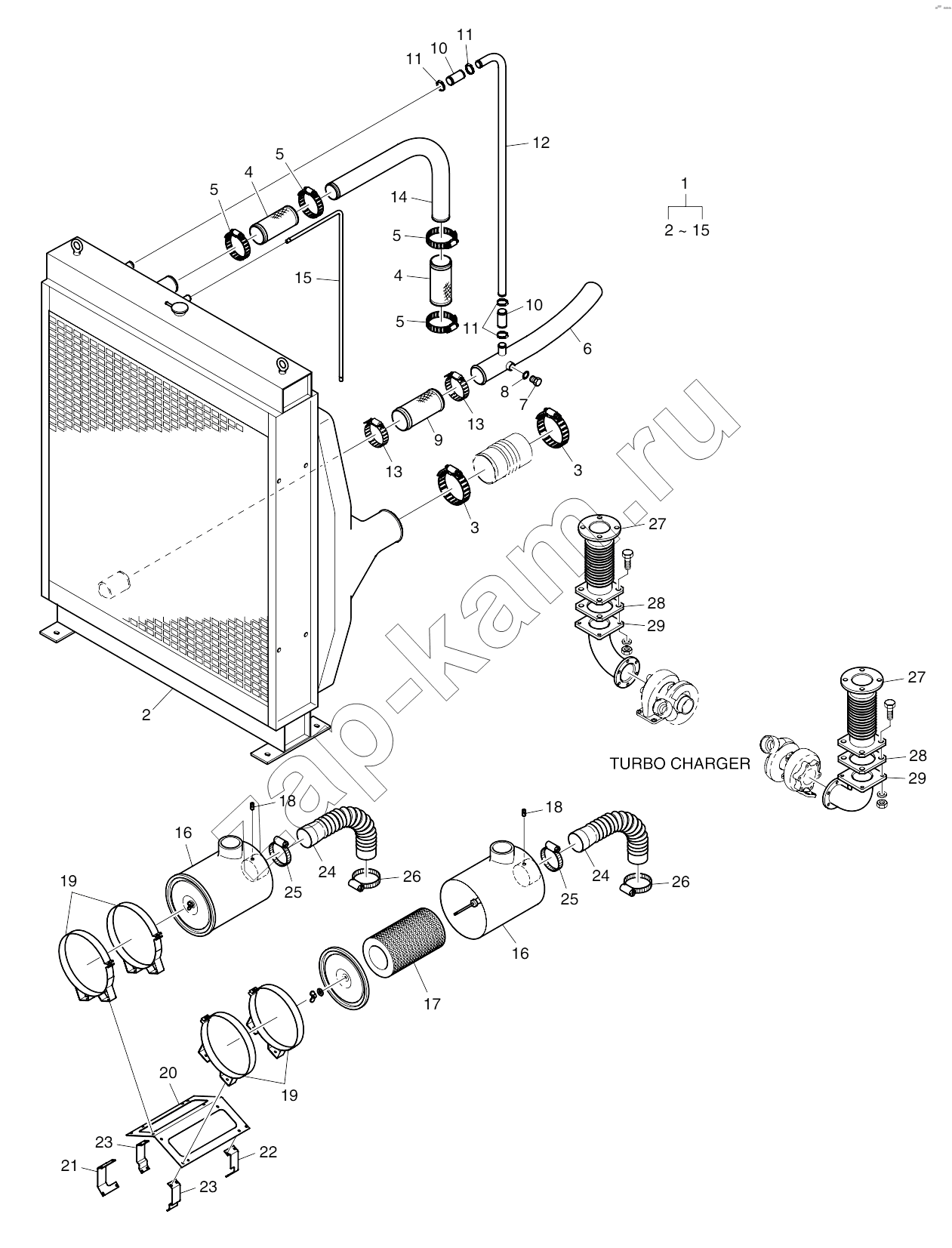

| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | Цена | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.06100-8013 | Radiator and inter cooler assy | 1 | - | |||||||||
| 1 | 65.06100-8012 | Radiator and inter cooler assy | 1 | 1 | 1 | 1 | - | ||||||
| 1 | 65.06100-8014 | Radiator and inter cooler assy | 1 | 1 | 1 | 1 | - | ||||||
| 2 | 65.06101-7015 | Radiator | 1 | 1 | 1 | 1 | - | ||||||
| 2 | 65.06101-7016 | Radiator | 1 | 1 | 1 | 1 | 1 | - | |||||
| 2 | 65.06101-7026 | Radiator | 1 | 1 | 1 | 1 | - | ||||||
| 2 | 65.06101-7027 | Radiator | 1 | 1 | 1 | 1 | 1 | - | |||||
| 2 | 65.06101-7016 | Radiator | 1 | 1 | 1 | 1 | - | ||||||
| 2 | 65.06101-7023 | Radiator | 1 | 1 | 1 | 1 | - | ||||||
| 2 | 65.06101-7027 | Radiator | 1 | 1 | 1 | 1 | - | ||||||
| 2 | 65.06101-7028 | Radiator | 1 | 1 | 1 | 1 | - | ||||||
| 3 | 65.97401-6040 | Clip | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | |
| 4 | 04.27415-0415 | Hose | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 5 | 06.67020-0113 | Clamp | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | |
| 6 | 65.06301-5178 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 7 | 06.08092-2406 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 8 | 06.56190-0713 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 9 | 04.27415-0315 | Hose | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 10 | 04.27405-1113 | Hose | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 11 | 06.67020-0106 | Clamp | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | |
| 12 | 65.06301-0231 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 13 | 06.67020-0112 | Clamp | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 14 | 65.06301-0212 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 15 | 65.06301-0287 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 16 | 65.08300-7007 | Air cleaner assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 17 | 65.08304-6005 | Element | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 18 | 67.16250-6003 | Indicator | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 19 | 65.08342-5007 | Band | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | |
| 20 | 65.08340-0011 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 21 | 65.08340-0010 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 22 | 65.08340-0012 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 23 | 65.08340-0013 | Bracket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 24 | 65.08310-0010 | Hose | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 25 | 06.67020-0116 | Clamp | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 26 | 06.67020-0117 | Clamp | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 27 | 65.15211-5008 | Bellows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 28 | 65.15901-0010 | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 29 | 65.08112-5027 | Joint elbow | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
