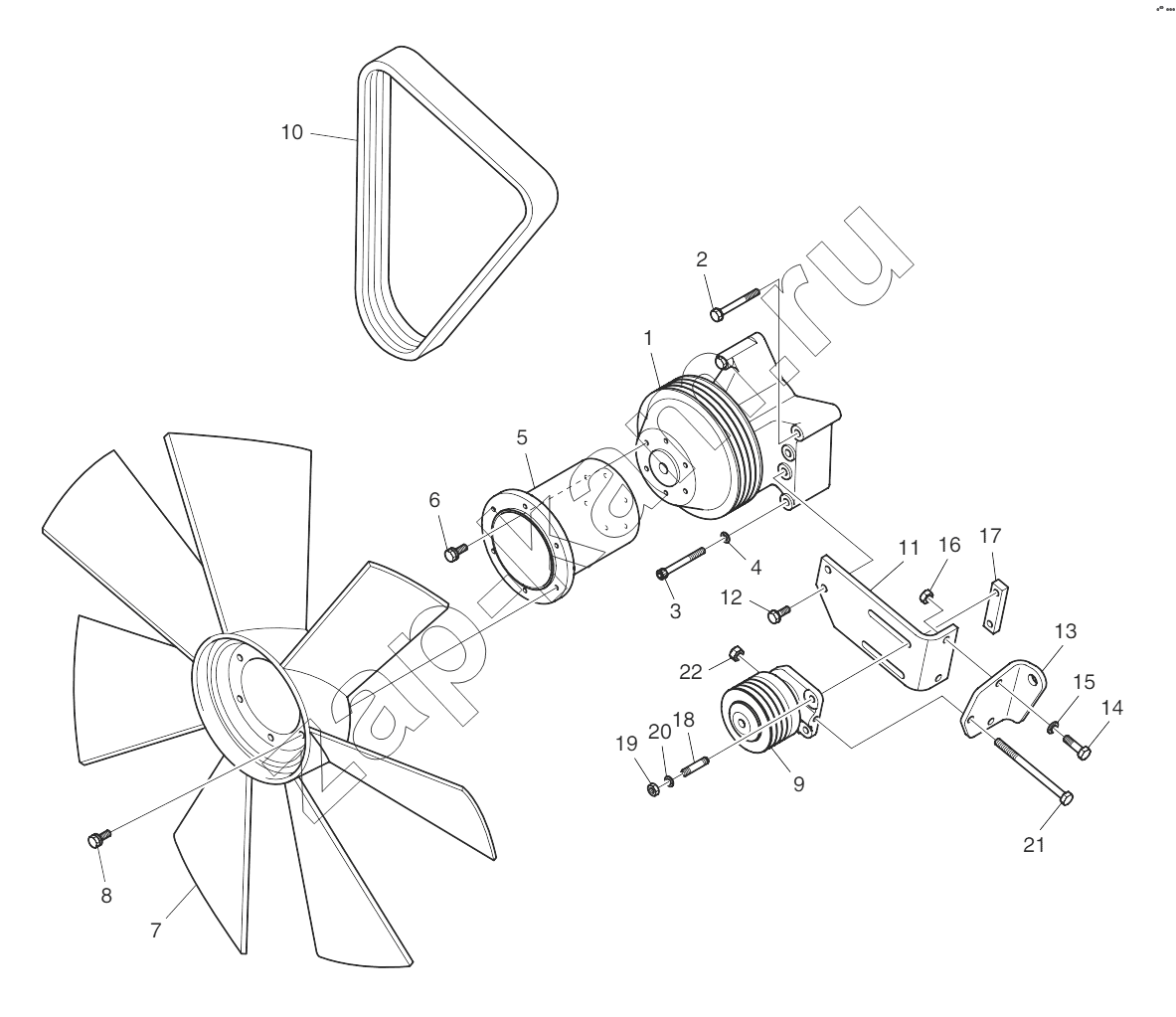

Cooling Fan
/ Doosan P180LE
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | Цена | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.06602-6010 | Mounting | 1 | 1 | - | ||||||||
| 1 | 65.06602-6008 | Mounting | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |||
| 2 | 06.01913-3229 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 3 | 06.02091-0527 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 4 | 06.16110-0107 | Washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 5 | 65.06611-0138 | Flange | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 6 | 06.01913-3116 | Bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - | |
| 7 | 65.06601-5048 | Fan | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 8 | 06.01923-3113 | Bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - | |
| 9 | 65.95800-7025 | Idle pulley assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 10 | 65.96801-0195A | V-belt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 11 | 65.95840-0077 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 12 | 06.01914-3215 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 13 | 65.95840-0078 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 14 | 06.01284-7218 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 15 | 06.16731-2108 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 16 | 06.11063-8215 | Nut | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 17 | 65.95840-0079 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 18 | 06.06225-0809 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 19 | 06.11063-8215 | Nut | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 20 | 06.16731-2108 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 21 | 06.01283-7235 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 22 | 06.11250-2106 | Nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
