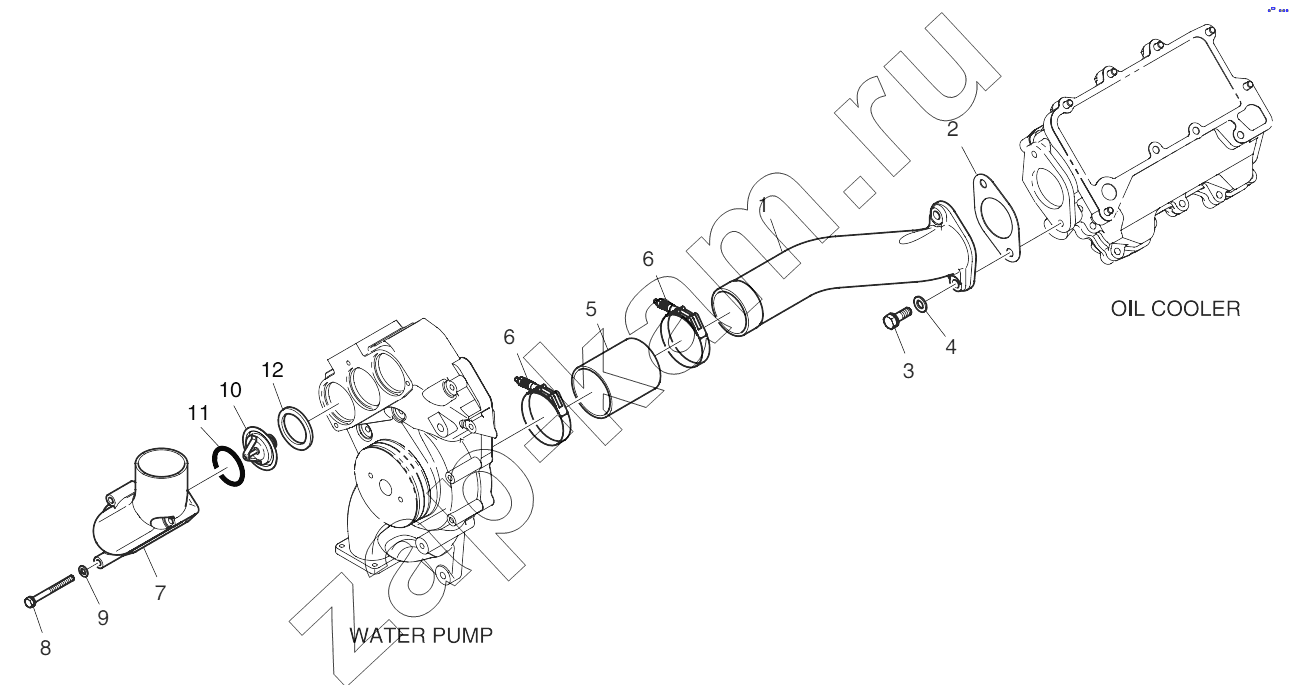

Cooling Water Pipe
/ Doosan P180LE
1
2
3
4
5
6
6
7
8
9
10
10
11
12
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | Цена | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.06301-0158 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 2 | 65.06903B0010 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 3 | 06.01913-3318 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 4 | 06.15010-2313 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 5 | 65.96301-0490 | Hose | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 6 | 65.97440-5005 | Clamp | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 7 | 65.06301-0368 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 8 | 06.01014-9117 | Bolt | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 9 | 06.16044-0210 | Washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 10 | 51.06402-0061 | Element | 3 | - | |||||||||
| 10 | 51.06402-0062 | Element | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | ||
| 11 | 06.56342-1208 | O-ring | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 12 | 65.06901A0069 | Gasket | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
