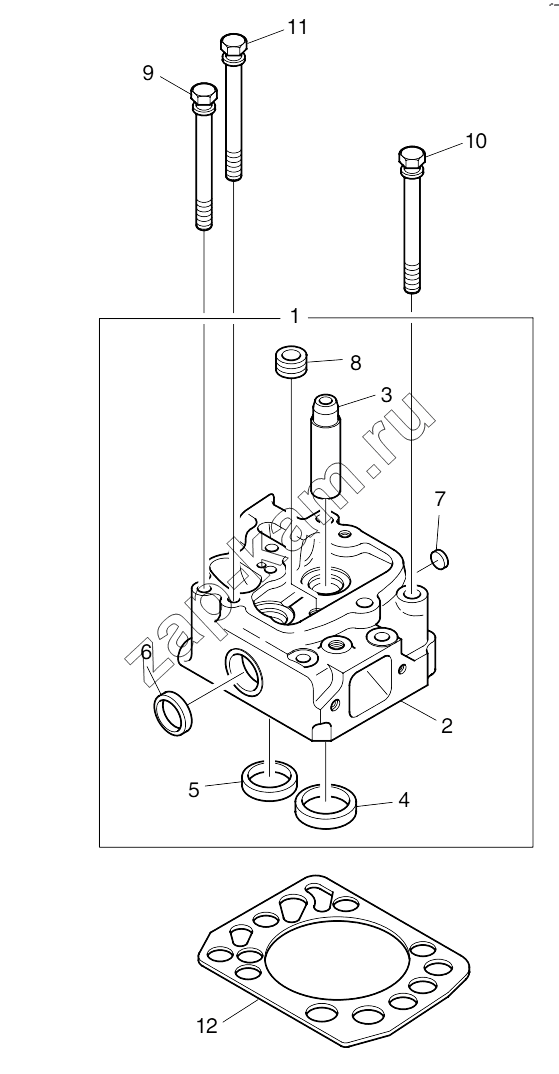

Cylinder Head
/ Doosan P180LE
1
2
3
4
5
6
7
8
9
10
11
12
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.03101-6067C | Cylinder head assy | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 2 | 65.03101-1047B | Head | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.03201-1040 | Guide | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 4 | 65.03203-0242 | Seat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5 | 65.03203-0184 | Seat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 65.91606-0037 | Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 65.91606-0041 | Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 06.08023-0207 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 65.90020-0268 | Bolt | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| 10 | 65.90020-0269 | Bolt | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| 11 | 65.90020-0270 | Bolt | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 12 | 65.03901-0069 | Gasket | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
