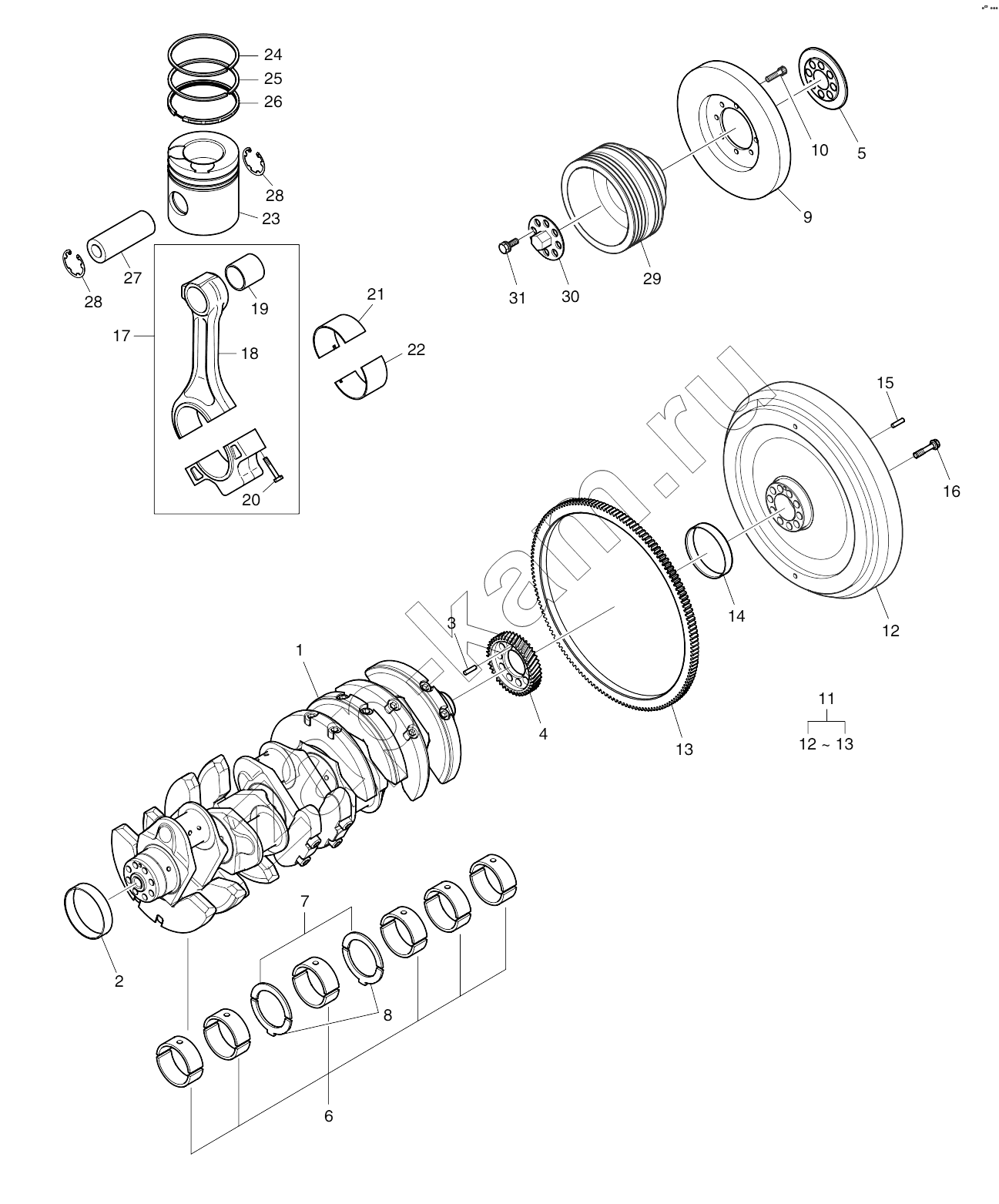

Driving System
/ Doosan P180LE
1
1
2
3
4
5
6
7
8
9
9
9
10
11
12
12
13
13
14
15
16
17
17
18
19
20
21
22
23
23
24
24
25
25
26
26
27
28
28
28
29
29
30
31
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.02101-6020B | Shaft | 1 | 1 | 1 | 1 | 1 | |||||
| 1 | 65.02101-7110A | Shaft | 1 | 1 | 1 | 1 | ||||||
| 2 | 65.02130-0001 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 06.22022-3065 | Pin | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | 65.02115-0066 | Gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5 | 65.01505-0007 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 65.01110-6529 | Bearing | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 7 | 65.01150-0058A | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 8 | 65.01150-0059A | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 9 | 65.02201-0049 | Damper | 1 | 1 | 1 | |||||||
| 9 | 65.02201-0048 | Damper | 1 | 1 | 1 | |||||||
| 9 | 65.02201-0047 | Damper | 1 | 1 | 1 | |||||||
| 10 | 65.90030-0015 | Bolt | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | |
| 11 | 65.02301-5014C | Flywheel assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 65.02301-0303E | Flywheel | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 13 | 65.02310-0073D | Gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 14 | 65.02130-0002 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15 | 65.91303-0005 | Pin | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 16 | 65.90020-0127 | Bolt | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 17 | 65.02401-6020 | Connecting rod assy | 10 | 10 | 10 | 10 | 10 | |||||
| 17 | 65.02401-6019 | Connecting rod assy | 10 | 10 | 10 | 10 | ||||||
| 18 | 65.02401-0012 | Rod | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 19 | 65.02405-1008 | Bush | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | 65.02411-0008 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 21 | 65.02410-0100 | Bearing | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 22 | 65.02410-0200 | Bearing | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 23 | 65.02501-0704 | Piston | 10 | 10 | 10 | 10 | ||||||
| 23 | 65.02501-0708 | Piston | 10 | 10 | 10 | 10 | 10 | |||||
| 24 | 65.02503-0130 | Ring | 10 | 10 | 10 | |||||||
| 24 | 65.02503-0672 | Ring | 10 | 10 | 10 | 10 | 10 | 10 | ||||
| 25 | 65.02503-0131 | Ring | 10 | 10 | 10 | |||||||
| 25 | 65.02503-0108 | Ring | 10 | 10 | 10 | 10 | 10 | 10 | ||||
| 26 | 65.02503-0678 | Ring | 10 | 10 | 10 | 10 | 10 | 10 | ||||
| 26 | 65.02503-0701 | Ring | 10 | 10 | 10 | |||||||
| 27 | 65.02502-0081 | Pin | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 28 | 65.90815-0022A | Ring | 20 | 20 | 20 | 20 | ||||||
| 28 | 65.90810-0011 | Ring | 20 | 20 | 20 | 20 | 20 | |||||
| 29 | 65.02601-0227 | Pulley | 1 | 1 | 1 | |||||||
| 29 | 65.02601-0228 | Pulley | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 30 | 65.99710-5003 | Plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 31 | 06.02106-0824 | Bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
