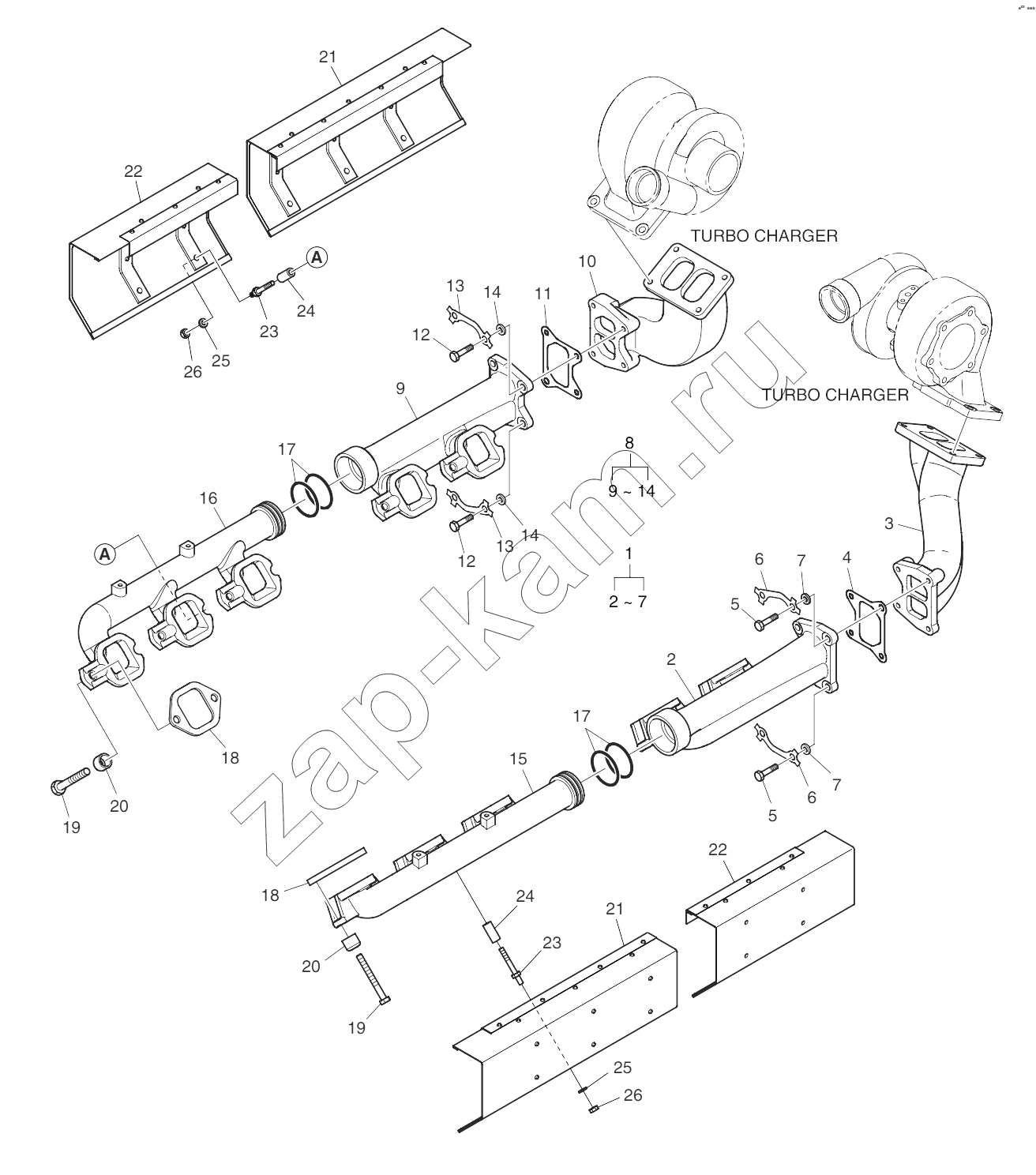

Exhaust Manifold
/ Doosan P180LE
1
2
2
3
4
5
5
6
6
7
7
7
8
9
9
10
11
12
12
13
13
14
14
14
15
16
17
17
18
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.08100-6065A | Exhaust manifold assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 65.08101-0132 | Manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.08101-0253 | Manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | 65.08901-0060 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5 | 65.90001-0157 | Bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 6 | 65.90801-0013 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 7 | 65.90701-0137 | Washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 8 | 65.08100-6067A | Exhaust manifold assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 65.08101-0490 | Manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 65.08101-0250 | Manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 65.08901-0060 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 65.90001-0157 | Bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 13 | 65.90801-0013 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 14 | 65.90701-0137 | Washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 15 | 65.08101-0251 | Manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 16 | 65.08101-0248 | Manifold | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 17 | 65.98701-0005 | Ring | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 18 | 65.08901-0023B | Gasket | 10 | 10 | 10 | 10 | 10 | |||||
| 18 | 65.08901-0040 | Gasket | 10 | 10 | 10 | 10 | ||||||
| 19 | 65.90001-0156 | Bolt | 20 | 20 | 20 | 20 | 20 | 10 | 10 | 10 | 10 | |
| 20 | 65.91701-0541 | Spacer | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| 21 | 65.08120-5029A | Screen | 2 | 2 | 2 | 2 | ||||||
| 22 | 65.08120-5043A | Screen | 2 | 2 | 2 | 2 | ||||||
| 23 | 65.90201-0176 | Bolt | 10 | 10 | 10 | 10 | ||||||
| 24 | 65.91701-0533 | Spacer | 10 | 10 | 10 | 10 | ||||||
| 25 | 06.16731-2108 | Washer | 10 | 10 | 10 | 10 | ||||||
| 26 | 06.11063-8215 | Nut | 10 | 10 | 10 | 10 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
