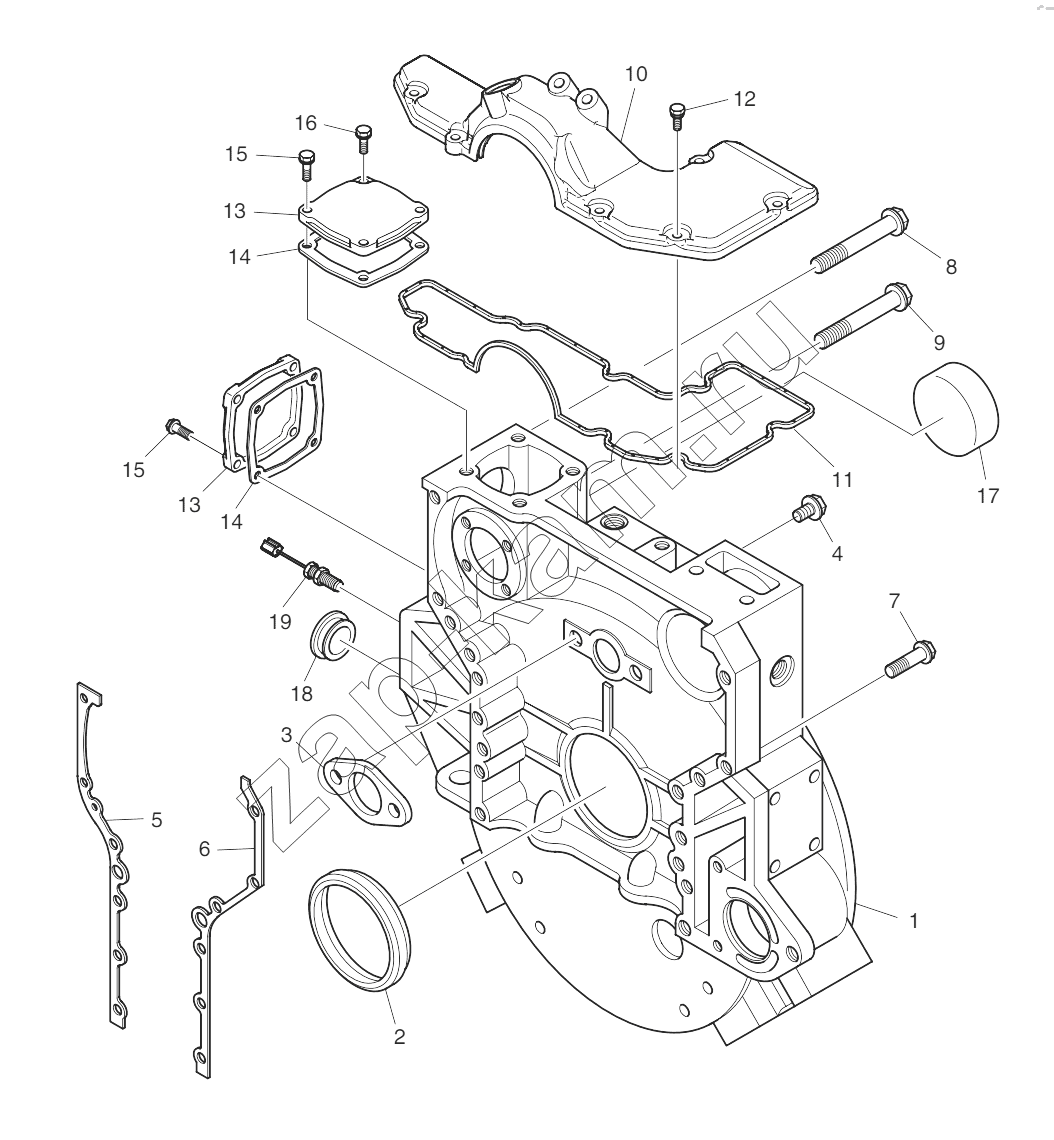

Flywheel Housing
/ Doosan P180LE
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
17
18
19
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.01401-5003 | Housing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 65.01510-0141 | Seal | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.90720-0109 | Washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | 65.90020-0065 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 5 | 65.01903A0200 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 65.01903A0201 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 65.90020-0223 | Bolt | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 8 | 65.90020-0183B | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 65.90020-0054C | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 65.01402-5004C | Cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 65.01903-0216 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 06.01923-3117 | Bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 13 | 65.01402-0033A | Cover | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 14 | 65.54901-0022 | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 15 | 06.01923-3117 | Bolt | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | |
| 16 | 06.01923-3115 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 17 | 65.91606-0042 | Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 18 | 65.96401-0007 | Cap | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 19 | 65.27103-7002C | Sensor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
