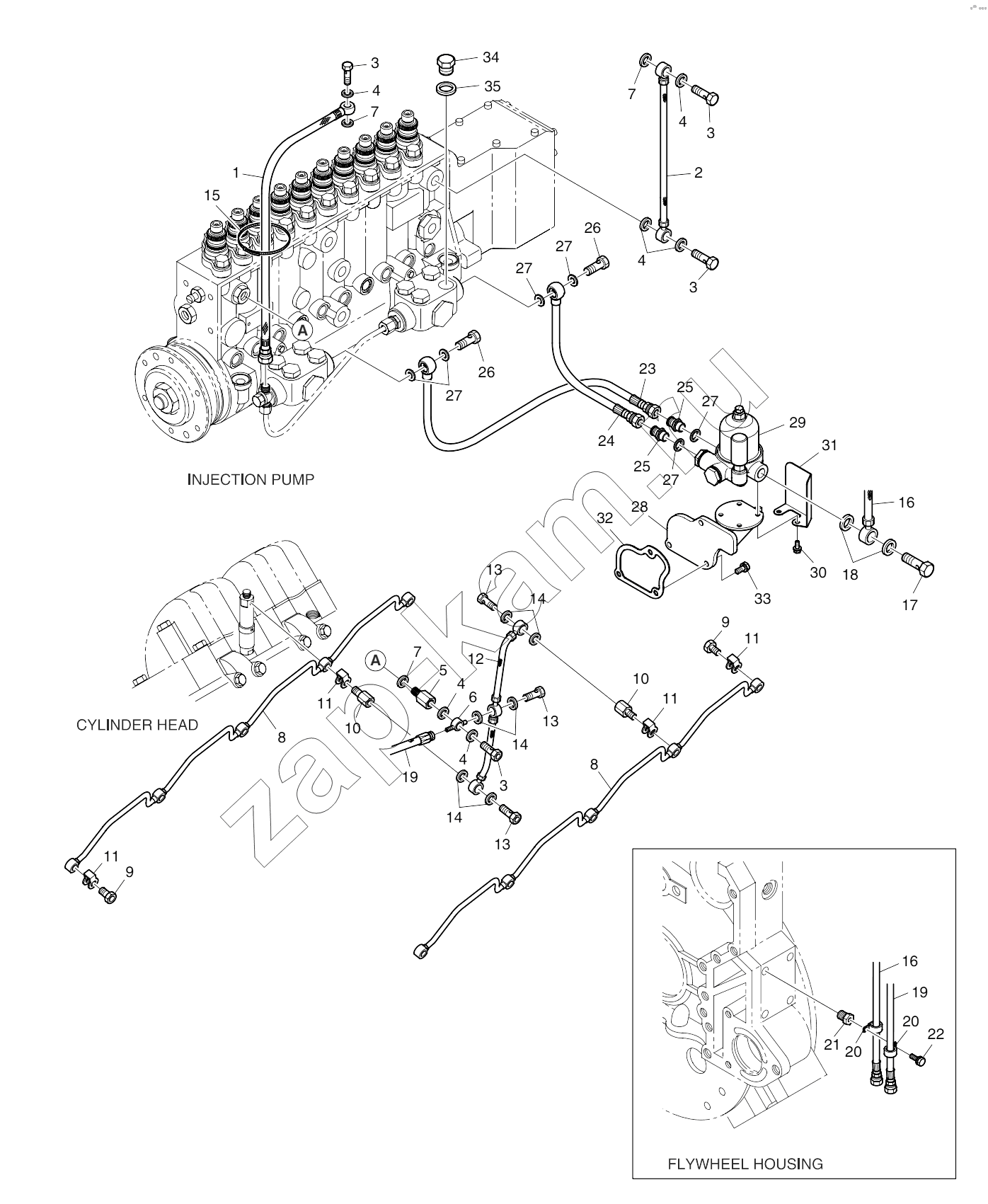

Fuel Pipe
/ Doosan P180LE
1
2
3
3
3
3
4
4
4
4
4
5
6
7
7
8
8
8
9
9
10
10
11
11
11
11
12
13
13
13
14
14
14
14
15
16
17
18
19
19
20
20
21
22
23
24
25
25
26
26
27
27
27
27
27
28
29
30
31
32
33
34
35
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.96340-5030 | Hose | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 65.96340-5019 | Hose | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 06.78144-2204 | Screw | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 4 | 06.56190-0706 | Ring | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 5 | 65.98130-0202 | Adapter | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 65.98101-0027 | Union | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 65.96507-0043 | Ring | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 8 | 65.12301-5143 | Pipe | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 9 | 65.98150-0080 | Screw | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 10 | 65.98150-0057 | Screw | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 11 | 65.96501-0348 | Ring | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| 12 | 65.96341-0094 | Hose | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 13 | 06.78144-2401 | Screw | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 14 | 06.56180-0712 | Ring | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 15 | 65.97460-0001 | Band | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 16 | 65.96340-5058 | Hose | 1 | 1 | 1 | |||||||
| 17 | 06.78144-2406 | Screw | 1 | 1 | 1 | |||||||
| 18 | 06.56190-0712 | Ring | 2 | 2 | 2 | |||||||
| 19 | 65.96340-5059 | Hose | 1 | 1 | 1 | |||||||
| 20 | 65.97401-5024 | Clip | 2 | 2 | 2 | |||||||
| 21 | 65.91701-0189A | Spacer | 1 | 1 | 1 | |||||||
| 22 | 65.90020-0068 | Bolt | 1 | 1 | 1 | |||||||
| 23 | 65.96340-5062 | Hose | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 24 | 65.96340-5063 | Hose | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | 06.78190-0206 | Screw | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 26 | 06.78144-2204 | Screw | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 27 | 06.56190-0706 | Ring | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 28 | 65.12540-5030 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 29 | 65.12501-7036 | Fuel filter assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 30 | 06.01923-2911 | Bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 31 | 65.08120-5104 | Screen | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 32 | 65.08902A0082 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 33 | 06.01913-3112 | BOLT ASS'Y M8X18 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 34 | 65.90310-0150 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 35 | 06.56190-0708 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
