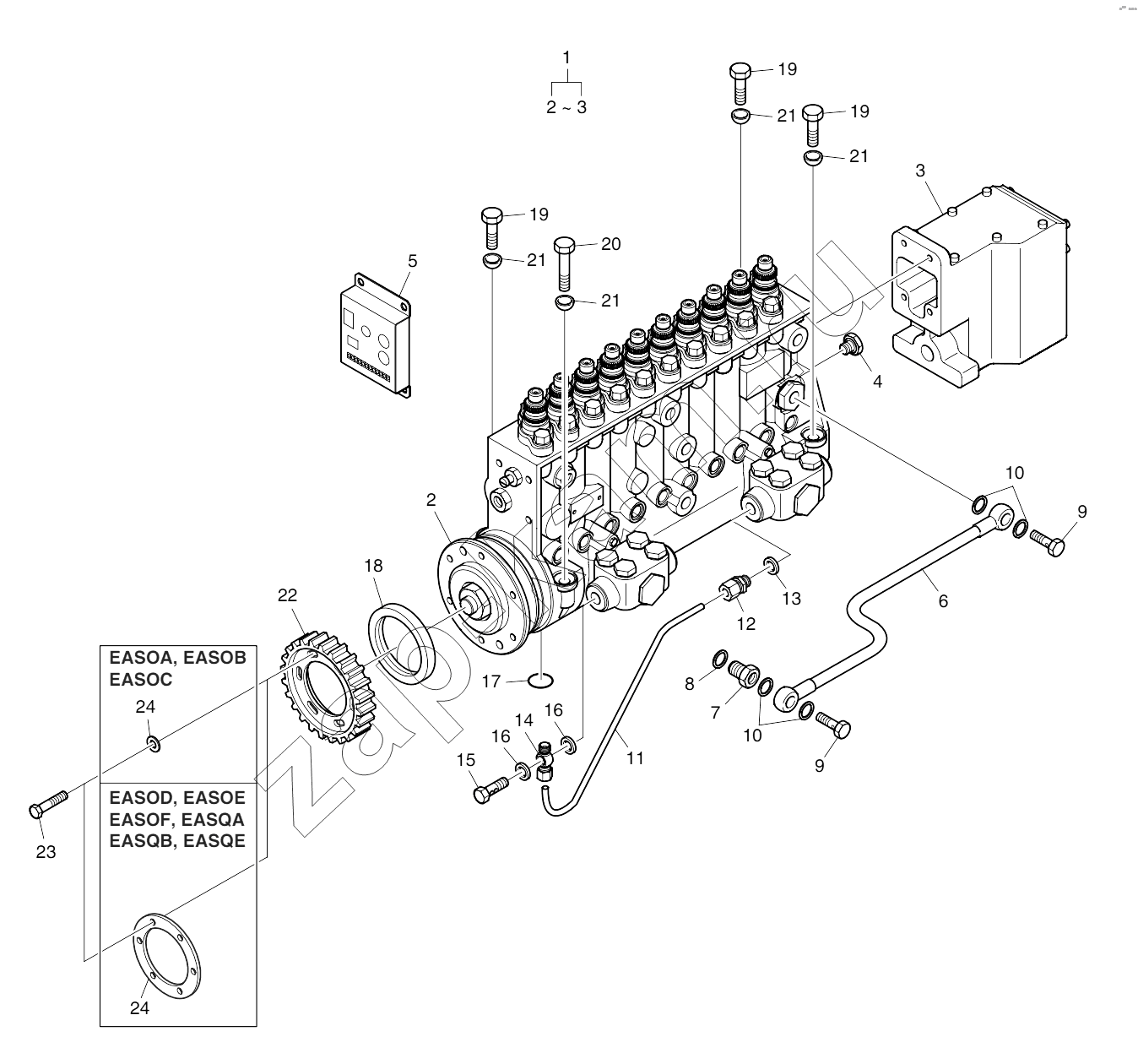

Injection Pump
/ Doosan P180LE
1
2
2
3
3
4
5
5
6
7
8
9
9
10
10
11
12
13
14
15
16
16
17
18
19
19
19
20
21
21
21
21
22
23
24
24
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65.90720-0024 | 65.90720-0024 | Washer | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 1 | 65.11101-7413B | Fuel injection pump assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 65.11101-7302 | Pump | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.11501-7006B | Governor assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | 65.90310-0129 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5 | 65.11220-7008 | Controller | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 5 | 65.11220-7009 | Controller | 1 | 1 | 1 | |||||||
| 6 | 65.05701-5357 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 65.98130-0151 | Adapter | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 06.56190-0726 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 06.78144-2204 | Screw | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 10 | 06.56190-0706 | Ring | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 11 | 65.12301-0002A | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 06.71010-0213 | Fitting | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 13 | 06.56190-0706 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 14 | 65.98103-6002A | Union | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15 | 06.78144-2204 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 16 | 06.56190-0706 | Ring | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 17 | 51.96501-0322 | O-ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 18 | 51.96501-0295 | O-ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 19 | 65.90001-0146A | Bolt | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 20 | 06.01014-7225 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 21 | 06.15061-0103 | Washer | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 22 | 65.11301-0115A | Gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | 06.01284-7112 | Bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 24 | 65.90710-0001A | Spacer | 6 | 6 | 6 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
