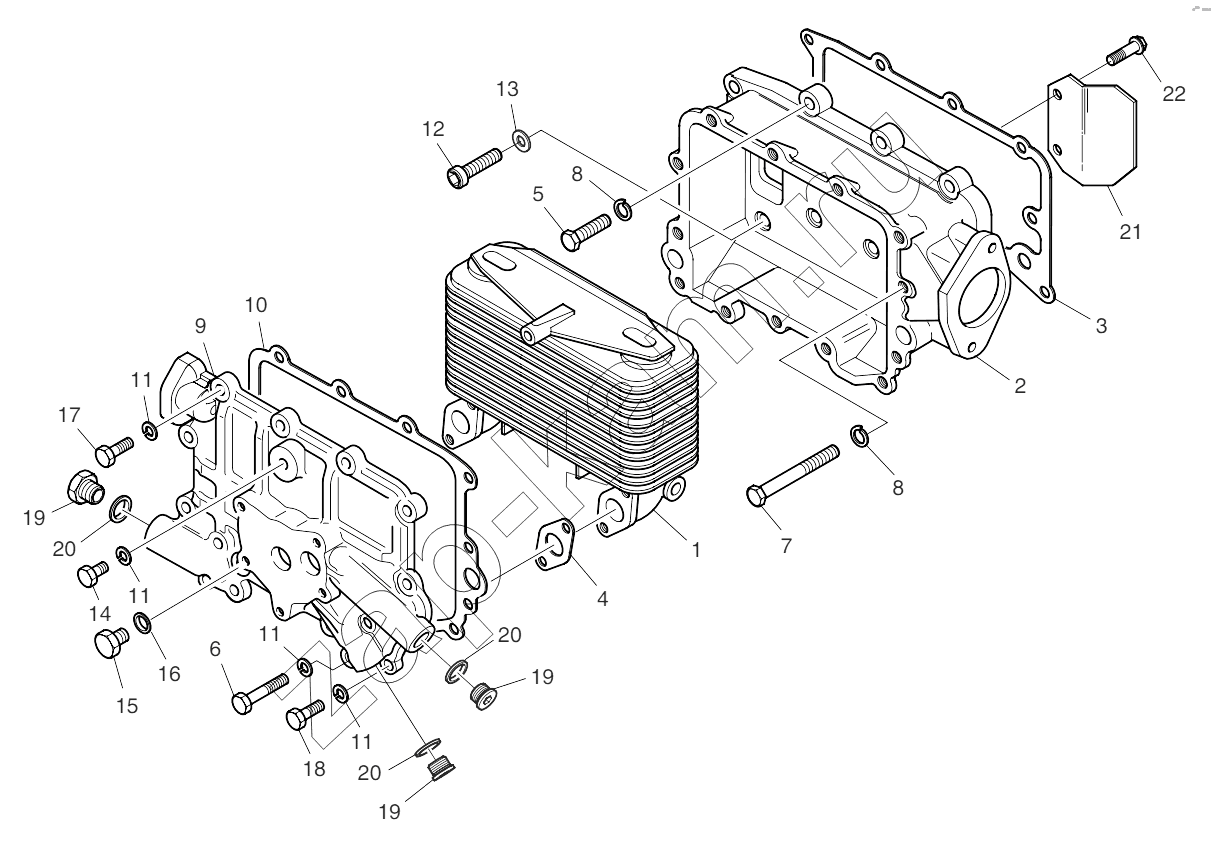

Oil Cooler
/ Doosan P180LE
1
2
3
4
5
6
7
8
8
9
10
11
11
11
11
12
13
14
15
16
17
18
19
19
19
20
20
20
21
22
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | Цена | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.05601-7135 | Oil cooler assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 2 | 65.05604-0029 | Housing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 3 | 65.05901-0014 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 4 | 65.96601-0221B | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 5 | 06.01284-7218 | Bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - | |
| 6 | 06.01013-9116 | Bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | |
| 7 | 06.01014-9226 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 8 | 06.16731-2108 | Washer | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | - | |
| 9 | 65.05605-0040 | Head | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 10 | 65.05902A0038 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 11 | 06.16044-0210 | Washer | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | - | |
| 12 | 65.90030-0001 | Bolt | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 13 | 65.90701-0091 | Washer | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 14 | 06.01283-7111 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 15 | 65.90310-0135 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 16 | 06.56190-0706 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 17 | 06.01284-7117 | Bolt | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | - | |
| 18 | 06.01284-7115 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 19 | 65.90310-0133 | Screw | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 20 | 06.56190-0726 | Ring | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | |
| 21 | 65.05604-0012 | Plate | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 22 | 06.01283-7113 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
