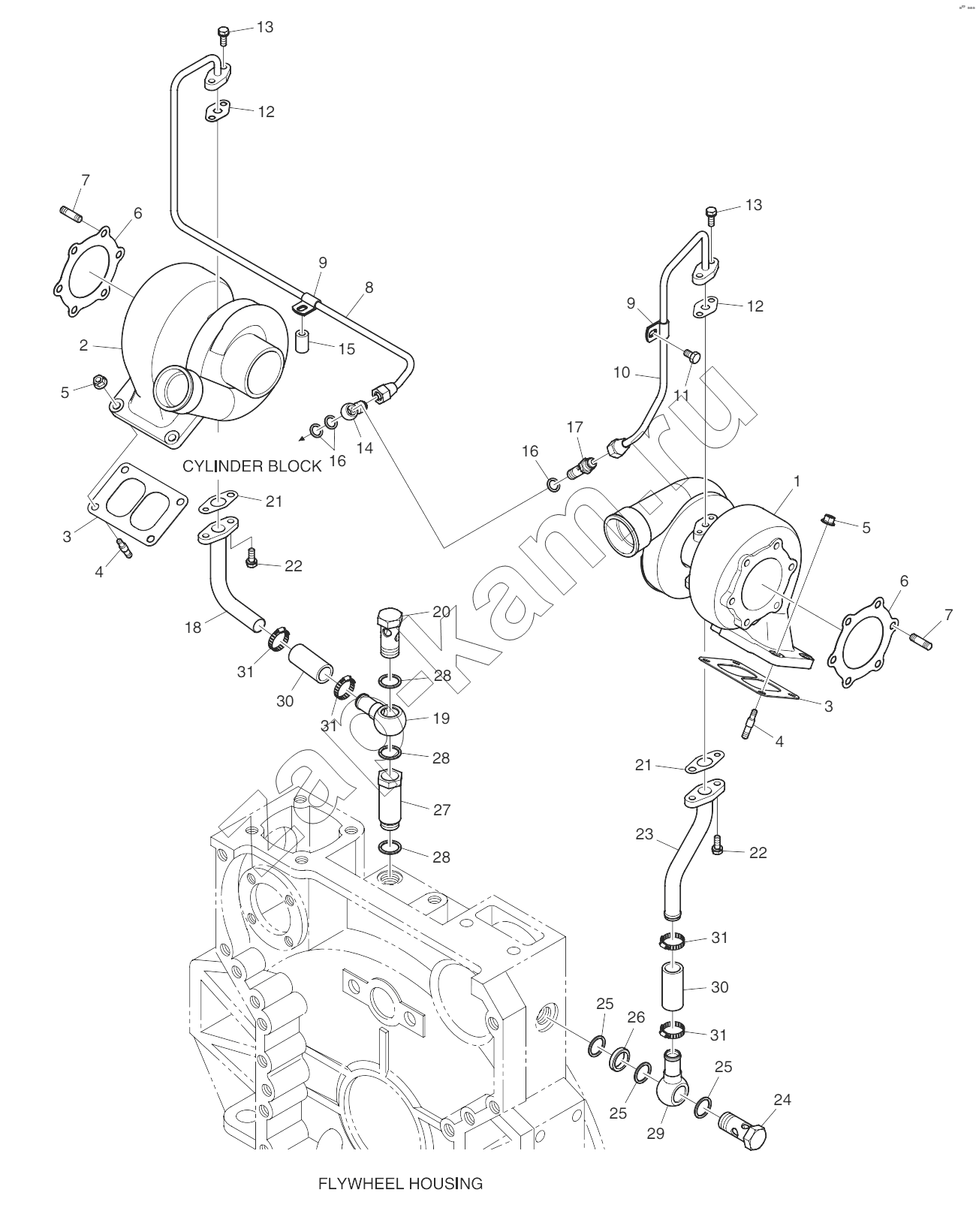

Turbo Charger
/ Doosan P180LE
1
2
3
3
3
4
4
5
5
6
6
7
7
8
9
9
10
11
12
12
13
13
14
15
16
16
17
18
19
20
21
21
22
22
23
24
25
25
25
26
27
28
28
28
29
30
30
31
31
31
31
| Поз. | Артикул | Название детали | P180LE-EASOA | P180LE-EASOC | P180LE-EASQA | P180LE1-EASOB | P180LE1-EASQB | P180LEII-EASOD | P180LES-EASOE | P180LES-EASOF | P180LES-EASQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.09100-7050 | Turbo charger assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 65.09100-7051 | Turbo charger assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.08901-0034 | Gasket | 2 | 2 | 2 | 2 | 2 | |||||
| 3 | 65.09901-0033 | Gasket | 2 | 2 | 2 | 2 | ||||||
| 4 | 65.90201-0076 | Bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 5 | 65.90535-0001 | Nut | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 6 | 65.08901-0063 | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 7 | 65.90201-0143 | Bolt | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| 8 | 65.05701-6081 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 65.97401-0110A | Clip | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 10 | 65.05701-6108 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 65.90020-0068 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 65.96601-0046B | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 13 | 06.01913-3114 | Bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 14 | 65.98103-0024A | Union | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15 | 65.91701-0086 | Spacer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 16 | 06.56190-0706 | Ring | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 17 | 65.98150-0044B | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 18 | 65.05701-5431 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 19 | 65.05701-5216 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | 06.78140-2408 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 21 | 65.96601-0067 | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 22 | 06.01913-3114 | Bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 23 | 65.05701-5412 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 24 | 65.98150-0085 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | 06.56190-0728 | Ring | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 26 | 65.90710-0230 | Spacer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 27 | 65.98130-0195A | Adapter | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 28 | 06.56190-0728 | Ring | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 29 | 65.05701-5216 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 30 | 65.96301-0382 | Hose | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 31 | 06.67020-0106 | Clamp | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
