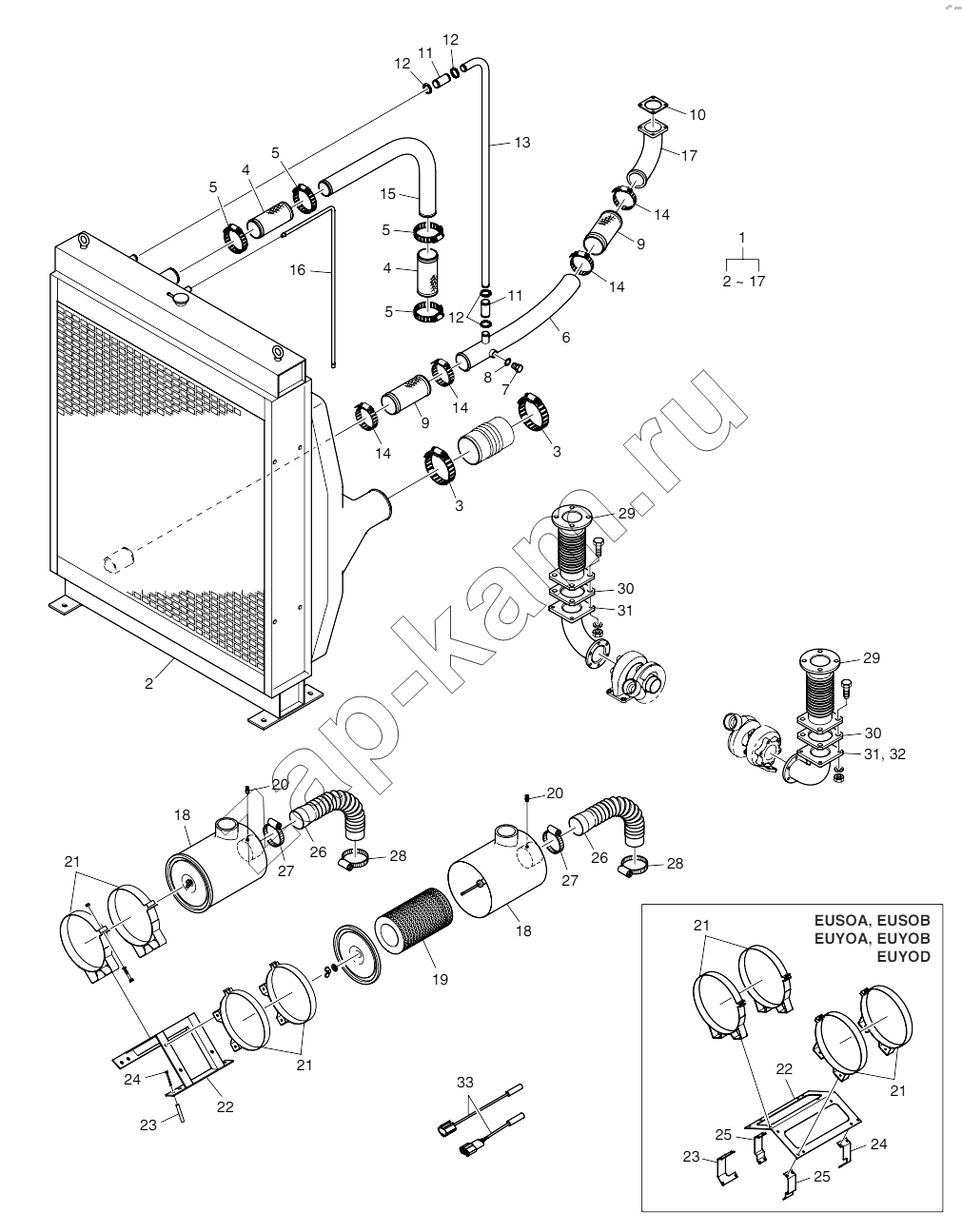

Accessory Parts
/ Doosan P222FE
/50.gif)
1
1
1
1
2
2
2
2
2
2
2
2
3
3
4
4
5
5
5
5
6
6
7
8
9
9
10
11
11
12
12
12
13
13
14
14
14
14
15
15
16
17
17
18
18
18
19
19
20
20
21
21
21
21
21
22
22
22
23
23
23
24
24
24
25
25
26
26
26
27
27
27
28
28
28
29
29
30
30
31
31
31
32
33
| Поз. | Артикул | Название детали | P158FE-EUZOA | P158FE-EUZOB | P180FE-EUZOA | P180FE-EUZOB | P222FE-EUZOA | P222FE-EUZOB | P222FE-EUZOD | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.06100-8017 | Radiator and inter cooler assy | 1 | 1 | ||||||
| 1 | 65.06100-8005 | Radiator and inter cooler assy | 1 | 1 | ||||||
| 1 | 65.06100-8010 | Radiator and inter cooler assy | 1 | 1 | ||||||
| 1 | 65.06100-8011 | Radiator and inter cooler assy | 1 | |||||||
| 2 | 65.06101-7034 | Radiator | 1 | 1 | ||||||
| 2 | 65.06101-7031 | Radiator | 1 | |||||||
| 2 | 65.06101-7043 | Radiator | 1 | 1 | ||||||
| 2 | 65.06101-7027 | Radiator | 1 | 1 | ||||||
| 2 | 65.06101-7016 | Radiator | 1 | 1 | ||||||
| 2 | 65.06101-7026 | Radiator | 1 | 1 | ||||||
| 2 | 65.06101-7015 | Radiator | 1 | 1 | ||||||
| 3 | 65.97401-6040 | Clip | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 4 | 04.27415-0415 | Hose | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 5 | 06.67020-0113 | Clamp | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 6 | 65.06301-5178 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 6 | 65.06301-5368 | Pipe | 1 | |||||||
| 7 | 06.08092-2406 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 06.56190-0713 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 04.27415-0315 | Hose | 2 | 2 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 65.06903-0030 | Gasket | 1 | 1 | ||||||
| 11 | 04.27405-1113 | Hose | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 12 | 06.67020-0106 | Clamp | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 13 | 65.06301-0231 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 13 | 65.06301-0292 | Pipe | 1 | |||||||
| 14 | 06.67020-0112 | Clamp | 4 | 4 | 2 | 2 | 2 | 2 | 2 | |
| 15 | 65.06301-0212 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 15 | 65.06301-0291 | Pipe | 1 | |||||||
| 16 | 65.06301-0287 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 17 | 65.06301-5199 | Pipe | 1 | 1 | ||||||
| 18 | 65.08300-7007 | Air cleaner assy | 2 | 2 | 2 | 2 | 2 | |||
| 18 | 65.08300-7008 | Air cleaner assy | 2 | 2 | ||||||
| 19 | 65.08304-6005 | Element | 1 | 1 | 1 | 1 | 1 | |||
| 19 | 65.08304-6006 | Element | 1 | 1 | ||||||
| 20 | 67.16250-6003 | Indicator | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 21 | 65.08342-5009 | Band | 4 | 4 | ||||||
| 21 | 65.08342-5007 | Band | 4 | 4 | 4 | 4 | 4 | |||
| 22 | 65.08340-0011 | Bracket | 1 | 1 | 1 | 1 | 1 | |||
| 22 | 65.08340-5008 | Bracket | 1 | 1 | ||||||
| 23 | 65.08340-0010 | Bracket | 1 | 1 | 1 | 1 | 1 | |||
| 23 | 65.91701-0174 | Spacer | 4 | 4 | ||||||
| 24 | 06.01013-9135 | Bolt | 4 | 4 | ||||||
| 24 | 65.08340-0012 | Bracket | 1 | 1 | 1 | 1 | 1 | |||
| 25 | 65.08340-0013 | Bracket | 2 | 2 | 2 | 2 | 2 | |||
| 26 | 65.08310-0007 | Hose | 2 | 2 | ||||||
| 26 | 65.08310-0010 | Hose | 2 | 2 | 2 | 2 | 2 | |||
| 27 | 06.67020-0112 | Clamp | 2 | 2 | ||||||
| 27 | 06.67020-0116 | Clamp | 2 | 2 | 2 | 2 | 2 | |||
| 28 | 06.67020-0117 | Clamp | 2 | 2 | 2 | 2 | 2 | |||
| 28 | 06.67020-0115 | Clamp | 2 | 2 | ||||||
| 29 | 65.15211-5008 | Bellows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 30 | 65.15901-0010 | Gasket | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 31 | 65.08112-5036 | Joint elbow | 2 | 2 | ||||||
| 31 | 65.08112-5027 | Joint elbow | 1 | 1 | 2 | 2 | 2 | |||
| 32 | 65.08112-5035 | Joint elbow | 1 | 1 | ||||||
| 33 | 65.29101-6164 | Electric wire assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
