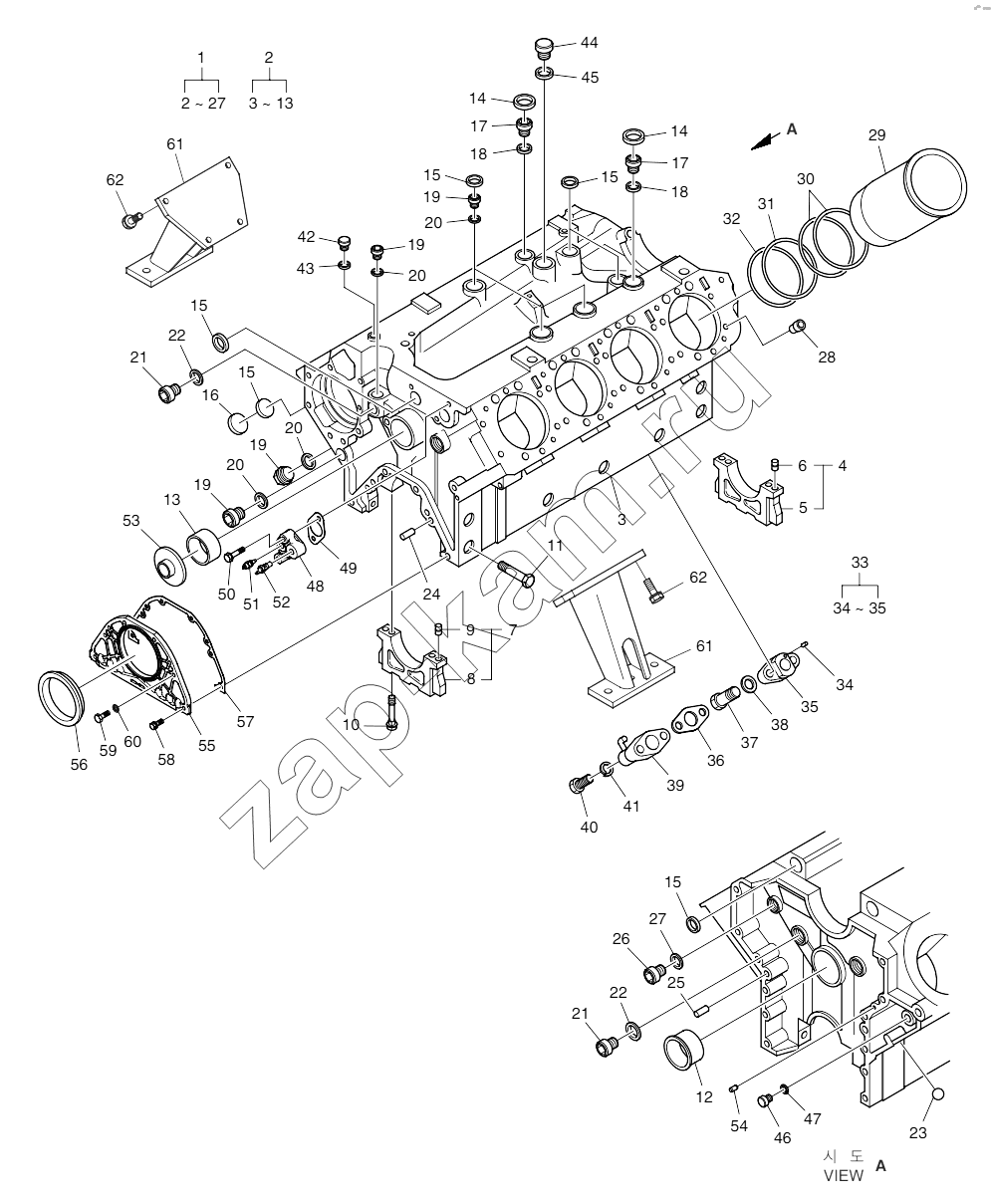

Cylinder Block
/ Doosan P222FE
/1.gif)
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
15
15
15
16
17
17
18
18
19
19
19
19
20
20
20
20
21
21
22
22
23
24
25
26
27
27
28
29
30
31
32
33
34
34
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
61
62
62
| Поз. | Артикул | Название детали | P158FE-EUZOA | P158FE-EUZOB | |
|---|---|---|---|---|---|
| 1 | 65.01101-6819G | Cylinder block assy | 1 | 1 | |
| 2 | 65.01101-6806G | Block | 1 | 1 | |
| 3 | 65.01101-0387F | Block | 1 | 1 | |
| 4 | 65.01105-6007 | Bearing cap assy | 1 | 1 | |
| 5 | 65.01105-1053 | Cap | 1 | 1 | |
| 6 | 65.91301-0071 | Pin | 2 | 2 | |
| 7 | 65.01105-6013A | Bearing cap assy | 4 | 4 | |
| 8 | 65.01105-1162C | Cap | 1 | 1 | |
| 9 | 06.22022-3061 | Pin | 2 | 2 | |
| 10 | 65.90020-0293B | Bolt | 10 | 10 | |
| 11 | 06.01494-4316 | Bolt | 10 | 10 | |
| 12 | 65.04410-0018 | Bush | 1 | 1 | |
| 13 | 65.04410-0078 | Bush | 4 | 4 | |
| 14 | 06.15090-2319 | Plug | 2 | 2 | |
| 15 | 65.91606-0039 | Plug | 10 | 10 | |
| 16 | 65.91606-0037 | Plug | 2 | 2 | |
| 17 | 65.90310-0132 | Screw | 2 | 2 | |
| 18 | 06.56190-0718 | Ring | 2 | 2 | |
| 19 | 65.90310-0149A | Screw | 6 | 6 | |
| 20 | 06.56190-0726 | Ring | 6 | 6 | |
| 21 | 65.90310-0134 | Screw | 4 | 4 | |
| 22 | 06.56190-0732 | Ring | 4 | 4 | |
| 23 | 06.31641-0615 | Ball | 1 | 1 | |
| 24 | 06.22022-1063 | Pin | 2 | 2 | |
| 25 | 06.22022-3563 | Pin | 2 | 2 | |
| 26 | 65.90310-0131 | Screw | 1 | 1 | |
| 27 | 06.56190-0713 | Ring | 1 | 1 | |
| 28 | 65.91701-0274 | Pin | 16 | 16 | |
| 29 | 65.01201-0312C | Liner | 8 | 8 | |
| 30 | 65.96501-0059 | O-ring | 16 | 16 | |
| 31 | 65.96501-0082 | O-ring | 8 | 8 | |
| 32 | 65.96501-0078 | O-ring | 8 | 8 | |
| 33 | 65.01601-2016A | Flange assy | 8 | 8 | |
| 34 | 06.22180-0804 | Pin | 1 | 1 | |
| 35 | 65.01601-0007A | Flange | 1 | 1 | |
| 36 | 65.96601A0237 | Gasket | 8 | 8 | |
| 37 | 65.98150-0051 | Screw | 8 | 8 | |
| 38 | 06.56190-0706 | Ring | 8 | 8 | |
| 39 | 65.01601-5070 | Oil spray nozzle assy | 8 | 8 | |
| 40 | 65.90001-0129 | Bolt | 16 | 16 | |
| 41 | 06.16044-0208 | Washer | 16 | 16 | |
| 42 | 65.90310-0135 | Screw | 1 | 1 | |
| 43 | 06.56190-0706 | Ring | 1 | 1 | |
| 44 | 06.08040-2214 | Screw | 1 | 1 | |
| 45 | 06.56190-0739 | Ring | 1 | 1 | |
| 46 | 65.90310-0135 | Screw | 1 | 1 | |
| 47 | 06.56190-0706 | Ring | 1 | 1 | |
| 48 | 65.06312-0012 | Flange | 1 | 1 | |
| 49 | 65.96601-0054 | Gasket | 1 | 1 | |
| 50 | 06.01913-3220 | Bolt | 2 | 2 | |
| 51 | 66.27435-6008 | Switch | 1 | 1 | |
| 52 | 65.27405-5005 | Sensor | 1 | 1 | |
| 53 | 65.91605-0013 | Cover | 1 | 1 | |
| 54 | 65.90302-0056 | Plug | 1 | 1 | |
| 55 | 65.01501-5017D | Holder | 1 | 1 | |
| 56 | 65.01510-0153A | Seal | 1 | 1 | |
| 57 | 65.01905-0032 | Gasket | 1 | 1 | |
| 58 | 06.01923-3116 | Bolt | 2 | 2 | |
| 59 | 06.01283-7115 | Bolt | 4 | 4 | |
| 60 | 06.16044-0210 | Washer | 4 | 4 | |
| 61 | 65.41530-5080A | Bracket | 2 | 2 | |
| 62 | 06.01913-3318 | Bolt | 8 | 8 |
