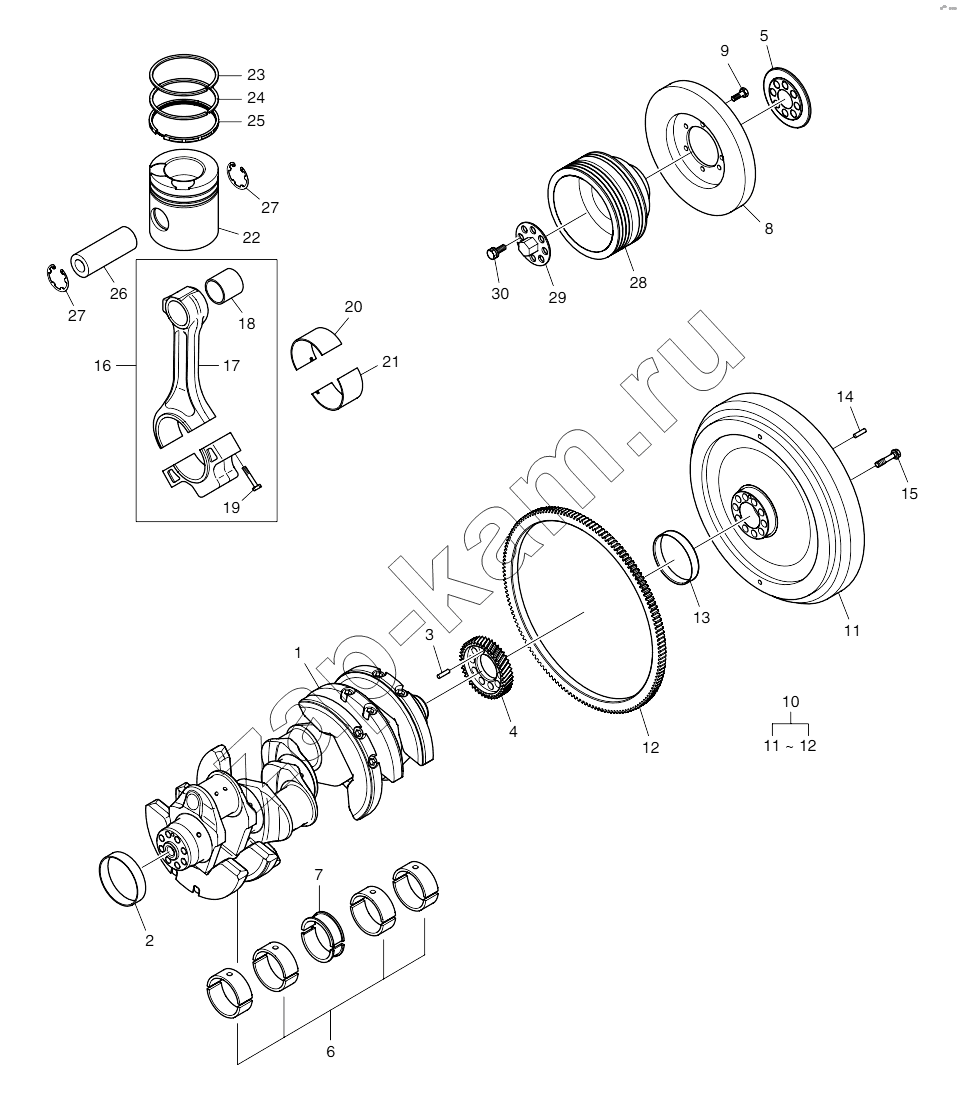

Driving System
/ Doosan P222FE
/8.gif)
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
29
30
| Поз. | Артикул | Название детали | P158FE-EUZOA | P158FE-EUZOB | |
|---|---|---|---|---|---|
| 1 | 65.02101-7108A | Crank shaft assy | 1 | 1 | |
| 2 | 65.02130-0001 | Ring | 1 | 1 | |
| 3 | 06.22022-3065 | Pin | 1 | 1 | |
| 4 | 65.02115-0066 | Gear | 1 | 1 | |
| 5 | 65.01505-0007 | Ring | 1 | 1 | |
| 6 | 65.01110-6529 | Bearing | 4 | 4 | |
| 7 | 65.01111-6539 | Washer | 1 | 1 | |
| 8 | 65.02201-7032 | Damper | 1 | 1 | |
| 9 | 65.90020-0062B | Bolt | 6 | 6 | |
| 10 | 65.02301-5014C | Flywheel assy | 1 | 1 | |
| 11 | 65.02301-0303E | Flywheel | 1 | 1 | |
| 12 | 65.02310-0073D | Gear | 1 | 1 | |
| 13 | 65.02130-0002 | Ring | 1 | 1 | |
| 14 | 65.91303-0005 | Pin | 1 | 1 | |
| 15 | 65.90020-0127 | Bolt | 10 | 10 | |
| 16 | 65.02401-6031 | Connecting rod assy | 8 | 8 | |
| 17 | 65.02401-0018 | Rod | 1 | 1 | |
| 18 | 65.02405-0008 | Bush | 1 | 1 | |
| 19 | 65.02411-0008 | Bolt | 2 | 2 | |
| 20 | 65.02410-0320 | Bearing | 8 | 8 | |
| 21 | 65.02410-0200 | Bearing | 8 | 8 | |
| 22 | 65.02501-0707 | Piston | 8 | 8 | |
| 23 | 65.02503-0130 | Ring | 8 | 8 | |
| 24 | 65.02503-0131 | Ring | 8 | 8 | |
| 25 | 65.02503-0678 | Ring | 8 | 8 | |
| 26 | 65.02502-0081 | Pin | 8 | 8 | |
| 27 | 65.90815-0022A | Ring | 16 | 16 | |
| 28 | 65.02601-0226 | Pulley | 1 | 1 | |
| 29 | 65.99710-5003 | Plate | 1 | 1 | |
| 30 | 06.02106-0824 | Bolt | 8 | 8 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
