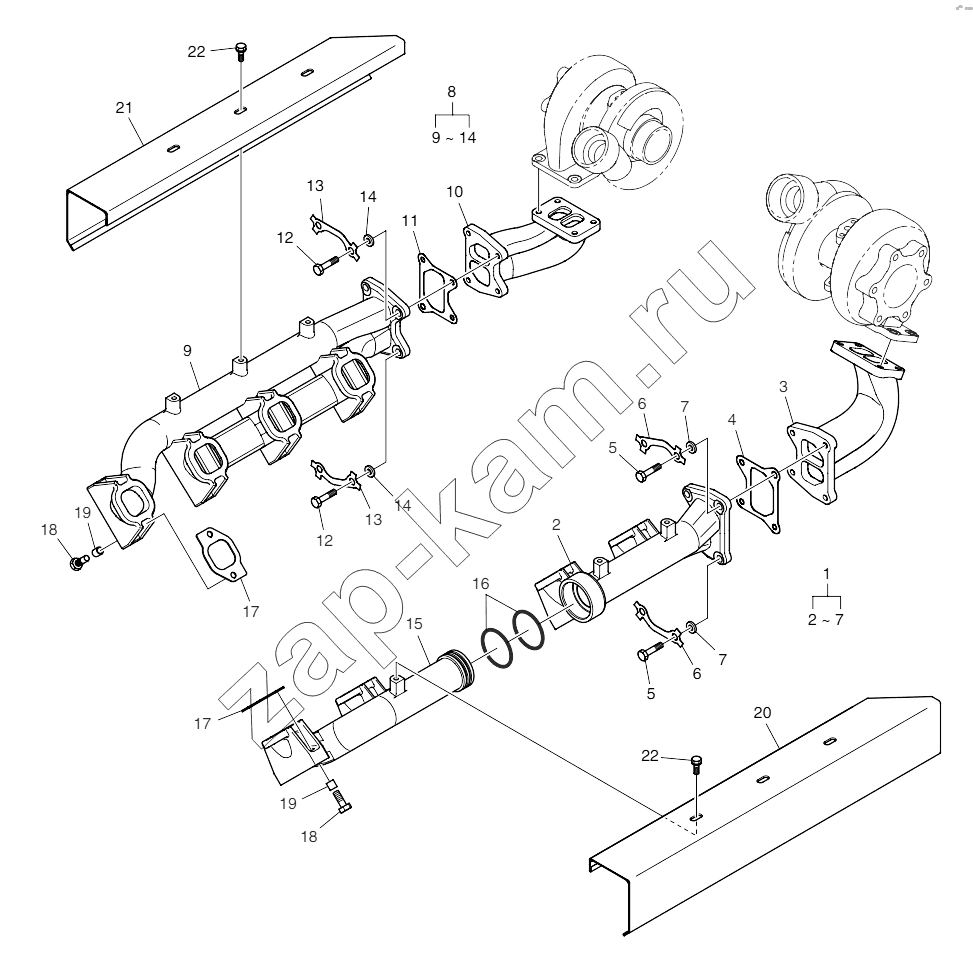

Exhaust Manifold
/ Doosan P222FE
/26.gif)
1
2
2
3
4
5
5
6
6
7
7
7
8
9
9
10
11
12
12
13
13
14
14
14
15
16
17
17
18
18
19
19
20
21
22
22
| Поз. | Артикул | Название детали | P158FE-EUZOA | P158FE-EUZOB | Цена | |
|---|---|---|---|---|---|---|
| 1 | 65.08100-6086 | Exhaust manifold assy | 1 | 1 | - | |
| 2 | 65.08101-0213 | Manifold | 1 | 1 | - | |
| 3 | 65.08101-0150 | Flange | 1 | 1 | - | |
| 4 | 65.08901-0060 | Gasket | 1 | 1 | - | |
| 5 | 65.90001-0157 | Bolt | 4 | 4 | - | |
| 6 | 65.90801-0013 | Washer | 2 | 2 | - | |
| 7 | 65.90701-0054 | Washer | 4 | 4 | - | |
| 8 | 65.08100-6085 | Exhaust manifold assy | 1 | 1 | - | |
| 9 | 65.08101-0211 | Manifold | 1 | 1 | - | |
| 10 | 65.08101-0151 | Flange | 1 | 1 | - | |
| 11 | 65.08901-0060 | Gasket | 1 | 1 | - | |
| 12 | 65.90001-0157 | Bolt | 4 | 4 | - | |
| 13 | 65.90801-0013 | Washer | 2 | 2 | - | |
| 14 | 65.90701-0054 | Washer | 4 | 4 | - | |
| 15 | 65.08101-0212 | Manifold | 1 | 1 | - | |
| 16 | 65.98701-0005 | Ring | 2 | 2 | - | |
| 17 | 65.08901-0046 | Gasket | 8 | 8 | - | |
| 18 | 65.90020-0077 | Bolt | 16 | 16 | - | |
| 19 | 65.91701-0541 | Spacer | 16 | 16 | - | |
| 20 | 65.08120-5048 | Screen | 1 | 1 | - | |
| 21 | 65.08120-5049 | Screen | 1 | 1 | - | |
| 22 | 06.01923-3111 | Bolt | 6 | 6 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
