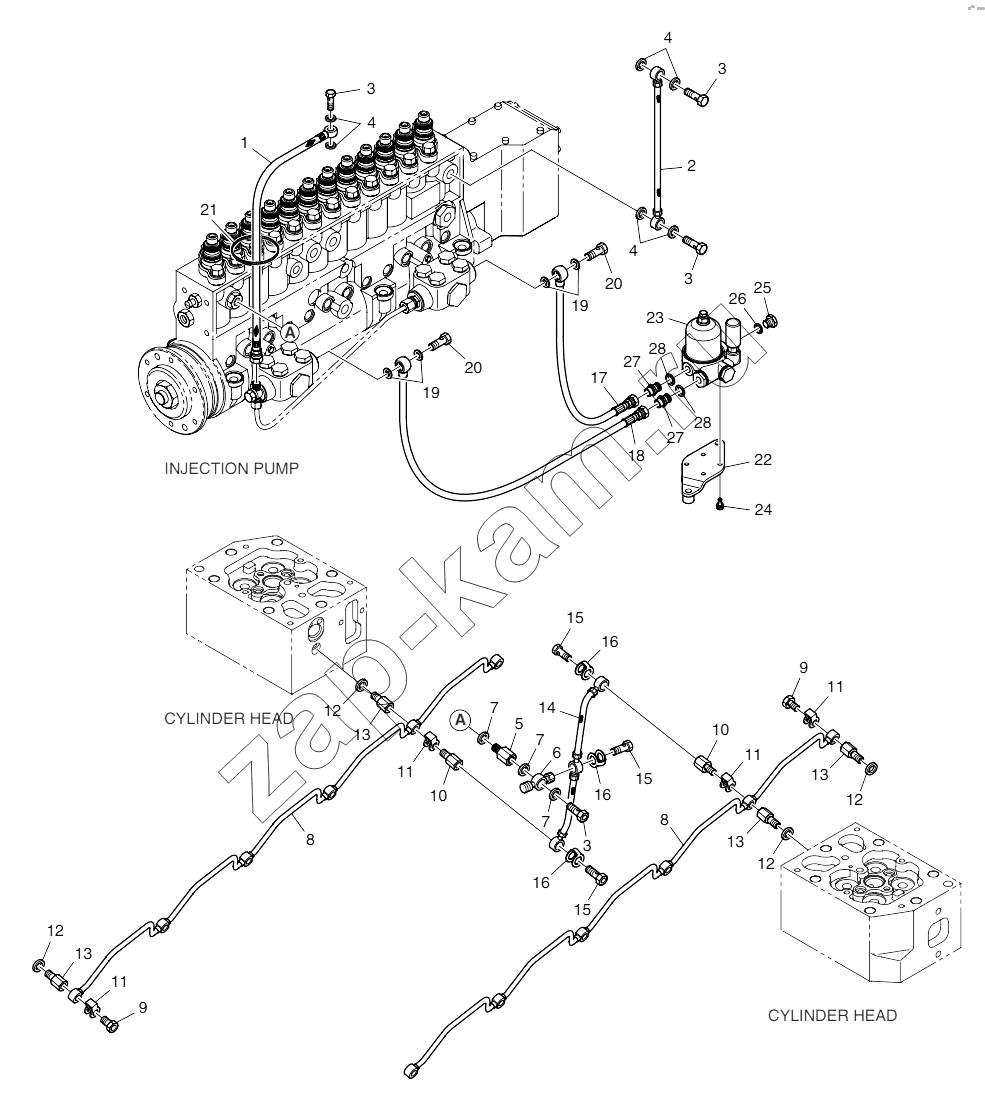

Fuel Pipe
/ Doosan P222FE
/44.gif)
1
2
3
3
3
3
4
4
4
5
6
7
7
7
8
8
9
9
10
10
11
11
11
11
12
12
12
12
13
13
13
13
14
15
15
15
16
16
16
17
18
19
19
20
20
21
22
23
24
25
26
27
27
28
28
| Поз. | Артикул | Название детали | P222FE-EUZOA | P222FE-EUZOB | P222FE-EUZOD | Цена | |
|---|---|---|---|---|---|---|---|
| 1 | 65.96340-5029 | Hose | 1 | 1 | 1 | - | |
| 2 | 65.96340-5021 | Hose | 1 | 1 | 1 | - | |
| 3 | 06.78144-2204 | Screw | 4 | 4 | 4 | - | |
| 4 | 06.56190-0706 | Ring | 6 | 6 | 6 | - | |
| 5 | 65.98130-0202 | Adapter | 1 | 1 | 1 | - | |
| 6 | 65.98101-0027 | Union | 1 | 1 | 1 | - | |
| 7 | 65.96507-0043 | Ring | 3 | 3 | 3 | - | |
| 8 | 65.12301-5280 | Pipe | 2 | 2 | 2 | - | |
| 9 | 65.98150-0042A | Screw | 10 | 10 | 10 | - | |
| 10 | 65.98130-0155 | Adapter | 2 | 2 | 2 | - | |
| 11 | 65.96507-0055 | Ring | 12 | 12 | 12 | - | |
| 12 | 06.56180-0712 | Ring | 12 | 12 | 12 | - | |
| 13 | 65.98130-0154 | Adapter | 12 | 12 | 12 | - | |
| 14 | 65.96341-0094 | Hose | 1 | 1 | 1 | - | |
| 15 | 65.98150-0042A | Screw | 3 | 3 | 3 | - | |
| 16 | 65.96507-0055 | Ring | 3 | 3 | 3 | - | |
| 17 | 65.96340-5072 | Hose | 1 | 1 | 1 | - | |
| 18 | 65.96340-5073 | Hose | 1 | 1 | 1 | - | |
| 19 | 06.56190-0706 | Ring | 4 | 4 | 4 | - | |
| 20 | 06.78144-2204 | Screw | 2 | 2 | 2 | - | |
| 21 | 65.97460-0001 | Band | 2 | 2 | 2 | - | |
| 22 | 65.12540-5032 | Bracket | 1 | 1 | 1 | - | |
| 23 | 65.12501-7036 | Fuel filter assy | 1 | 1 | 1 | - | |
| 24 | 06.01923-2912 | Bolt | 4 | 4 | 4 | - | |
| 25 | 06.08092-2406 | Screw | 1 | 1 | 1 | - | |
| 26 | 06.56190-0712 | Ring | 1 | 1 | 1 | - | |
| 27 | 06.78190-0206 | Screw | 2 | 2 | 2 | - | |
| 28 | 06.56190-0706 | Ring | 2 | 2 | 2 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
