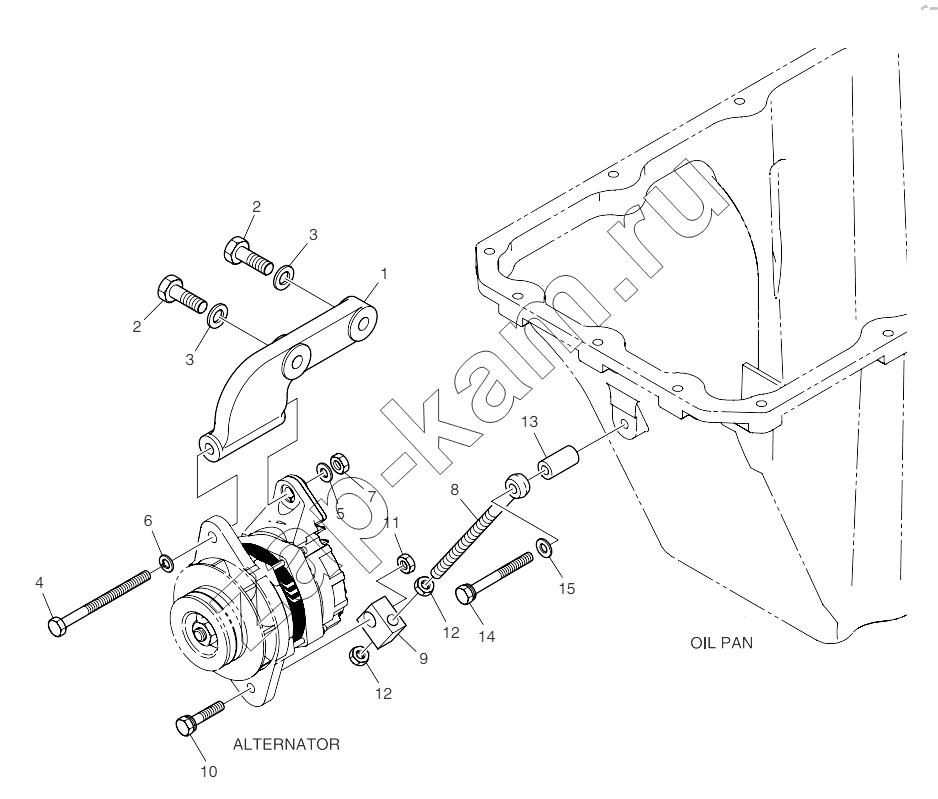

Alternator Mounting
/ Doosan P222LE
1
2
2
3
3
4
5
6
7
8
9
10
11
12
12
13
14
15
| Поз. | Артикул | Название детали | P222LE-EAYOA | P222LE-EAYOC | P222LE-EAYQA | P222LE1-EAYOB | P222LES-EAYOE | P222LES-EAYOF | P222LES-EAYQE | Цена | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.19102-0071 | Bracket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 2 | 06.01284-7420 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 3 | 06.16731-2110 | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 4 | 65.90001-0002A | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 5 | 06.15010-2313 | Washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 6 | 06.16731-2109 | Washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 7 | 06.11063-9216 | Nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 8 | 65.90441-0061 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 9 | 65.19107-0005 | Piece | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 10 | 06.01913-3221 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 11 | 06.11063-8215 | Nut | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 12 | 06.11063-8216 | Nut | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 13 | 65.91701-0066 | Spacer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 14 | 06.01913-3229 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 15 | 06.15010-2312 | Washer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
