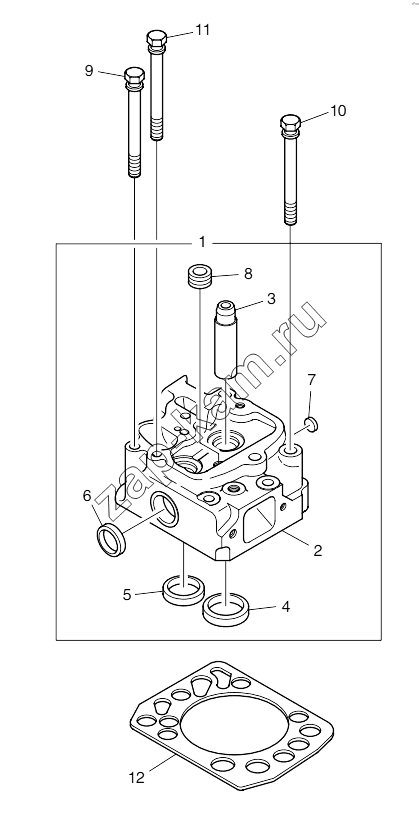

Cylinder Head
/ Doosan P222LE
1
2
3
4
5
6
7
8
9
10
11
12
| Поз. | Артикул | Название детали | P222LE-EAYOA | P222LE-EAYOC | P222LE-EAYQA | P222LE1-EAYOB | P222LEII-EAYOD | P222LES-EAYOE | P222LES-EAYOF | P222LES-EAYQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.03101-6067С | Cylinder head assy | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| 2 | 65.03101—1047 В | Head | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.03201-1040 | Guide | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 4 | 65.03203-0242 | Seat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5 | 65.03203-0184 | Seat | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 65.91606-0037 | Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 65.91606-0041 | Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 06.08023-0207 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 65.90020-0268 | Bolt | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |
| 10 | 65.90020-0269 | Bolt | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | |
| 11 | 65.90020-0270 | Bolt | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| 12 | 65.03901-0069 | Gasket | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
