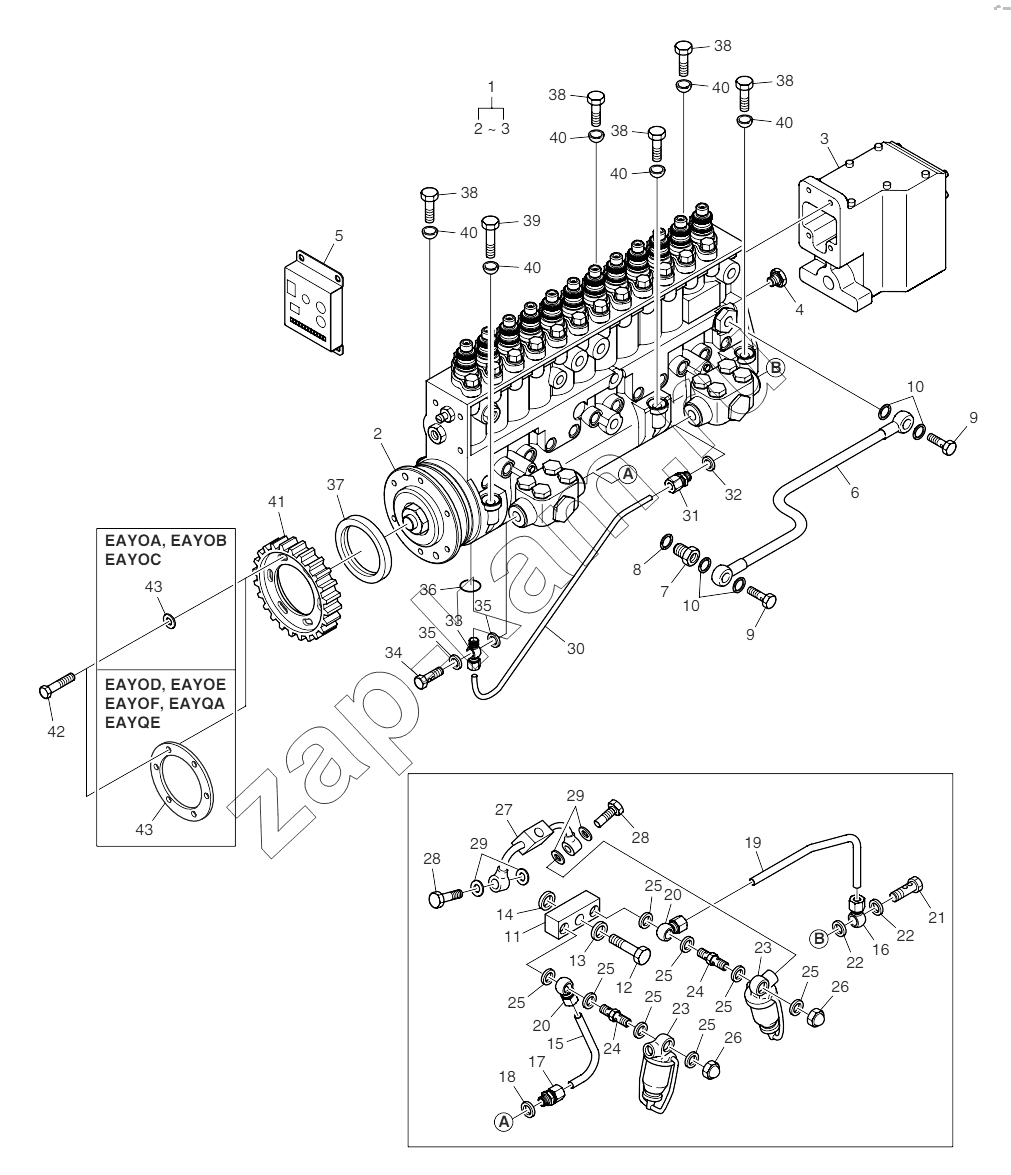

Injection Pump
/ Doosan P222LE
1
2
2
3
3
4
5
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
24
25
25
25
25
25
25
25
25
26
26
27
28
28
29
29
30
31
32
33
34
35
35
36
37
38
38
38
38
38
39
40
40
40
40
40
40
41
42
43
43
| Поз. | Артикул | Название детали | P222LE-EAYOA | P222LE-EAYOC | P222LE-EAYQA | P222LE1-EAYOB | P222LEII-EAYOD | P222LES-EAYOE | P222LES-EAYOF | P222LES-EAYQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 65.90720-0024 | 65.90720-0024 | Washer | 1 | 1 | 1 | 1 | 1 | ||||
| 1 | 65.11101-7414B | Fuel injection pump assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 65.11101-7303 | Fuel injection pump assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.11501-7006B | Governor assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | 65.90310-0129 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5 | 65.11220-7008 | Controller | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 5 | 65.11220-7009 | Controller | 1 | 1 | |||||||
| 6 | 65.05701-5360 | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 65.98130-0151 | Adapter | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 06.56190-0726 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 06.78144-2204 | Screw | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 10 | 06.56190-0706 | Ring | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 11 | 65.12340-0001 | Piece | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 12 | 06.01494-4407 | BOLT;HEXM14X1.5X40 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 13 | 06.16044-0213 | Washer | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 14 | 06.15010-2316 | Washer | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 15 | 65.12301-0001A | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 16 | 65.98103-6001A | Union | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 17 | 06.71010-0213 | Fitting | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 18 | 06.56190-0706 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 19 | 65.12301-0005B | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 20 | 65.98103-6001A | Union | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 21 | 06.78144-2204 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 22 | 06.56190-0706 | Ring | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 23 | 65.12501-7019B | Fuel filter assy | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 24 | 65.98150-0064 | Screw | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 25 | 06.56190-0706 | Ring | 8 | 8 | 8 | 8 | 8 | 8 | |||
| 26 | 06.12172-9316 | Nut | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 27 | 65.12301-5831B | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | |||
| 28 | 06.78144-2204 | Screw | 2 | 2 | 2 | 2 | 2 | 2 | |||
| 29 | 06.56190-0706 | Ring | 4 | 4 | 4 | 4 | 4 | 4 | |||
| 30 | 65.12301-0003A | Pipe | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 31 | 06.71010-0213 | Fitting | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 32 | 06.56190-0706 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 33 | 65.98103-6002A | Union | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 34 | 06.78144-2204 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 35 | 06.56190-0706 | Ring | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 36 | 51.96501-0322 | O-ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 37 | 51.96501-0295 | O-ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 38 | 65.90001-0146A | Bolt | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 39 | 06.01014-7225 | Bolt | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 40 | 06.15061-0103 | Washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 41 | 65.11301-0115A | Gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 42 | 06.01284-7112 | Bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| 43 | 65.90710-0001A | Spacer | 6 | 6 | 6 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
