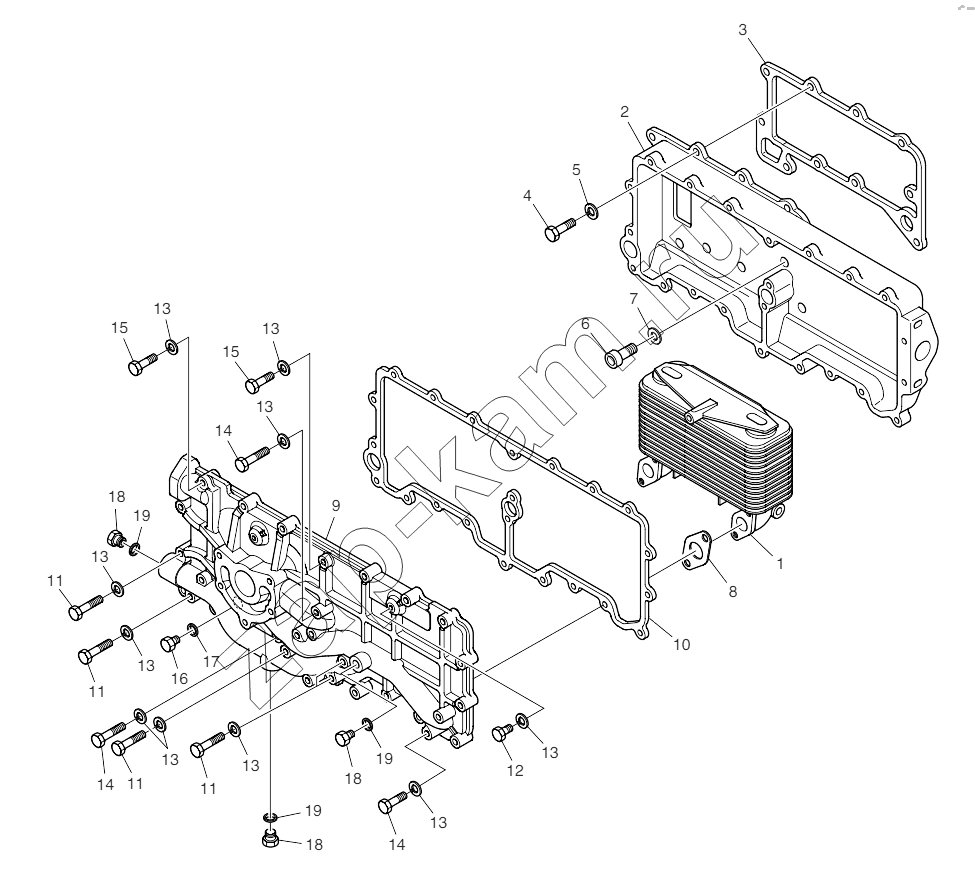

Oil Cooler
/ Doosan P222LE
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
13
13
13
13
13
13
13
13
14
14
14
15
15
16
17
18
18
18
19
19
19
| Поз. | Артикул | Название детали | P222LE-EAYOA | P222LE-EAYOC | P222LE-EAYQA | P222LE1-EAYOB | P222LEII-EAYOD | P222LES-EAYOE | P222LES-EAYOF | P222LES-EAYQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.05601-7135 | Oil cooler assy | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 2 | 65.05604-0028 | Housing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.05901-0014 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | 06.01284-7218 | Bolt | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 5 | 06.16044-0211 | Washer | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 6 | 65.90030-0001 | Bolt | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 7 | 65.90701-0091 | Washer | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 8 | 65.96601-0221B | Gasket | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| 9 | 65.05605-0036 | Head | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 65.05902A0041 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 06.01013-9116 | Bolt | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| 12 | 06.01283-7111 | Bolt | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 13 | 06.16044-0210 | Washer | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | |
| 14 | 06.01913-3123 | Bolt | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 15 | 06.01283-7118 | Bolt | 17 | 17 | 17 | 17 | 17 | 17 | 17 | 17 | |
| 16 | 06.08092-2404 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 17 | 06.56190-0706 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 18 | 65.90310-0133 | Screw | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 19 | 06.56190-0726 | Ring | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
