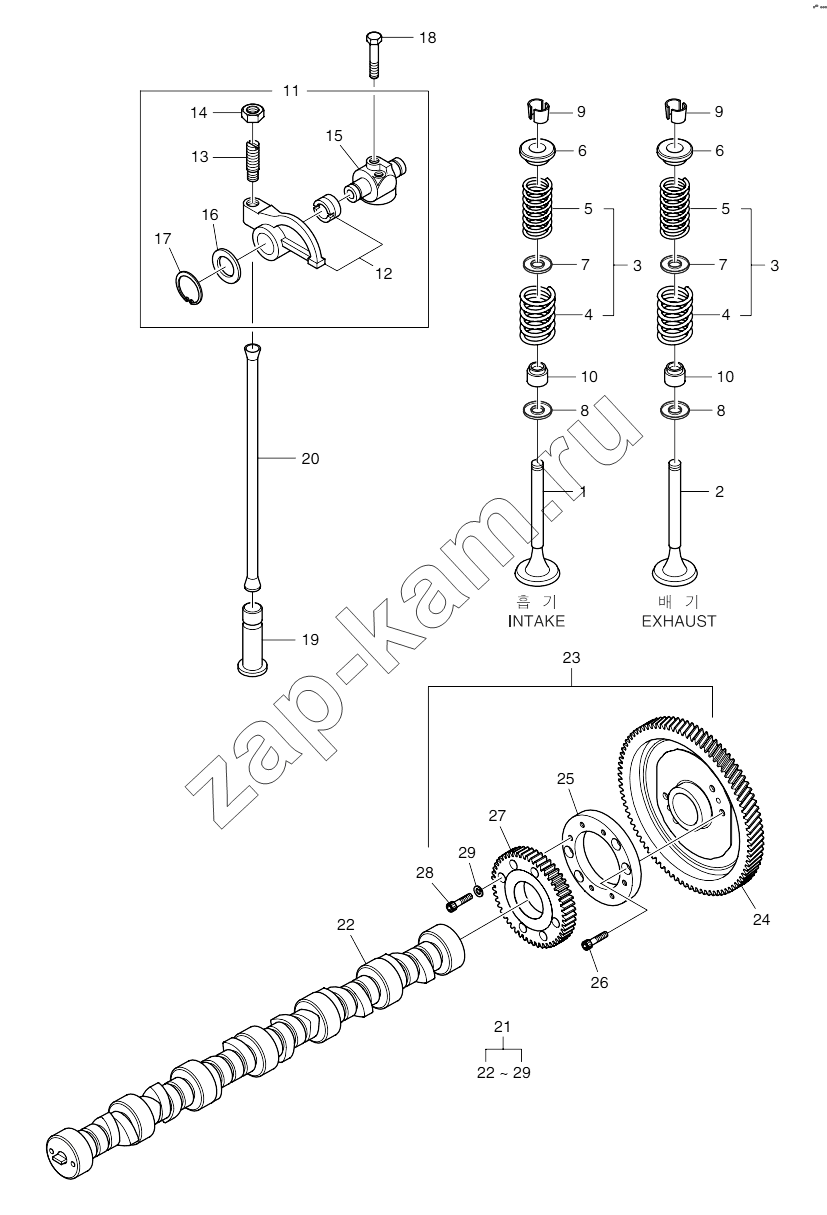

Timing System
/ Doosan P222LE
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
29
| Поз. | Артикул | Название детали | P222LE-EAYOA | P222LE-EAYOC | P222LE-EAYQA | P222LE1-EAYOB | P222LEII-EAYOD | P222LES-EAYOE | P222LES-EAYOF | P222LES-EAYQE | Цена | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.04101-0375C | Valve | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | - | |
| 2 | 65.04101-0367C | Valve | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | - | |
| 3 | 65.04102-6007 | Valve spring assy | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | |
| 4 | 65.04102-0083A | Spring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 5 | 65.04102-0084A | Spring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 6 | 65.04103-0074 | Retainer | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | |
| 7 | 65.90701-0103 | Washer | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | |
| 8 | 65.90701-0104 | Washer | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | |
| 9 | 51.04104-0023 | Cotter | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | - | |
| 10 | 65.04902-0027 | Seal | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | |
| 11 | 65.04200-6029A | Rocker arm assy | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | - | |
| 12 | 65.04201-5020 | Arm | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 13 | 65.04205-0021A | Rocker arm screw kit | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 14 | 65.90501-0049 | Nut | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 15 | 65.04202-5035 | Retainer bracket assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 16 | 65.90701-0136B | Washer | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 17 | 06.29010-0120 | Ring | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - | |
| 18 | 65.90001-0146A | Bolt | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | |
| 19 | 65.04301-0079 | Tappet | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | |
| 20 | 65.04302-0026 | Rod | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | |
| 21 | 65.04401-6003A | Camshaft assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 22 | 65.04401-0443 | Camshaft | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 23 | 65.11300-6001B | Drive gear assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 24 | 65.04501-0097 | Gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 25 | 65.11121-0002A | Spacer | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 26 | 65.90030-0024 | Bolt | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | - | |
| 27 | 65.11301-0018A | Gear | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | |
| 28 | 06.02096-0412 | Bolt | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - | |
| 29 | 06.16110-0106 | Washer | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
