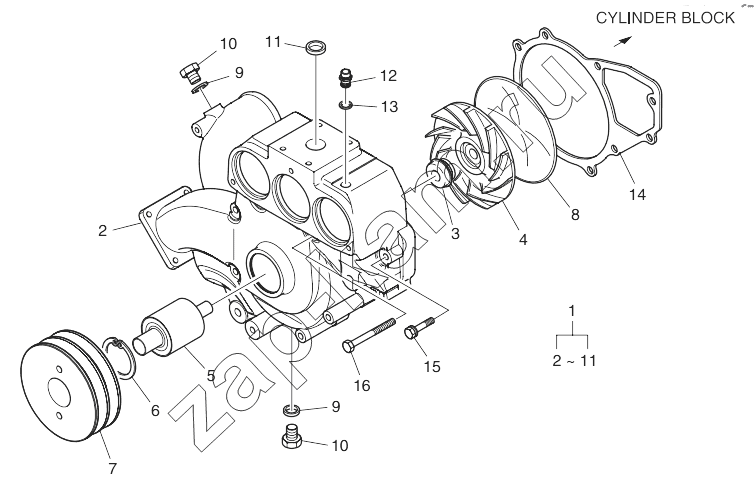

Water Pump
/ Doosan P222LE
1
2
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
| Поз. | Артикул | Название детали | P222LE-EAYOA | P222LE-EAYOC | P222LE-EAYQA | P222LE1-EAYOB | P222LEII-EAYOD | P222LES-EAYOE | P222LES-EAYOF | P222LES-EAYQE | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 65.06500-6183A | Water pump assy | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 65.06501-0082A | Housing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 65.06520-6007 | Seal | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | 65.06506-6001A | Impeller | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5 | 65.93410-0024 | Bearing | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 06.29020-0132 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 65.06503-0174 | Pulley | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 65.06512-0017A | Cover | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 06.56190-0709 | Ring | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 10 | 06.08092-2405 | Screw | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| 11 | 65.90302-0026 | Plug | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 65.98131-0060 | Screw | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 13 | 06.56190-0706 | Ring | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 14 | 65.06901A0074 | Gasket | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15 | 06.01923-3122 | Bolt | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 16 | 06.01913-3128 | Bolt | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
