RATION GAS
/ FAW BF4M1013

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано BF4M1013 BF4M2012 BF6M1013FC BFM1013 CA 4DC2-10E4 (2012) CA 6DM2 (2012) CA 6DM2-39E4 CA 6DM2-42E51 CA498 CA4DF2 (2013) CA4DF3-13E3 CA6110 CA6DL2-37E4 CA6DL2-37E5 CA6DM2 CA6DM2 (2008)

Схема > Не выбрано CORE HOLE PLUG PRESSURESTAT PISTON COOL.NOZZLE RATION GAS CRANKCASE CRANKSHAFT AND BEARING CONNECTING ROD/PISTON PRESSURESTAT PTO-B GEAR CASE (1) GEAR CASE (2) CONNECTION HOUSING (1) CONNECTION HOUSING (2) CONNECTION HOUSING (3) FLYWHEEL WITH GEAR RIM ENGINE SUPPORT BRACKET OIL PUMP PULLEY/VIBRATION DAMPER HOUSING (1) HOUSING (2) HOUSING (3) COOLANT PUMP COOLANT PUMP SET NARROW V-BELTS FUEL PUMP GENERATOR (1) GENERATOR (2) AIR COMPRESSOR AIR COMPRESSOR LUBRICAT OIL LINE AIR COMPRESSOR COOLING WATER LINE (1) AIR COMPRESSOR COOLING WATER LINE (2) AIR COMPRESSOR COOLING WATER LINE (3) GEARED PUMP CYLINDER HEAD VALVE TRAIN (1) CYLINDER HEAD GLOW PLUG FUEL SUPPLY SYSTEM (1) SUSPENSION PLATE CHARGE AIR PIPE/EXHAUST PIPE (1) VALVE MECHAN.COVER PRESSURE REGULATOR TURBO CHARGER (1) SENSOR OIL SUCTION PIPE OIL PAN AND DIPSTICK SPIN-ON OIL FILTER SPIN-ON FUEL FILTER FAN AND VISCOUS FAN COUPL. SENSOR AND CABLE HARNESS WITH FEUP SYSTEM (1) STARTER OIL PRESSURE AND COOLANT TEMPERATURE SENSOR (WITHOUT CAN) AIR CONDITIONING

1

2

3

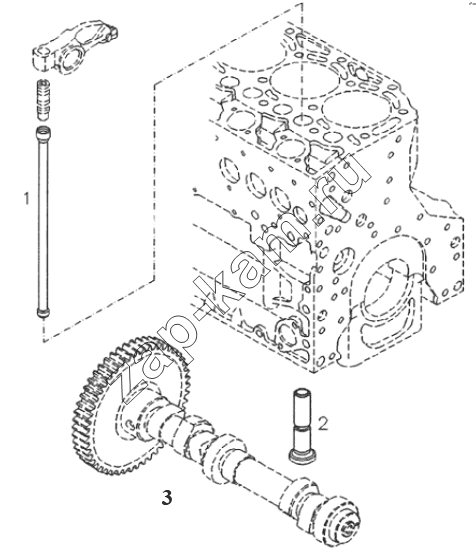

Поз.	Артикул		Название детали	Кол-во
1	1007050-52D		Толкатель в сборе	;
2	1007061-52D		Толкатель	;
3	F04501565		CAMSHAFT	;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
