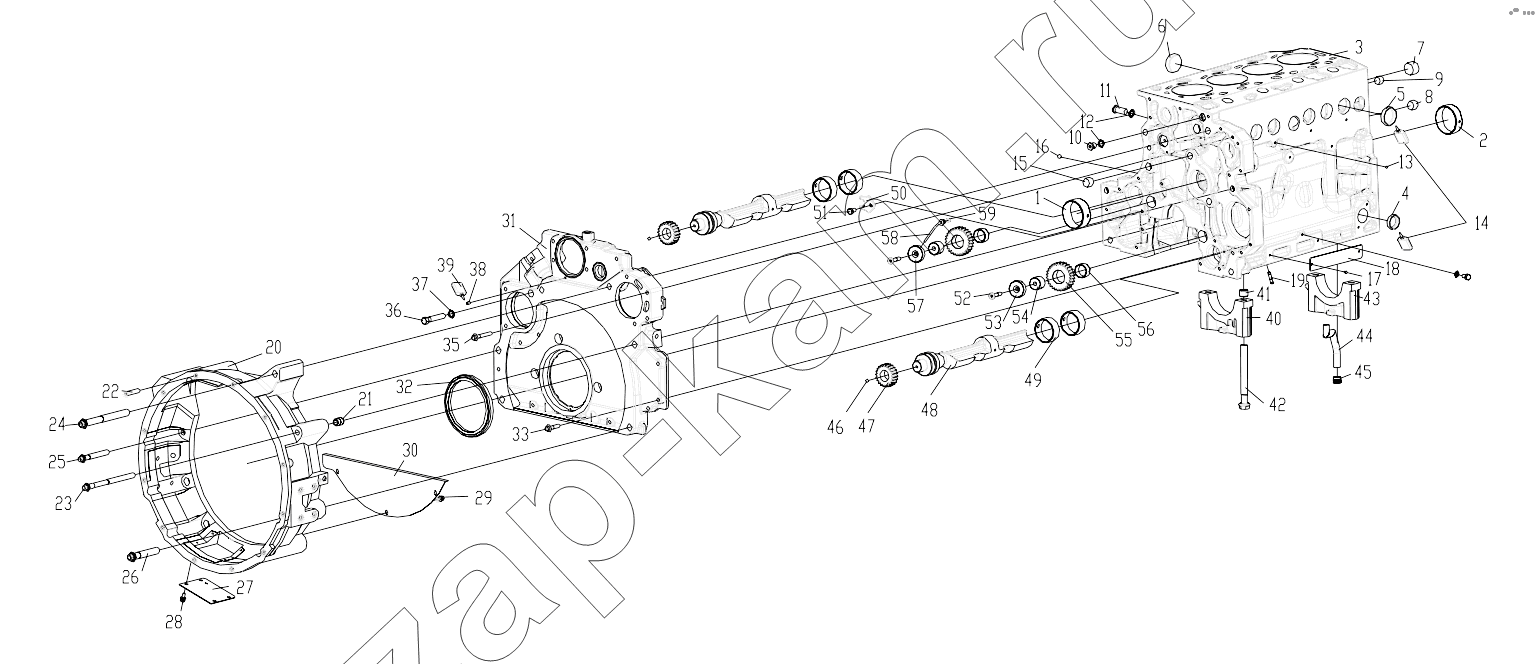

CRANKCASE AND CONNECTION HOUSING
/ FAW BF4M2012
JA1002-52D-4
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
35
38
39
40
41
42
43
44
44
45
45
46
47
48
48
48
48
49
49
50
50
51
52
53
53
54
54
55
55
55
55
56
56
57
57
58
59
59
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| JA1002-52D-4 | JA1002-52D-4 | Safety/lock.agentн | 1; | - | |
| 1 | 1006028-56D | Bearing bush | 1; | - | |
| 1 | 04250086 | Bearing bush | 1; | - | |
| 2 | 1006024-56D | Bearing bush | 4; | - | |
| 2 | 04251884 | Bearing bush | 4; | - | |
| 3 | 1002014-65D | Crankcase | 1; | - | |
| 4 | 1002620-52D | Core hole plug | 1; | - | |
| 5 | 1002623-52D | Core hole plug | 6; | - | |
| 6 | 1002620-52D | Core hole plug | 4; | - | |
| 7 | 01180890 | Screw plug | 1; | - | |
| 8 | 01180906 | Screw plug | 1; | - | |
| 9 | 01182031 | Screw plug | 2; | - | |
| 10 | 1002626-52D | Screw plug | 1; | - | |
| 11 | 1002622-52D | Screw plug | 2; | - | |
| 12 | 1104617-52D | Уплотнительная прокладка | 3; | - | |
| 13 | 1002621-52D | Ball | 10; | - | |
| 14 | JA1002-52D-3 | Safety/lock.agent | 1; | - | |
| 15 | 04226536 | Screw plug | 1; | - | |
| 16 | 1307649-52D | Ball | 1; | - | |
| 17 | 01174823 | Rivet | 2; | - | |
| 18 | 1002201B52D | Name plate | 1; | - | |
| 19 | 1004076-52D | Piston cool. Nozzle | 4; | - | |
| 19 | 04207521 | Piston cool. Nozzle | 4; | - | |
| 20 | 1002061-84D | Connection housing | 1; | - | |
| 21 | 1002064-52D | Bush | 2; | - | |
| 22 | CQ1201032TF36S | Stud | 12; | - | |
| 23 | 1002667-56D | Torx-head bolt | 1; | - | |
| 24 | 1002668-56D | Torx-head bolt | 1; | - | |
| 25 | 1002669-56D | Torx-head bolt | 1; | - | |
| 26 | 1002672-56D | Torx-head bolt | 3; | - | |
| 27 | 1002063-52D | Cover plate | 1; | - | |
| 28 | CQ1460616TF36 | Hexagon bolt washer assembly | 4; | - | |
| 29 | CQ1460612TF36 | Hexagon bolt washer assembly | 3; | - | |
| 30 | 1002071-56D | Cover plate | 1; | - | |
| 31 | 1002050-56D | Gear housing and lip seal | 1; | - | |
| 32 | 1005105B56D | Rot.shaft lip seal | 1; | - | |
| 32 | 04253332 | Rot.shaft lip seal | 1; | - | |
| 33 | 1009626-52D | Болт с шестигранной головкой и фланцем | 12; | - | |
| 35 | 1002614-56D | Hexagon bolt | 3; | - | |
| 38 | 1002653-52D | Set screw | 1; | - | |
| 39 | JA1002-52D-2 | Safety/lock.agent | 1; | - | |
| 40 | 1002022-56D | Thrust main bearing cap | 1; | - | |
| 41 | 1002024-56D | Bush | 10; | - | |
| 42 | 1002023-56D | Hexagon bolt | 10; | - | |
| 43 | 1002021-56D | Main bearing cap | 4; | - | |
| 44 | 1005295-65D | Bypass pipe assembly | 1; | - | |
| 44 | 04291215 | Bypass pipe assembly | 1; | - | |
| 45 | 04255998 | Bypass pipe joint | 1; | - | |
| 45 | 1005294-65D | Bypass pipe joint | 1; | - | |
| 46 | 1307649-52D | Ball | 2; | - | |
| 47 | 1005231-65D | Mass balanc. Shaft gear | 2; | - | |
| 48 | 04298246 | Mass balanc. Shaft | 2; | - | |
| 48 | 1005220-65D | Mass balanc. Shaft | 2; | - | |
| 48 | 04298244 | Mass balanc. Shaft | 2; | - | |
| 48 | 1005221-65D | Mass balanc. Shaft | 2; | - | |
| 49 | 04252834 | Bush | 4; | - | |
| 49 | 1005226-65D | Bush | 4; | - | |
| 50 | 04251810 | Thrust washer | 2; | - | |
| 50 | 1005234-65D | Thrust washer | 2; | - | |
| 51 | 1005627-65D | Hexagon bolt | 2; | - | |
| 52 | 1005658-65D | Hexagon screw | 2; | - | |
| 53 | 1005263-65D | Fastening ring | 1; | - | |
| 53 | 4255410 | Fastening ring | 1; | - | |
| 54 | 04288828 | Journal | 2; | - | |
| 54 | 1005251-65D | Journal | 2; | - | |
| 55 | 1005256-65D | Toothed gear | 2; | - | |
| 55 | 04255906 | Toothed gear | 2; | - | |
| 55 | 0425590) | Toothed gear | 2; | - | |
| 55 | 1005255-65D | Toothed gear | 2; | - | |
| 56 | 1006047-52D | Bush | 2; | - | |
| 56 | 04197518 | Bush | 2; | - | |
| 57 | 1005260-65D | Fastening ring | 1; | - | |
| 57 | 1005264-65D | Plain washer | 1; | - | |
| 58 | 1005265-65D | Lubricant feed line | 1; | - | |
| 59 | 1005668-65D | O-ring | 1; | - | |
| 59 | 01181582 | O-ring | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
