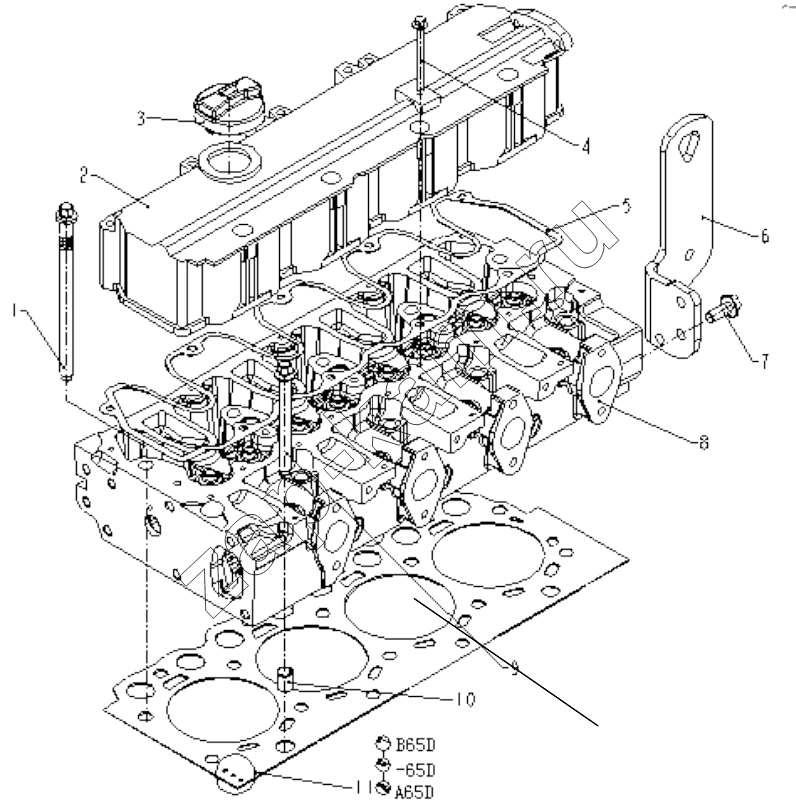

CYLINDER HEAD
/ FAW BF4M2012
1
1
2
2
3
4
5
5
6
7
8
9
9
10
11
11
11
11
11
11
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 1003046-56D | Cylinder head bolt | 5; | |
| 1 | 4251250 | Cylinder head bolt | 5; | |
| 2 | 1003040-65D | Valve mechan. Cover | 1; | |
| 2 | 4283394 | Valve mechan. Cover | 1; | |
| 3 | 1003050-52D | Add oil cover assembly | 1; | |
| 4 | 1008602-56D | Hexagon bolt | 9; | |
| 5 | 1003042B65D | Valve mechan. Cover gasket | 1; | |
| 5 | 1003042C65D | Valve mechan. Cover gasket | 1; | |
| 6 | 1003061-56D | Suspension plate | 1; | |
| 7 | 1023614-52D | Hexagon bolt | 3; | |
| 8 | 1003015-65D | Cylinder head sub-assembly-with core hole plug | 1; | |
| 9 | 1003047-56D | Cylinder head bolt | 13; | |
| 9 | 04251251 | Cylinder head bolt | 13; | |
| 10 | 01181405 | Clamping bush | 2; | |
| 11 | 1003090B65D | Cylinder head gasket | 1; | |
| 11 | 04289408 | Cylinder head gasket | 1; | |
| 11 | 1003090-65D | Cylinder head gasket | 1; | |
| 11 | 04289407 | Cylinder head gasket | 1; | |
| 11 | 1003090A65D | Cylinder head gasket | 1; | |
| 11 | 04289406 | Cylinder head gasket | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
