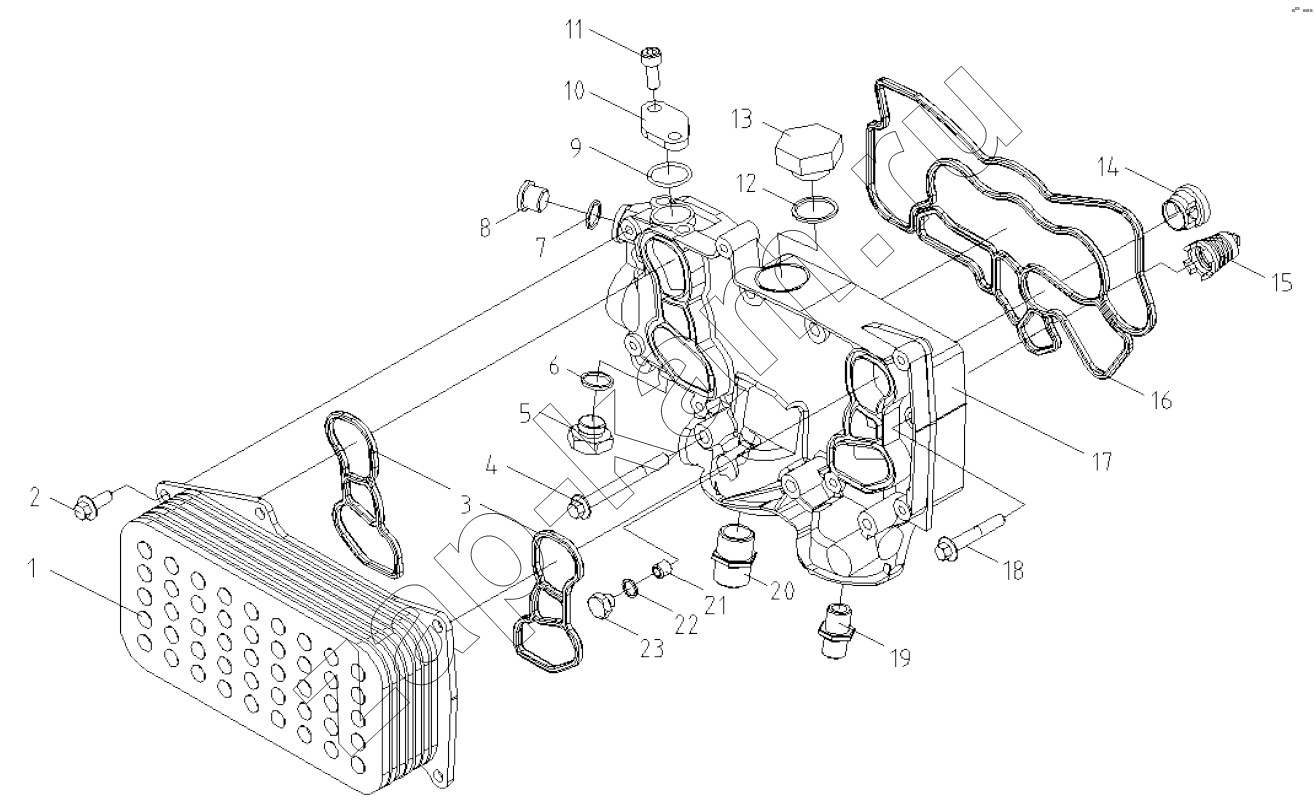

OIL COOLER
/ FAW BF4M2012
1
1
2
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
18
19
19
20
20
21
22
23
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 04254426 | Oil cooler | 1; | - | |
| 1 | 1013035A65D | Oil cooler | 1; | - | |
| 2 | 1009619-52D | Hexagon bolt | 7; | - | |
| 3 | 1013058A56D | Oil cooler seal | 2; | - | |
| 3 | 04254804 | Oil cooler seal | 2; | - | |
| 4 | 1013619-52D | Hexagon bolt | 3; | - | |
| 4 | 01143364 | Hexagon bolt | 3; | - | |
| 5 | 1013617-52D | Screw plug | 1; | - | |
| 6 | 1013621-52D | Sealing ring | 1; | - | |
| 7 | 01118700 | Sealing ring | 1; | - | |
| 8 | 01138667 | Screw plug | 1; | - | |
| 9 | 01180290 | O-ring | 1; | - | |
| 10 | 04906092 | Flange | 1; | - | |
| 11 | 01181433 | Hexagon bolt | 2; | - | |
| 12 | 01118760 | Sealing ring | 1; | - | |
| 13 | 01148158 | Screw plug | 1; | - | |
| 14 | 04254754 | By-pass component | 1; | - | |
| 15 | PRESSURELIMITINGVALVEASSEMBLY | Pressure limiting valve assembly | 1; | - | |
| 16 | 1013057A56D | Cooler box seal | 1; | - | |
| 16 | 04254803 | Cooler box seal | 1; | - | |
| 17 | 04299501 | Oil cooler box fastenings assembly | 1; | - | |
| 18 | 1013616-52D | Болт с шестигранной головкой и фланцем | 5; | - | |
| 18 | 01181431 | Hexagon bolt | 5; | - | |
| 19 | 1013061-56D | Screwed bush | 1; | - | |
| 19 | 04254443 | Screwed bush | 1; | - | |
| 20 | 1013062-56D | Screwed bush | 1; | - | |
| 20 | 04254442 | Screwed bush | 1; | - | |
| 21 | 01172112 | Threaded insert | 1; | - | |
| 22 | 3509643-52D | Уплотнительная прокладка | 1; | - | |
| 23 | 1013646-52D | Screw plug | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
