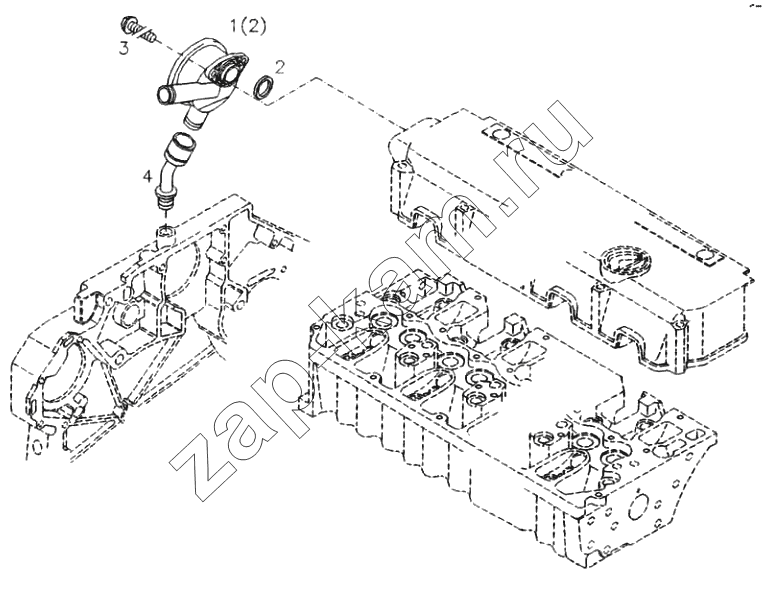

CRANKCASE BREATHER
/ FAW BF6M1013FC

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано BF4M1013 BF4M2012 BF6M1013FC BFM1013 CA 4DC2-10E4 (2012) CA 6DM2 (2012) CA 6DM2-39E4 CA 6DM2-42E51 CA498 CA4DF2 (2013) CA4DF3-13E3 CA6110 CA6DL2-37E4 CA6DL2-37E5 CA6DM2 CA6DM2 (2008)

Схема > Не выбрано PLUG FASTENINGS GUIDE TUBE OIL GAUGE DIPSTICK PRESSURESTAT CRANKCASE BREATHER BLEEDING TUBE PISTON COOL. NOZZLE OIL PAN FASTENINGS SET NARROW V-BELTS V-BELT PULLEY ASSY CRANKSHAFT FLANGE VIBRATION DAMPER FLYWHEEL CONNECTING ROD PISTON FASTENINGS FASTENINGS FASTENINGS VALVE MECHAN.COVER ENGINE MOUNTING BLANKING PARTS CYLINDER HEAD GEARCASE CAMSHAFT ROCKER ARM BRACKET ROCKER ARM BRACKET ROCKER ARM BRACKET FASTENINGS VALVE DRIVE FILTER CARTRIDGE BLANKING PARTS FASTENINGS OIL COOLER BOX OIL SUCTION PIPE FASTENINGS ROLLER TAPPET FASTENINGS FUEL INJECT. PUMP FASTENINGS FUEL INJECTOR FASTENINGS FUEL PUMP TWO-ST.FUEL FILTER FUEL LINE HIGH PRESSURE PIPE DISTANCE PIECE RUBBER SEAL BACK LEAK.CONNECT. AIR ELBOW FASTENINGS CHARGE AIR PIPE CHARGE AIR PIPE COVER CHARGE AIR ELBOW FASTENINGS CONTROL ROD IDLER GEAR INLET MANIFOLD FASTENINGS LUBRICAT.OIL LINE COOLING WATER LINE AIR COMPRESSOR COOLING WATER LINE NARROW V-BELT DRIVING PARTS CONNECTION HOSE CONNECTOR WATER THERMOSTAT FASTENINGS FAN V-GROOVED PULLEY FASTENINGNS FASTENINGS FASTENINGS TENSIONING PULLEY FASTENINGS VISCOUS FAN COUPL. FAN BRACKET FAN SUPPORT EXHAUST PIPE PLANKING PARTS LUBRICAT.OIL LINE RETURN LINE TURBOCHARGER FASTENINGS MATING PART DRIVING PARTS GENERATOR NARROW V-BELT ACCESSORIES STARTER ACCESSORIES ACCESSORIES PLUG-IN CONNECTOR PLUG-CONNECTOR PLUG-IN CONNECTOR COVER PLATE FASTENINGS PLUG-IN CONNECTOR FASTENINGS COVER PLATE CONNECTION HOUSING ACCESSORIES SHUTDOWN DEVICE SWITCHING DEVICE CLOW PLUG MATING PART GASKET HYDR PUMP DRIVE GEARED PUMP BLANKING PARTS

1

2

2

3

4

Поз.	Артикул		Название детали	Кол-во
1	1014015-52D		Маслоотделитель в сборе	1;
2	1014621-52D		Plain washer	2;
3	CQ2180620TF36		Cheese head screw	2;
4	1014016-52D		Rubber sleeve	1;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
