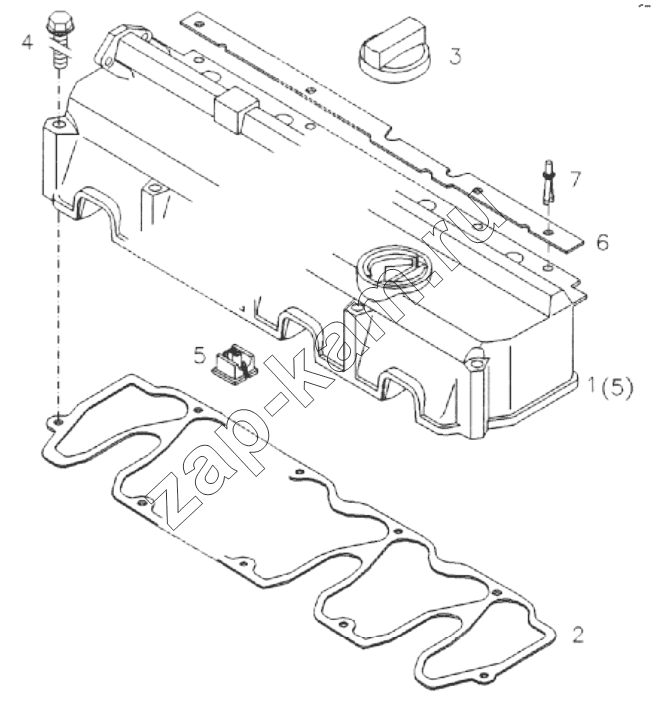

VALVE MECHAN. COVER
/ FAW BFM1013

Тип техники Не выбрано Грузовые Двигатели

Марка Не выбрано Caterpillar Cummins DCEC Deutz DongFeng Doosan FAW HOWO IVECO Komatsu SDEC Shaanxi Shaanxi Fast SITRAK Weichai XINCHAI Yuchai ZF КамАЗ ЯЗДА

Модель Не выбрано BF4M1013 BF4M2012 BF6M1013FC BFM1013 CA 4DC2-10E4 (2012) CA 6DM2 (2012) CA 6DM2-39E4 CA 6DM2-42E51 CA498 CA4DF2 (2013) CA4DF3-13E3 CA6110 CA6DL2-37E4 CA6DL2-37E5 CA6DM2 CA6DM2 (2008)

Схема > Не выбрано CRANKSHAFT AND BEARING CONNECTING ROD ROCKER ARM BRACKET ROCKER ARM BRACKET ROCKER ARM BRACKET LOCKING PART-ROCKER ARM BRACKET PRESSURESTAT CRANKCASE PISTON COOL. NOZZLE RATION GAS LOCKING PART- CYLINDER HEAD CYLINDER HEAD CONTROLLER TOOTHED GEAR INLET MANIFOLD OIL PUMP PISTON FUEL INJECTOR PUMP FUEL INJECTOR PUMP FUEL INJECTOR PUMP FUEL INJECTOR HIGH PRESSURE PIPE CAMSHAFT CONTROL ROD PRESSURESTAT EXHAUST PIPE AND SUPERCHARGER LUBRICAT. OIL LINE RETURN LINE AIR ELBOW CHARGE AIR PIPE CHARGE AIR PIPE CHARGE AIR PIPE PRESSURE REGULATOR CONNECTION HOUSING CONNECTION HOUSING CONNECTION HOUSING CONNECTION HOUSING HEXAGON BOLT FLYWHEEL SCREW PLUG HOUSING HOUSING AIR COMPRESSOR AIR COMPRESSOR AIR COMPRESSOR AIR COMPRESSOR AIR COMPRESSOR AIR COMPRESSOR GEARED PUMP GEAR CASE PTO-B CORE HOLE PLUG VALVE MECHAN. COVER OIL COOLER BOX OIL COOLER BOX OIL COOLER BOX SPIN-ON OIL FILTER HOSE ASSEMBLY SPIN-ON FUEL FILT. SHUTDOWN DEVICE STARTER COVER PLATE PLUG-IN CONNECTOR GLOW PLUG VENT-PIPE OIL PAN OIL SUCTION PIPE BRACKET DIPSTICK COOLANT PUMP HOSE CONNECTOR HOSING FAN AND VISCOUS FAN COUPL. GENERATOR SET NARROW V-BELTS BRACKET V-BELT FUEL PUMP VIBRATION DAMPER BRACKET SUSPENSION PLATE SENSOR SENSOR

1

2

3

4

5

6

7

Поз.	Артикул		Название детали	Кол-во
1	1003045-52D		Valve mechan. Cover	1;
2	1003042-52D		Gasket	1;
3	1003050-52D		Add oil cover assembly	1;
4	1003631-52D		Болт с шестигранной головкой и фланцем	13;
5	1003046-52D		Cap	1;
6	1003047-52D		Cover strip	1;
7	1003657-52D		Spreading rivet	5;

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
