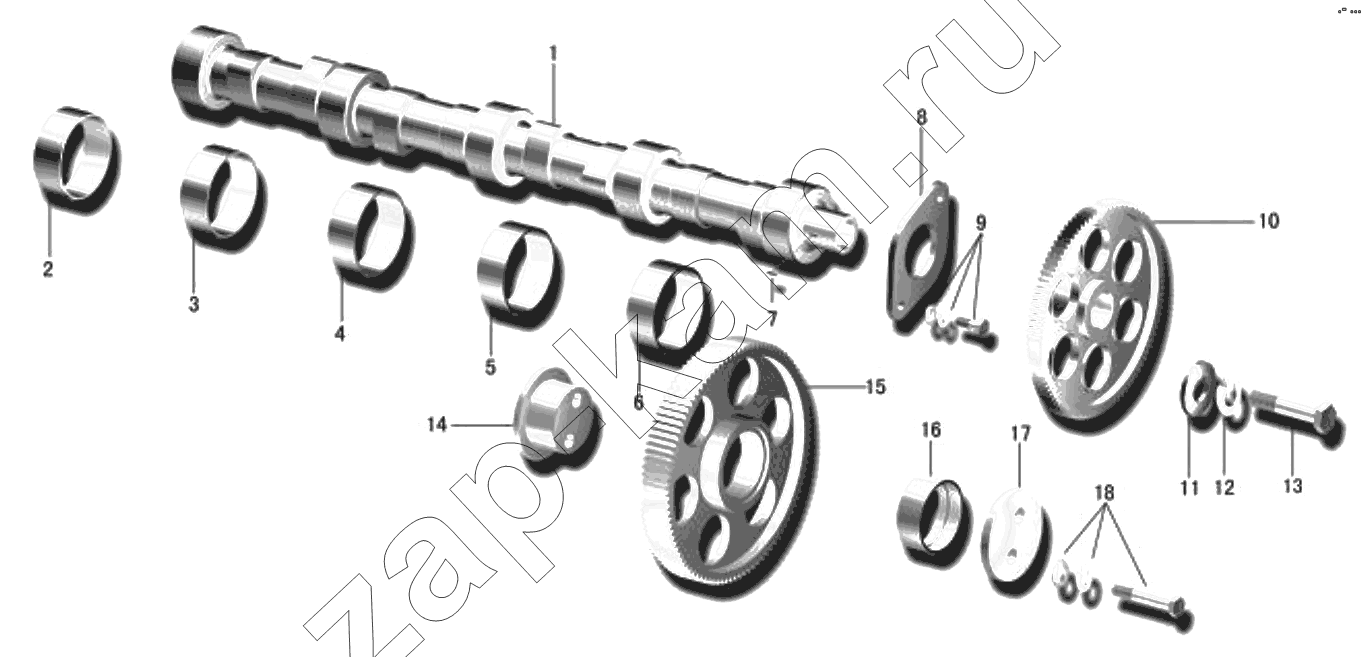

Camshaft
/ FAW CA498
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 1006016-55D | Camshaft | 1; | |
| 2 | 1006057-X2 | Bushing-camshaft 5th journal | 1; | |
| 3 | 1006056-X2 | Bushing-camshaft 4th journal | 1; | |
| 4 | 1006053-X2 | Bushing-camshaft 3th journal | 1; | |
| 5 | 1006052-X2 | Bushing-camshaft 2nd journal | 1; | |
| 6 | 1006051-X2 | Bushing-camshaft 1st journal | 1; | |
| 7 | Q5500416 | Key-camshaft timing gear | 1; | |
| 8 | 1006019-X2 | Camshaft thrust plate | 1; | |
| 9 | CQ1460620 | Болт | 2; | |
| 10 | 1006018-C012 | Timing gear - camshaft | 1; | |
| 11 | 1006022-X2 | Gasket - camshaft timing gear | 1; | |
| 12 | Q40310 | Пружинная шайба | 1; | |
| 13 | 1006021-X2 | Bolt-- camshaft timing gear | 1; | |
| 14 | 1006041-C012 | Timing intermediate gear shaft | 1; | |
| 15 | 1006031-C012 | Timing intermediate gear shaft | 1; | |
| 16 | 1006032-C012 | Bearing bush timing intermediate gear | 1; | |
| 17 | 1006043-C012 | Cover | 1; | |
| 18 | CQ1480855A | Positioning bolt - fastening timing intermediate gear shaft | 2; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
