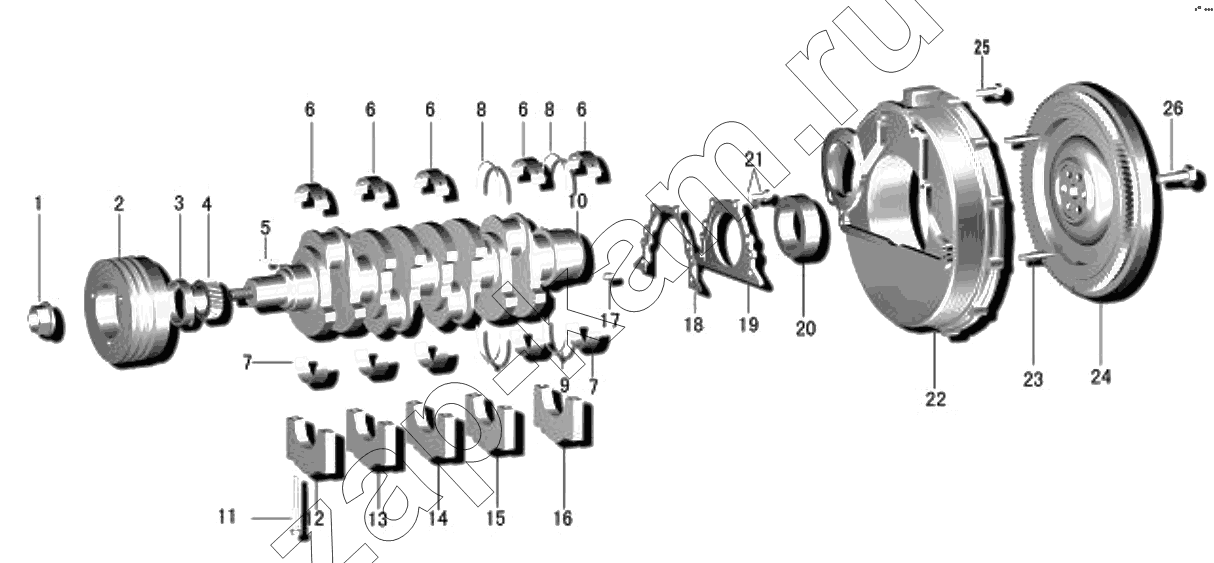

Crankshaft and flywheel
/ FAW CA498
1
2
3
4
5
6
6
6
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 1005051-X2 | Bolt-crankshaft belt pulley | 1; | |
| 2 | 1005040-X12 | Shock absorber assembly | 1; | |
| 3 | 1005090AX2A1 | Front oil sea | 1; | |
| 4 | 1005031-C012 | Timing gear - crankshaft | 1; | |
| 5 | Q5500516 | Woodruffkey | 2; | |
| 6 | 1005081-X2 | Upper spindle-crankshaft | 5; | |
| 7 | 1005082-X2 | Lower spindle - crankshaft | 5; | |
| 8 | 1005086-X2 | Upper thrust plate--crankshaft | 2; | |
| 9 | 1005087-X2 | Lower thrust pusher - crankshaft | 2; | |
| 10 | 1005021AX12 | Crankshaft | 1; | |
| 11 | 1005078-X2 | Bolt-crankshaft main bearing cap | 10; | |
| 12 | 1005071-C012 | 1st main bearing cap --crankshaft | 1; | |
| 13 | 1005072-C012 | 2nd main bearing cap --crankshaft | 1; | |
| 14 | 1005073-C012 | 3rd main bearing cap --crankshaft | 1; | |
| 15 | 1005074-C012 | 4th main bearing cap | 1; | |
| 16 | 1005076-C012 | 5th main bearing cap | 1; | |
| 17 | Q5221018 | Circular pin | 1; | |
| 18 | 1005102-X2 | Sealing gasket | 1; | |
| 19 | 1005101-X2 | Rear oil seal seat-crankshaft | 1; | |
| 20 | 1005105-X2 | Rear oil seal assembly | 1; | |
| 21 | CQ1480825A | Conical spring pad combination bolt | 6; | |
| 22 | 1002201-A122 | Flywheel shell | 1; | |
| 23 | Q5211024 | Cylindrical pin | 2; | |
| 24 | 1005200-A122 | Flywheel ring assembly | 1; | |
| 25 | 11005128-X2 | Bolt-flywheel housing | 6; | |
| 26 | 1005118-X12 | Flywheel bolt | 6; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
