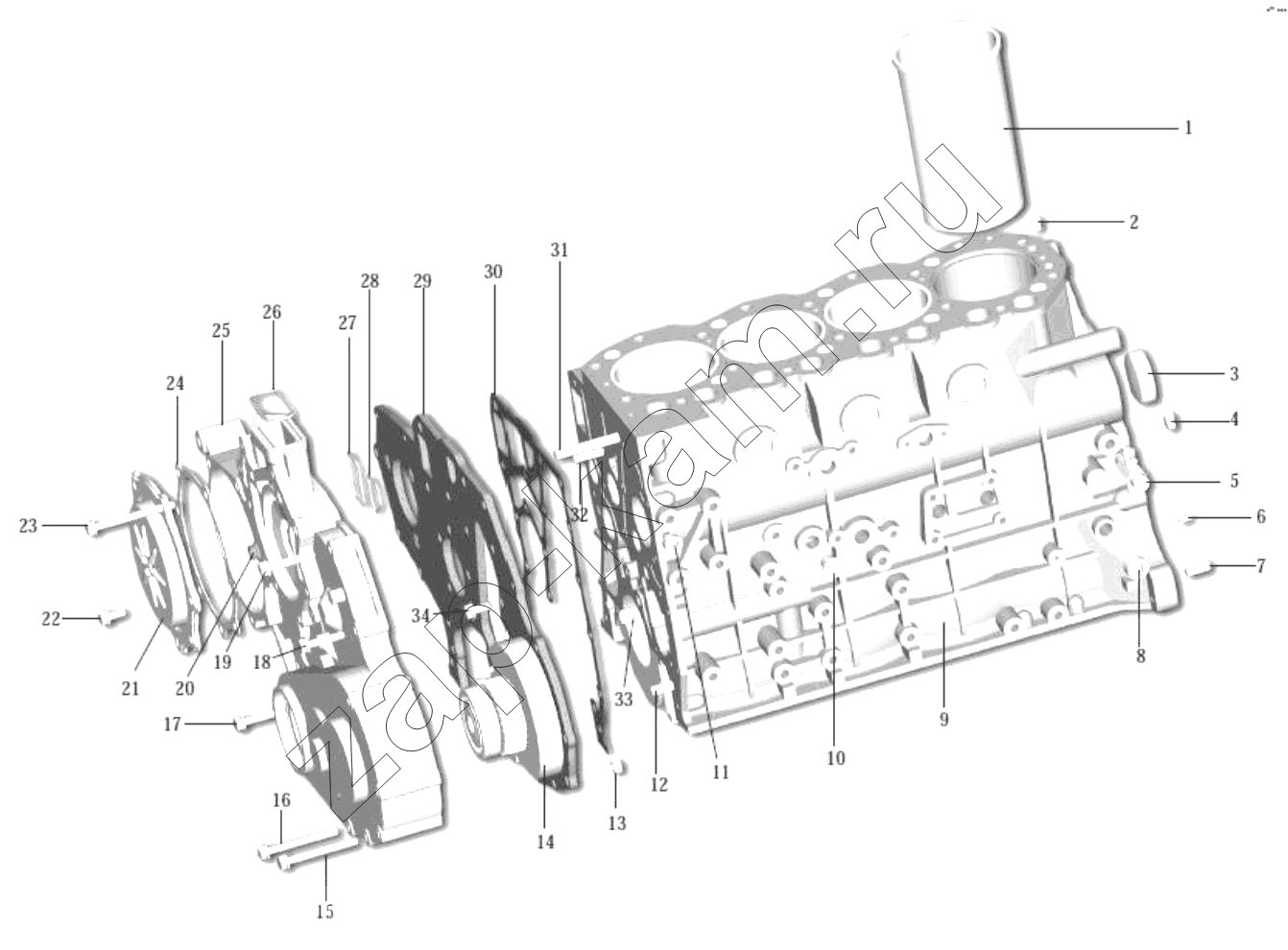

Cylinder block and drain switch assembly
/ FAW CA498
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 1002026-X2A1 | Cylinder liner | 4; | - | |
| 2 | Q5200812 | Elastic cylindrical pin | 2; | - | |
| 3 | 1002013-X2 | Bowl type plut | 1; | - | |
| 4 | 1002031-X2 | Bowl type plut | 2; | - | |
| 5 | 1305010AS001 | Water discharge switch assembly | 1; | - | |
| 6 | Q5220614 | Circular pin | 2; | - | |
| 7 | Q5221020 | Circular pin | 2; | - | |
| 8 | CQ61303 | Conical plug | 1; | - | |
| 9 | 1002010-26E | Cylinder block | 1; | - | |
| 10 | CQ61803 | Заглушка с шестигранной головкой | 1; | - | |
| 11 | Q61901 | Коническая пробка | 1; | - | |
| 12 | Q5221026 | Circular pin | 2; | - | |
| 13 | CQ34008 | Гайка | 4; | - | |
| 14 | 4001001-X52 | Hydraulic pump drive gear unit | 1; | - | |
| 15 | CQ1480885A | Combination bolt | 4; | - | |
| 16 | CQ1480875A | Combination bolt | 1; | - | |
| 17 | CQ1480845B | Combination bolt | 2; | - | |
| 18 | CQ1480840B | Combination bolt | 1; | - | |
| 19 | CQ1480850B | Combination bolt | 1; | - | |
| 20 | 1002028AX2 | Nut | 1; | - | |
| 21 | 1002065AX2 | Plat cover-gear chamber cover | 1; | - | |
| 22 | CQ1480820A | Combination bolt | 8; | - | |
| 23 | CQ1480860B | Combination bolt | 2; | - | |
| 24 | 1002069-C012 | Gasket | 1; | - | |
| 25 | 1002960-X52 | Gear chamber cover and front oil seal assembly | 1; | - | |
| 26 | 1002076-X2 | Water inlet sealing ring | 1; | - | |
| 27 | 1002073-X2 | Square sealing ring | 1; | - | |
| 28 | 1002074-X2 | Pentagram sealing ring | 1; | - | |
| 29 | 1002130-A122 | Gear chamber partition assembly | 1; | - | |
| 30 | 1002082AX2 | Space gasket | 1; | - | |
| 31 | CQ1201075 | Stud | 2; | - | |
| 32 | 1002027AX2 | Double head stud | 1; | - | |
| 33 | 1011021-X2 | Bushing | 1; | - | |
| 34 | CQ1480820A | Combination bolt | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
