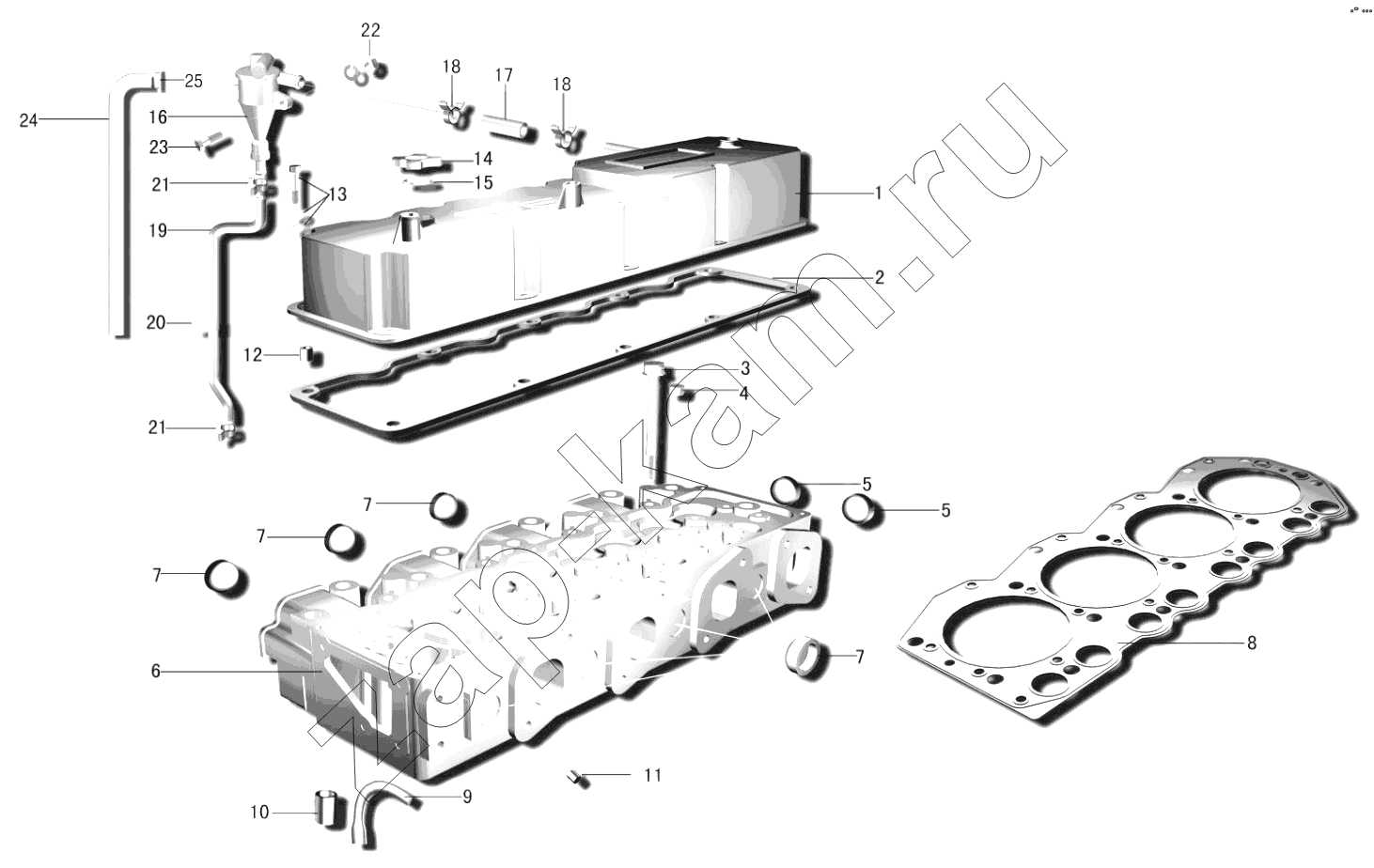

Cylinder head, crankcase ventilation
/ FAW CA498
1
2
3
4
5
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
21
22
23
24
25
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 1003040AX2 | Cylinder head cover assembly | 1; | |
| 2 | 1003046-X2 | Sealing ring | 1; | |
| 3 | 1003036-C012 | Cylinder bolt | 18; | |
| 4 | CQ61304 | Tapered screw plug | 3; | |
| 5 | 1003027AX2 | Bowl type plut | 2; | |
| 6 | 1003021AX2 | Cylinder head | 1; | |
| 7 | 1003028-X2 | Bowl type plut | 7; | |
| 8 | 1003030-C012 | Cylinder gasket assembly | 1; | |
| 9 | 1003023-X2 | Water injection elbow | 4; | |
| 10 | 1003022-X2 | Copper jacket | 4; | |
| 11 | 1003024-X2 | Blockage | 2; | |
| 12 | 1003047-X2 | Bushing-cover seal | 10; | |
| 13 | CQ1460625 | Болт | 10; | |
| 14 | 1003048-X2 | Oil filling cap | 1; | |
| 15 | 1003044-X2 | Sealing gasket | 1; | |
| 16 | 1014030-X12 | Oil and gas separator assembly | 1; | |
| 17 | 1014022BX2 | Breathing hose | 1; | |
| 18 | 1014029-X2 | Plastic cilp | 2; | |
| 19 | 1014038-5X4 | Oil return pipe | 1; | |
| 20 | 1014039-5X4 | Cilp | 1; | |
| 21 | 1014049-5X4 | Plastic cilp | 2; | |
| 22 | CQ34006 | Шестигранная гайка | 2; | |
| 23 | CQ1460630 | Комбинированный болт | 2; | |
| 24 | 1014034-C122 | Connecting hose | 1; | |
| 25 | CQ67629 | Clamp | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
