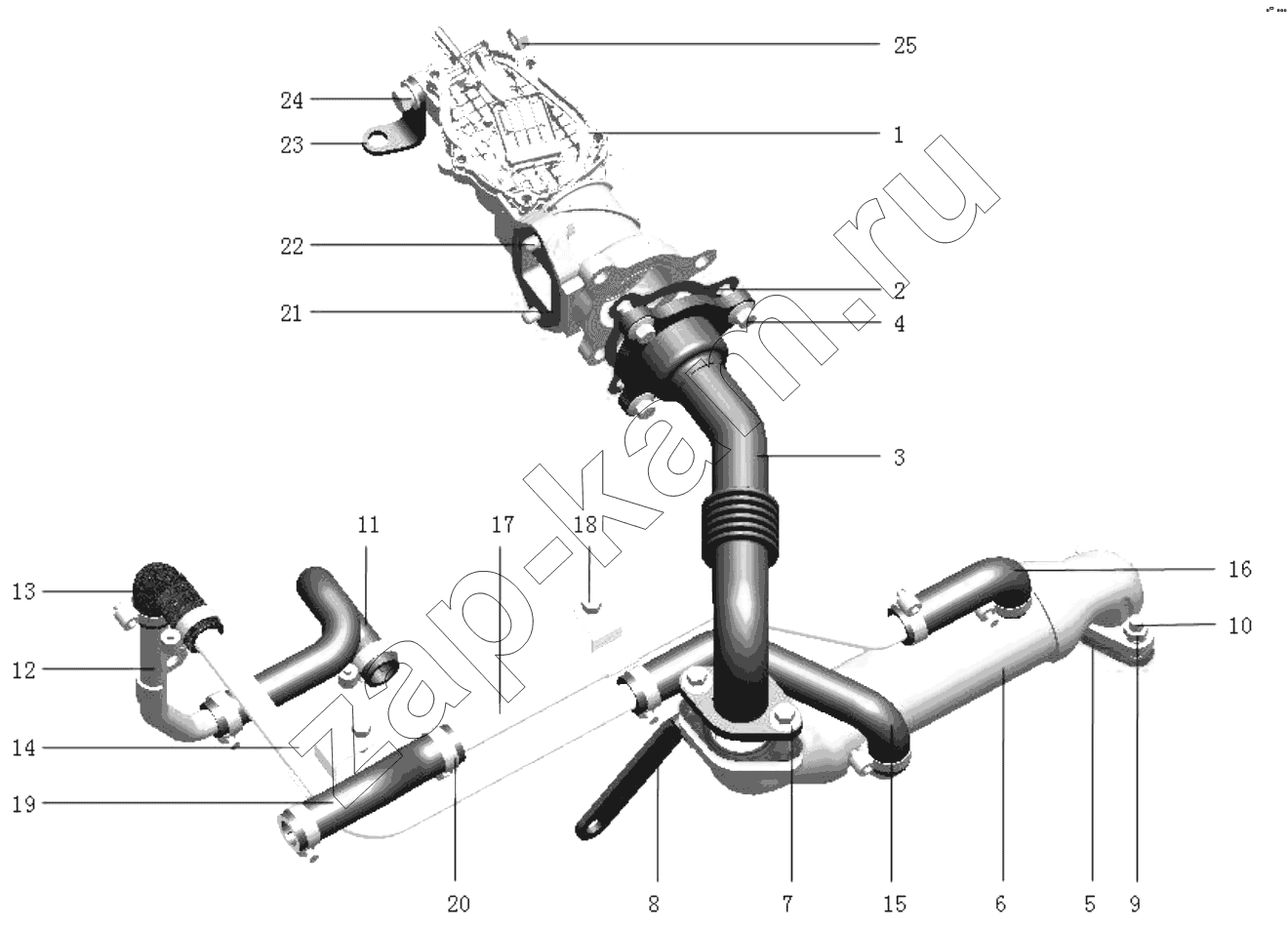

EGR system
/ FAW CA498
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 1207010-A031 | EGR valve assembly | 1; | |
| 2 | 1207011-90D | Sealing gasket-EGR valve inlet | 1; | |
| 3 | 1207040-A122 | Connecting pipe assembly - EGR valve to cooler | 1; | |
| 4 | Q1840820TF36 | Hexagon head flange bolt | 3; | |
| 5 | 1207111-90D | Gasket-EGR cooler | 2; | |
| 6 | 1207110-A122 | EGR cooler assembly | 1; | |
| 7 | Q1840830TF36 | Hexagon head flange bolt | 2; | |
| 8 | 1207141-A122 | EGR cooler bracket | 1; | |
| 9 | 1008073-C012 | Nut-turbocharger | 4; | |
| 10 | 1008074-C012 | Nut-turbocharger | 2; | |
| 11 | 1207183-A031 | EGR cooler inlet hose front hose | 1; | |
| 12 | 1207180-A031 | EGR cooler inlet pipe assembly | 1; | |
| 13 | 1207023-X162 | EGR cooler connecting elbow | 1; | |
| 14 | 1207181-A031 | EGR cooler inlet pipe | 1; | |
| 15 | 1207184-A122 | Hose after EGR cooler inlet pipe | ; | |
| 16 | 1207023-C490 | EGR cooler outlet hose front hose | 1; | |
| 17 | 1207190-A031 | EGR cooler outlet pipe assembly | 1; | |
| 18 | Q1840816TF36 | Hexagon head flange bolt | 2; | |
| 19 | 1207194-A122 | Hose after EGR cooler outlet pipe | 1; | |
| 20 | CQ67627B | Хомут | 10; | |
| 21 | 1207012-90D | Sealing gasket-EGR valve outlet | 1; | |
| 22 | Q1840825TF36 | Hexagon bolt | 2; | |
| 23 | 1207016-A122 | EGR valve bracket | 1; | |
| 24 | Q1840825TF36 | Hexagon bolt | 1; | |
| 25 | CQ34008 | Гайка | 1; |
