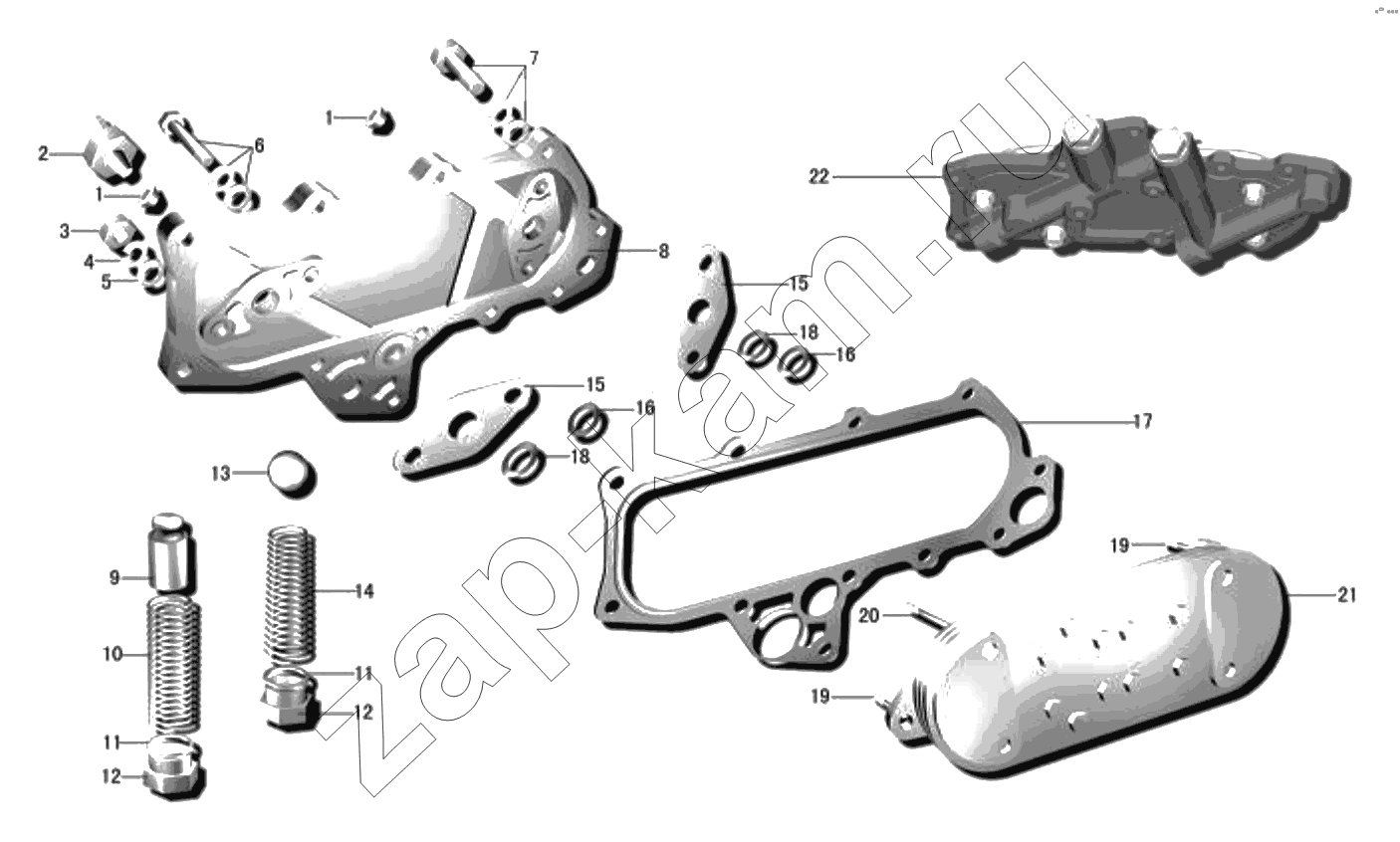

Oil cooler, alarm
/ FAW CA498
1
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
15
16
16
17
18
18
19
19
20
21
22
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | CQ61304 | Tapered screw plug | 2; | |
| 2 | 3602185-60D | Oil Pressure Sensor | 1; | |
| 3 | CQ34008 | Гайка | 4; | |
| 4 | Q40408 | Пружинная шайба | 4; | |
| 5 | Q40108 | Шайба | 4; | |
| 6 | CQ1460845 | Combination bolt | 1; | |
| 7 | CQ1460825 | Болт | 10; | |
| 8 | 1013011-X2 | Oil cooler cover | 1; | |
| 9 | 1013033-X2 | Pressure relief valve | 1; | |
| 10 | 1013037-X2 | Spring | 1; | |
| 11 | 1013038-X2 | Washer | 2; | |
| 12 | 1013032-X2 | Screw plug | 2; | |
| 13 | Q9661405 | Steel ball | 1; | |
| 14 | 1013036-X2 | Tapered spring | 1; | |
| 15 | 1013029-X2 | Flanged spacer | 2; | |
| 16 | 1013028-X2 | Oil passage sealing ring | 2; | |
| 17 | 1013031AX2 | Spacer | 1; | |
| 18 | 1013034-X2 | Rubber sealing O ring | 2; | |
| 19 | CQ1200818 | Double head stud | 3; | |
| 20 | CQ1200835 | Double head stud | 1; | |
| 21 | 1013020-C012 | Oil cooler assembly | 1; | |
| 22 | 1013030-C012 | Oil cooler assembly and cover assembly | 1; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
