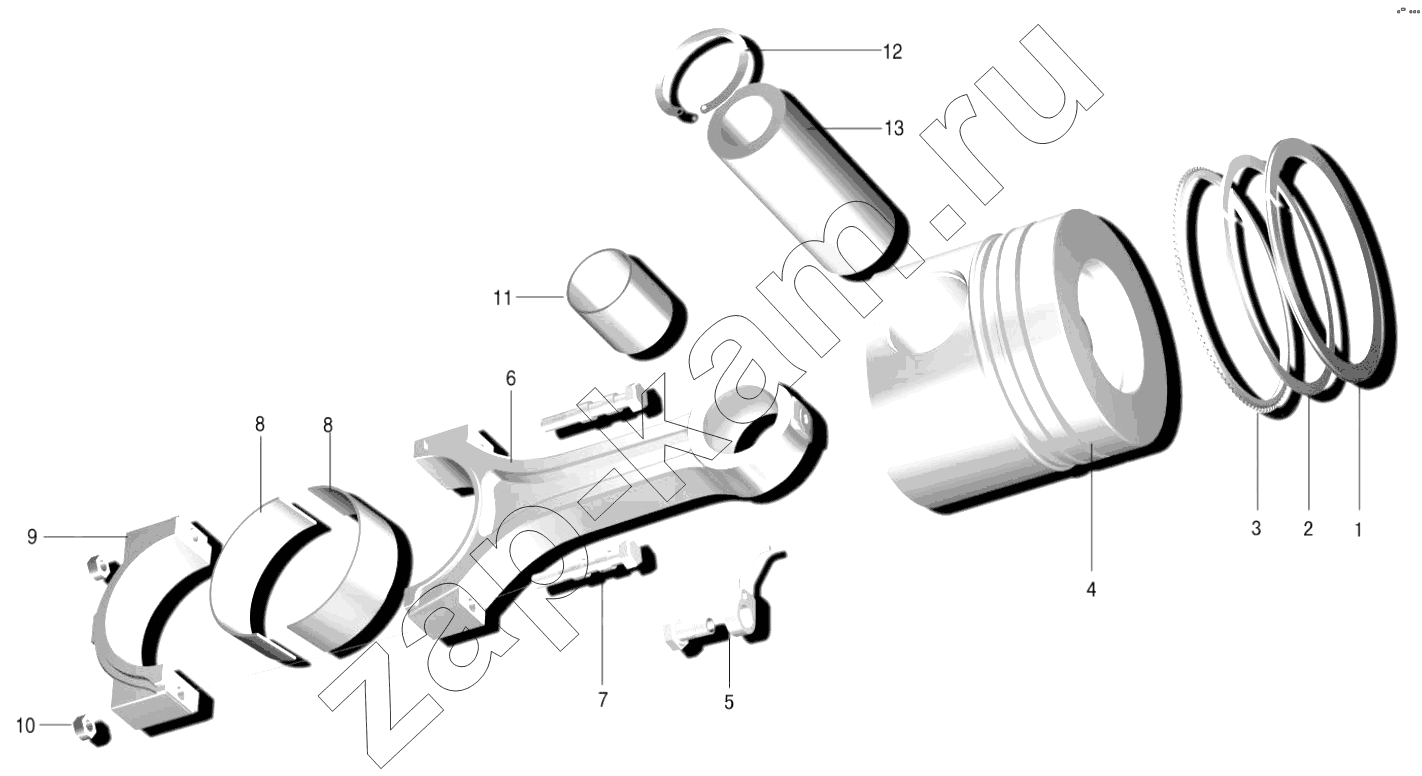

Piston and connecting rod
/ FAW CA498
1
2
3
4
5
6
7
8
8
9
10
11
12
13
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 1004026-X2 | Upper compression ring | 4; | |
| 2 | 1004027-X2 | Medium compression ring | 4; | |
| 3 | 1004035AX3 | Combined oil ring assembly | 4; | |
| 4 | 1004016-X03 | piston | 4; | |
| 5 | 1004001-X2 | Oil cooling nozzle | 4; | |
| 6 | 1004046-X2 | link | 4; | |
| 7 | 1004062-X2 | Connecting rod bolt | 8; | |
| 8 | 1004058/9-X2 | Connecting rod bearing | 8; | |
| 9 | 1004056-X2 | Connecting rod cover | 4; | |
| 10 | 1004067-X2 | Connecting rod nut | 8; | |
| 11 | 1004069-X2 | Connecting rod small head bushing | 4; | |
| 12 | Q43031 | Hole circlip | 8; | |
| 13 | 1004021-X2 | Piston pin | 4; |
