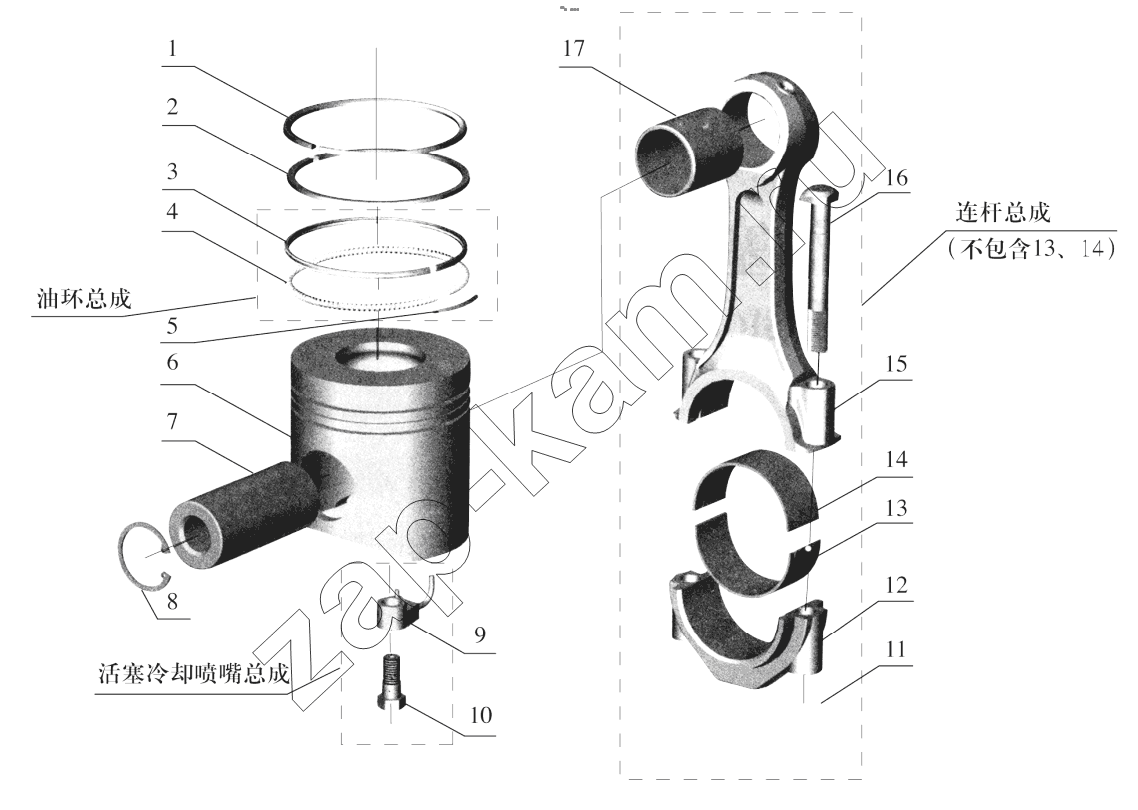

Piston and Connecting Rod
/ FAW CA4DF2
1
2
3
4
5
6
6
7
8
9
10
11
12
12
12
13
13
14
14
15
15
15
16
17
17
17
17
| Поз. | Артикул | Название детали | CA4DF2-14D-YFD10, | CA4DF2-14D-YFD10W, | CA4DF2-12D-YFD10, | |
|---|---|---|---|---|---|---|
| 1004010C201-0000 | 1004010C201-0000 | Connecting rod assy | 4 | 4 | 4 | |
| 1004010-201-0000B | 1004010-201-0000B | Connecting rod assy | 4 | 4 | 4 | |
| 1004010-201-0000XC | 1004010-201-0000XC | Connecting rod assy | 4 | 4 | 4 | |
| 1004020-400-0000 | 1004020-400-0000 | Oil ring assy | 4 | 4 | 4 | |
| 1 | 1004012-400-0000 | 1st compression ring | 4 | 4 | 4 | |
| 2 | 1004013-520-0000 | 2nd compression ring | 4 | 4 | 4 | |
| 3 | 1004014-400-0000 | Oil ring | 4 | 4 | 4 | |
| 4 | 1004016-400-0000 | Oil ring spring | 4 | 4 | 4 | |
| 5 | 1004017-400-0000 | Locking wire | 4 | 4 | 4 | |
| 6 | 1004011B520-0000 | Piston | 4 | 4 | 4 | |
| 6 | 1004011-520-0000H | Piston | 4 | 4 | ||
| 7 | 1004018A201-0000A | Piston pin | 4 | 4 | 4 | |
| 8 | GB/T 893.1-1986 | Internal snap ring 42 | 8 | 8 | 8 | |
| 9 | 1002130A051-0000 | Piston cooling muzzle assembly | 4 | 4 | 4 | |
| 10 | 1002135A051-0000 | link bolt assembly of cooling muzzle | 4 | 4 | 4 | |
| 11 | 1004027-001-0000 | Connecting rod nut | 8 | 8 | 8 | |
| 12 | 1004022C201-0000 | Connecting rod big end cap | 4 | 4 | 4 | |
| 12 | 1004022-201-0000B | Connecting rod big end cap | 4 | 4 | 4 | |
| 12 | 1004022-201-0000XC | Connecting rod big end cap | 4 | 4 | 4 | |
| 13 | 1004026-470-0000D | Connecting rod bearing shell | 4 | 4 | 4 | |
| 13 | 1004026-470-0000A | Connecting rod bearing shell | 4 | 4 | ||
| 14 | 1004028B400-0000D | Connecting rod bearing shell | 4 | 4 | 4 | |
| 14 | 1004028B400-0000A | Connecting rod bearing shell | 4 | 4 | ||
| 15 | 1004021-201-0000XC | Connecting rod | 4 | 4 | 4 | |
| 15 | 1004021-201-0000B | Connecting rod | 4 | 4 | 4 | |
| 15 | 1004021C201-0000 | Connecting rod | 4 | 4 | 4 | |
| 16 | 1004023A201-0000 | Connecting rod bolt | 8 | 8 | 8 | |
| 17 | 1004024C201-0000A | Connecting rod end bush | 4 | 4 | 4 | |
| 17 | 1004024C201-0000H | Connecting rod end bush | 4 | 4 | 4 | |
| 17 | 1004024-201-0000D | Connecting rod end bush | 4 | 4 | 4 | |
| 17 | 1004024-201-0000N | Connecting rod end bush | 4 | 4 | 4 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
