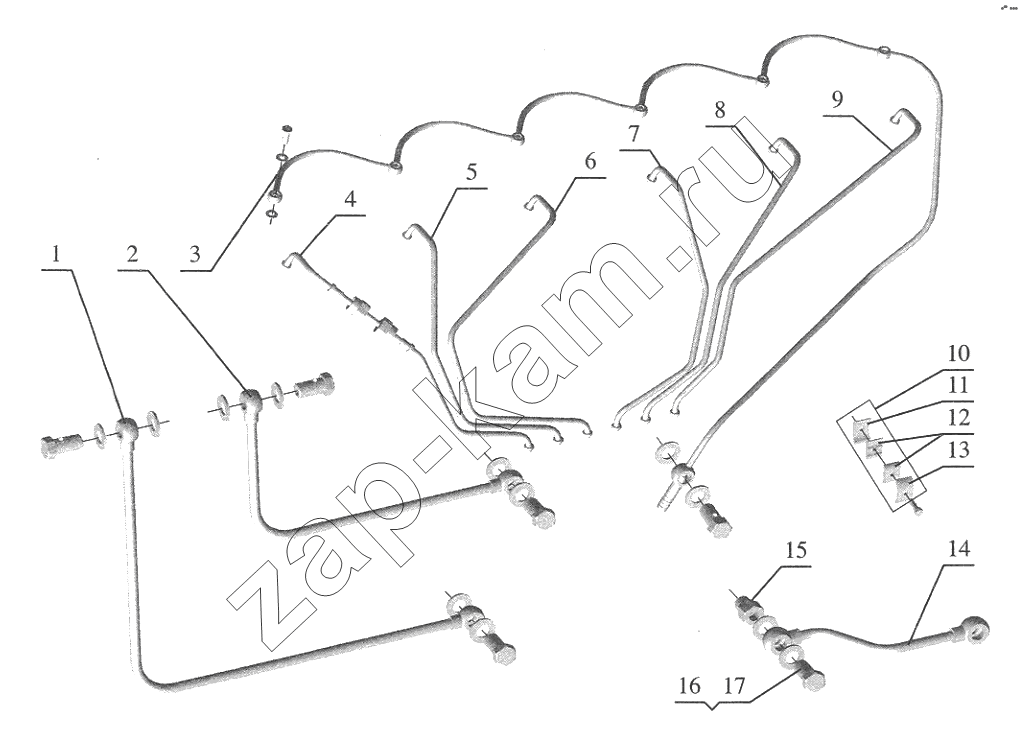

Fuel Piping
/ FAW CA6110
1104030-001-0000
1129046 А001-0000
1129041-013-0000
1129035 А013-0000
1129035В001-0000
1129030А013-0000
1129030В001-0000
1129025 А0 13-0000
1129025B001-0000
1129020A013-0000
1129020B001-0000
1129015A013-0000
1129015B001-0000
1129010A013-0000
1129010В001-0000
1104050-017-0000
1104050А001-0000А
1104040-017-0000
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1104030-001-0000 | 1104030-001-0000 | Fuel delivery flexible pipe assy | ;1;1; | - | |
| 1129046 А001-0000 | 1129046 А001-0000 | High pressure fuel pipe clamp plate | ;;2; | - | |
| 1129041-013-0000 | 1129041-013-0000 | High pressure fuel pipe clamp plate | ;;4; | - | |
| 1129035 А013-0000 | 1129035 А013-0000 | 6th Cylinder high pressure line | ;;1; | - | |
| 1129035В001-0000 | 1129035В001-0000 | 6th Cylinder high pressure line | ;1;; | - | |
| 1129030А013-0000 | 1129030А013-0000 | 5 th Cylinder high pressure line | ;;1; | - | |
| 1129030В001-0000 | 1129030В001-0000 | 5th Cylinder high pressure line | ;1;; | - | |
| 1129025 А0 13-0000 | 1129025 А0 13-0000 | 4th Cylinder high pressure line | ;;1; | - | |
| 1129025B001-0000 | 1129025B001-0000 | 4th Cylinder high pressure line | ;1;; | - | |
| 1129020A013-0000 | 1129020A013-0000 | 3rd Cylinder high pressure line | ;;1; | - | |
| 1129020B001-0000 | 1129020B001-0000 | 3rd Cylinder high pressure line | ;1;; | - | |
| 1129015A013-0000 | 1129015A013-0000 | 2nd Cylinder high pressure line | ;;1; | - | |
| 1129015B001-0000 | 1129015B001-0000 | 2nd Cylinder high pressure line | ;1;; | - | |
| 1129010A013-0000 | 1129010A013-0000 | 1st cylinder high pressure line | ;;1; | - | |
| 1129010В001-0000 | 1129010В001-0000 | 1st cylinder high pressure line | ;1;; | - | |
| 1104050-017-0000 | 1104050-017-0000 | Fuel injector leak-off pipe assy | ;;1; | - | |
| 1104050А001-0000А | 1104050А001-0000А | Fuel injector leak-off pipe assy | ;1;; | - | |
| 1104040-017-0000 | 1104040-017-0000 | Fuel delivery flexible pipe assy | ;1;1; | - | |
| 1 | 1104030A017-SG10 | Fuel delivery flexible pipe assy | 1;;; | - | |
| 2 | 1104040A017-SG10 | Fuel delivery flexible pipe assy | 1;;; | - | |
| 3 | 1104050-017-LJ40 | Fuel injector leak-off pipe assy | 1;;; | - | |
| 4 | 1129010-017-SG8K | 1st cylinder high pressure line | 1;;; | - | |
| 5 | 1129015-017-SG8K | 2nd cylinder high pressure line | 1;;; | - | |
| 6 | 1129020-017-SG8K | 3rd cylinder high pressure line | 1;;; | - | |
| 7 | 1129025-017-SG8K | 4th cylinder high pressure line | 1;;; | - | |
| 8 | 1129030-017-SG8K | 5th cylinder high pressure line | 1;;; | - | |
| 9 | 1129035-017-SG8K | 6th cylinder high pressure line | 1;;; | - | |
| 10 | 1129040-204-2060 | High pressure fuel pipe clamp assy | 4;;; | - | |
| 11 | 1129041А001-0000 | High pressure fuel pipe clamp plate | ;4;; | - | |
| 12 | 1129042 А001-0000 | Rubber clamp pad | ;8;4; | - | |
| 13 | 1129046 А001-0000 | High pressure fuel pipe clamp plate | ;4;; | - | |
| 14 | 1104060В001-0000 | Lubricating oil pipe assy | 1;1;1; | - | |
| 15 | П04074-001-0000 | Lubricating oil leak-off pipe joint | 1;1;1; | - | |
| 16 | 1104069-001-0000 | Шарнирный болт | 1;1;1; | - | |
| 17 | Q/WC3403-1994 | Медная прокладка | 2;2;2; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
