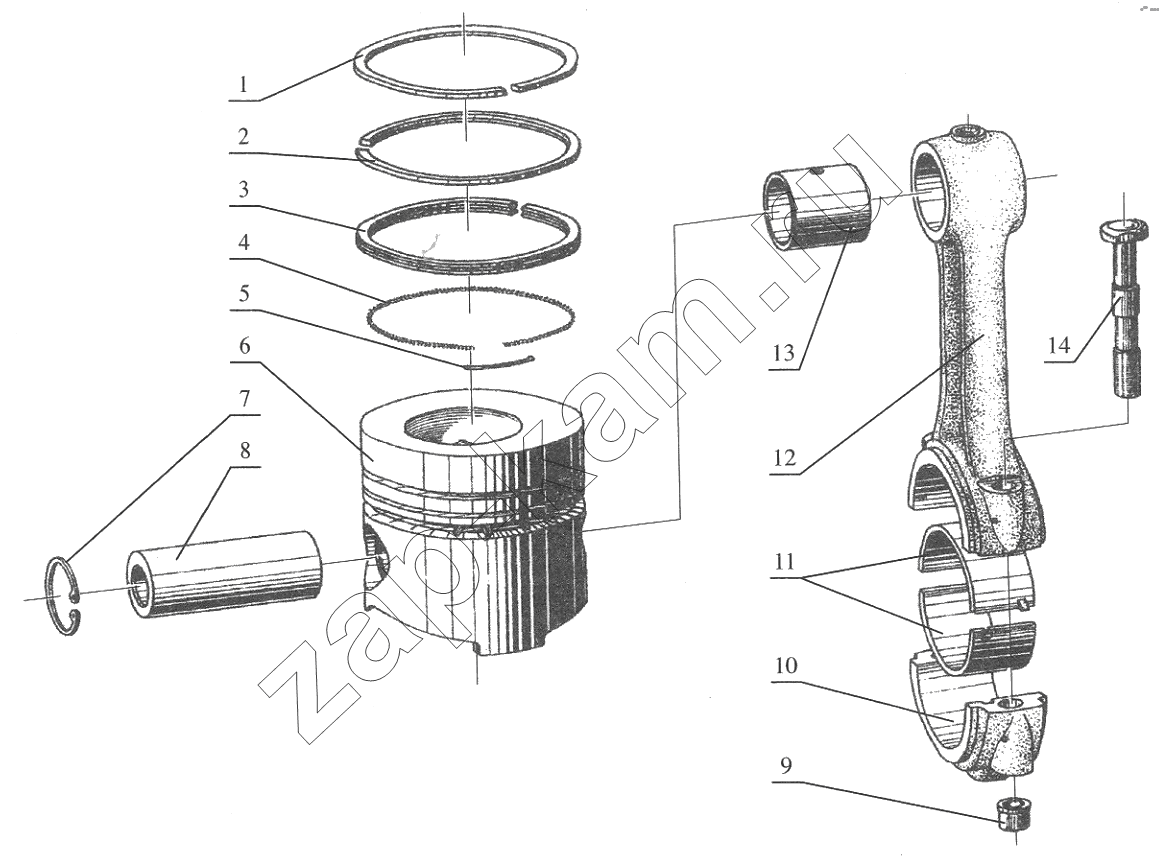

Piston and Connecting Rod
/ FAW CA6110
1004024-001-0000B
1004024-00 l-0000N
1004011-013-0000M
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1004020 A001-0000 | 1004020 A001-0000 | Oil ring assy | 6;6;6; | - | |
| 1004024-001-0000B | 1004024-001-0000B | Connecting rod end bush | 6;6;6; | - | |
| 1004024-00 l-0000N | 1004024-00 l-0000N | Connecting rod end bush | 6;6;6; | - | |
| 1004011-013-0000M | 1004011-013-0000M | Piston | 6;6;6; | - | |
| 1004010В001-0000 | 1004010В001-0000 | Connecting rod assy | 6;6;6; | - | |
| 1 | 1004012A001-0000 | 1 st compression ring | 6;6;6; | - | |
| 2 | 1004013 A001-0000 | 2nd compression ring | 6;6;6; | - | |
| 3 | 1004014 A001-0000 | Oil ring | 6;6;6; | - | |
| 4 | 1004016 A001-0000 | Oil ring spring | 6;6;6; | - | |
| 5 | 1004017 A001-0000 | Locking wire | 6;6;6; | - | |
| 6 | 1004011-013-0000 | Piston | 6;6;6; | - | |
| 7 | Q43038 | Circlip 42 | 12;12;12; | - | |
| 8 | 1004018-001-0000 | Piston pin | 6;6;6; | - | |
| 9 | 1004027-001-0000 | Connecting rod nut | 12;12;12; | - | |
| 10 | 1004022-001-0000 | Connecting rob big end cap | 6;6;6; | - | |
| 11 | 1004026-001-0000 | Connecting rod bearing shell | 6;6;6; | - | |
| 12 | 1004021B001-0000 | Connecting rod | 6;6;6; | - | |
| 13 | 1004023B001-0000 | Connecting rod bolt | 12;12;12; | - | |
| 14 | 1004024 A001-0000 | Connecting rod end bush | 6;6;6; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
