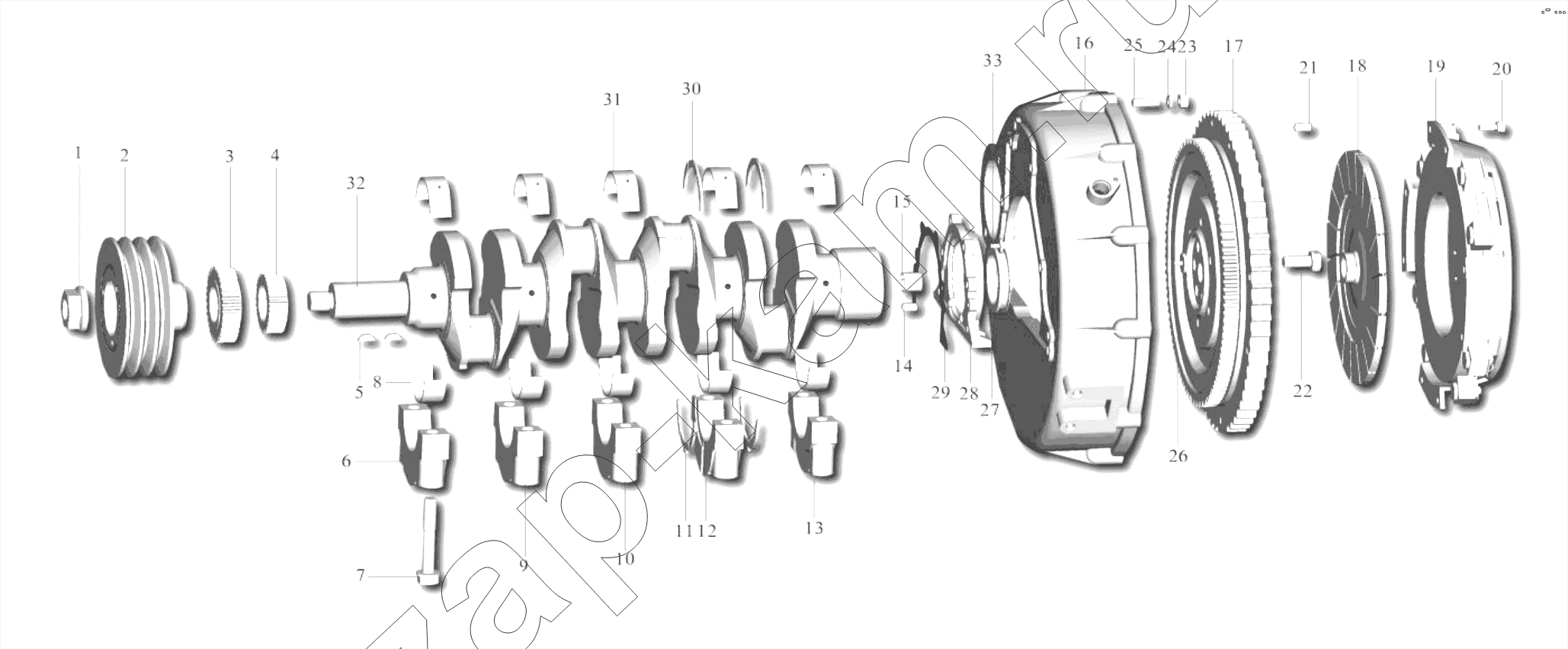

Crankshaft & flywheel
/ FAW CA 4DC2-10E4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 1005051-X2 | Bolt-crankshaft belt pulley | 1; | - | |
| 2 | 1005040-C012 | Shock absorber assembly | 1; | - | |
| 3 | 4001011-X12 | Driving gear- crankshaft hydraulic pump | 1; | - | |
| 4 | 1005031-55D | Timing gear--crankshaft | 1; | - | |
| 5 | Q5500516 | Woodruffkey | 2; | - | |
| 6 | 1005071-C012 | 1st main bearing cap --crankshaft | 1; | - | |
| 7 | 1005078-X2 | Bolt-crankshaft main bearing cap | 10; | - | |
| 8 | 1005980-C012 | Lower main bearing bush--crankshaft | 5; | - | |
| 9 | 1005072-C012 | 2nd main bearing cap --crankshaft | 1; | - | |
| 10 | 1005073-C012 | 3rd main bearing cap --crankshaft | 1; | - | |
| 11 | 1005160-X2 | Lower thrust plate--crankshaft | 2; | - | |
| 12 | 1005074-C012 | 4th main bearing cap | 1; | - | |
| 13 | 1005076-C012 | 5th main bearing cap | 1; | - | |
| 14 | Q5221018 | Circular pin | 1; | - | |
| 15 | 1005037-X2 | Shaft sleeve-gearbox 1st shaft | 1; | - | |
| 16 | 1005121-55D | Flywheel casing | 1; | - | |
| 17 | 1005115-C349 | Flywheel- gear assembly | 1; | - | |
| 18 | 1601210AY01 | Driven disc assembly | 1; | - | |
| 19 | 1601310-Y01 | Clutch cover assembly | 1; | - | |
| 20 | CQ1421025 | Комбинационный болт | 8; | - | |
| 21 | Q5221020 | Circular pin | 2; | - | |
| 22 | 1005118-X2 | Flywheel bolt | 6; | - | |
| 23 | CQ34110 | Гайка | 11; | - | |
| 24 | Q40310 | Пружинная шайба | 11; | - | |
| 25 | CQ1291030 | Double head stud | 11; | - | |
| 26 | 1005128-X2 | Bolt-flywheel casing | 6; | - | |
| 27 | 1005105AX2 | Rear oil seal - crankshaft | 1; | - | |
| 28 | 1005101-X2 | Rear oil seal seat-crankshaft | 1; | - | |
| 29 | 1005102-X2 | Sealing gasket | 1; | - | |
| 30 | 1005086-X2 | Upper thrust plate--crankshaft | 2; | - | |
| 31 | 1005082-C012 | Upper main bearing bush--crankshaft | 5; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
