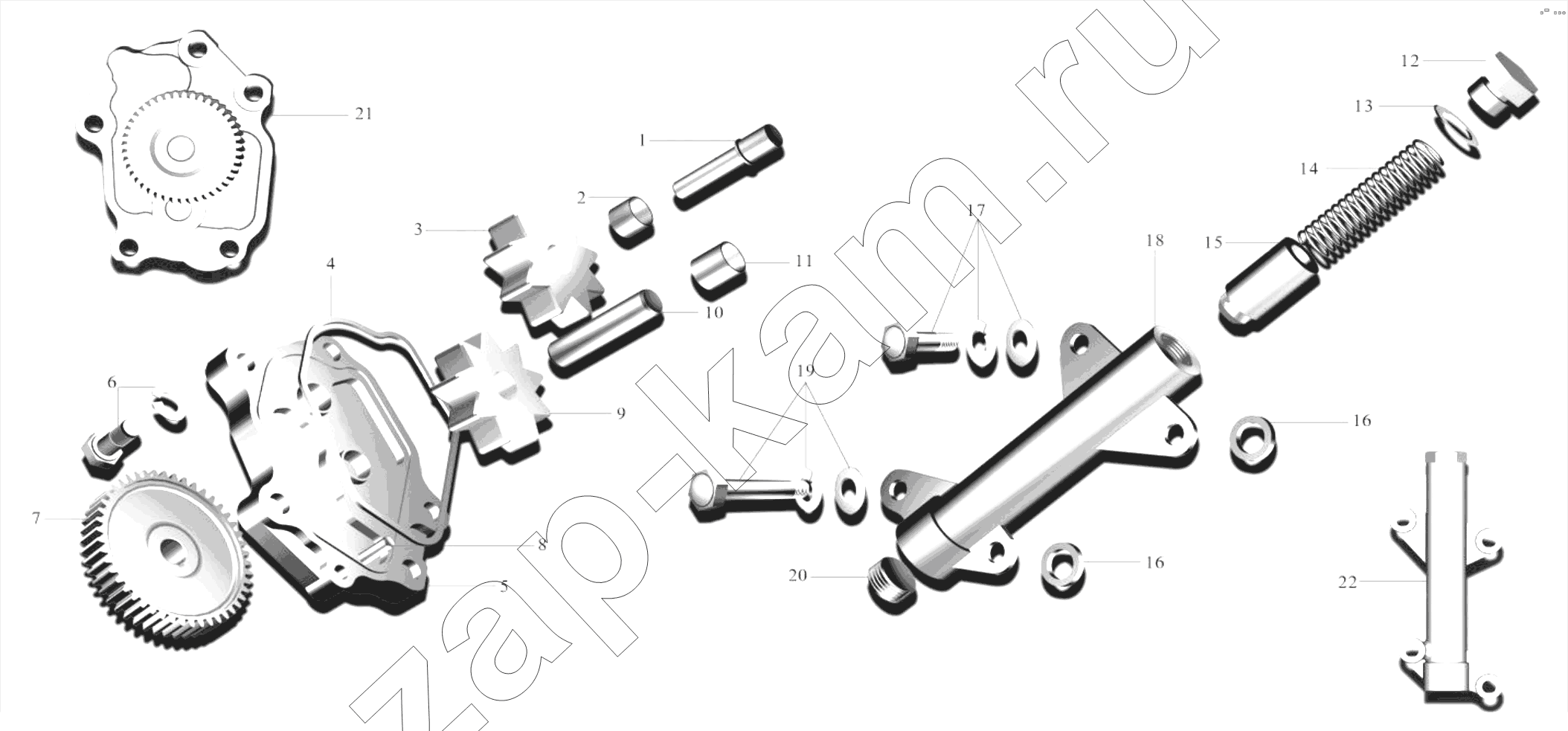

Oil pump
/ FAW CA 4DC2-10E4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 1011023-26E | Driven shaft | 1; | - | |
| 2 | 1011031-26E | Driven gear bushing | 1; | - | |
| 3 | 1011032-26E | Driven gear | 1; | - | |
| 4 | 1011022-X2 | Rubber sealing ring | 1; | - | |
| 5 | 1011024-X2 | Pump cover | 1; | - | |
| 6 | CQ1480820A | Combination bolt | 5; | - | |
| 7 | 1011014-55D | Transmitting gear | 1; | - | |
| 8 | 1011026-X2 | Locating pin | 1; | - | |
| 9 | 1011016-26E | Driving gear | 1; | - | |
| 10 | 1011013-26E | Driving shaft | 1; | - | |
| 11 | 1011021-X2 | Bushing | 1; | - | |
| 12 | 1011042-X2 | Spring plate | 1; | - | |
| 13 | 1011046-X2 | Sealing spacer-pressure relief valve | 1; | - | |
| 14 | 1011044-X2 | Spring- pressure relief valve | 1; | - | |
| 15 | 1011043-X2 | Plunger | 1; | - | |
| 16 | 1011047-X2 | Sealing ring | 2; | - | |
| 17 | CQ1460825 | Болт | 3; | - | |
| 18 | 1011041-X2 | Valve block | 1; | - | |
| 19 | CQ1460850 | Combination bolt | 1; | - | |
| 20 | 1011048-X2 | Tapered screw plug | 1; | - | |
| 21 | 1011010-26E | Oil pump assembly | 1; | - | |
| 22 | 1011040-X2 | Pressure relief valve assembly | 1; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
