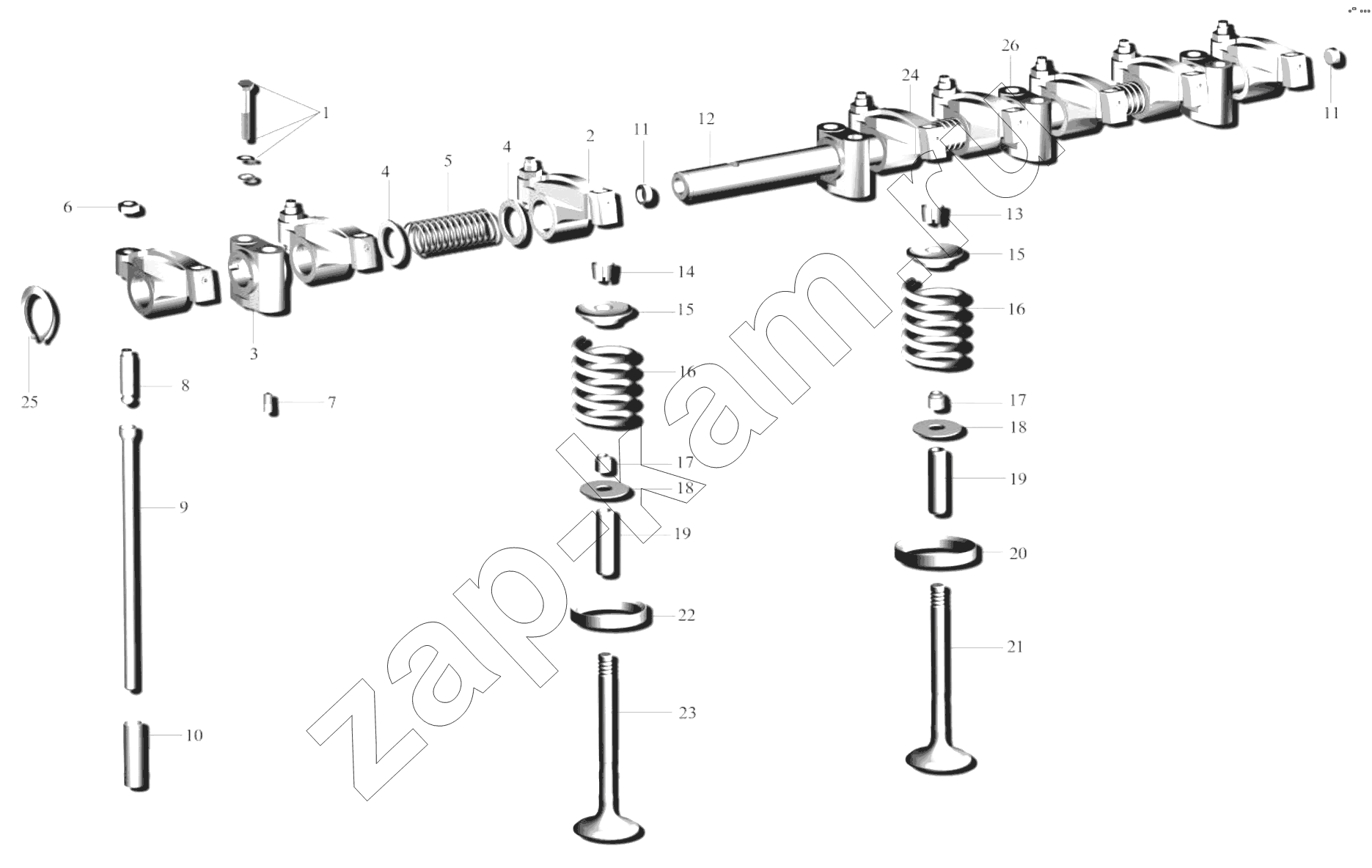

Valve train
/ FAW CA 4DC2-10E4
1
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
15
16
16
17
17
18
18
19
19
20
21
22
23
24
25
26
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | CQ1460860 | Combination bolt | 8; | |
| 2 | 1007155-X2 | Exhaust valve rocker arm assembly | 4; | |
| 3 | 1007091-X2 | Positioning rocker brackets | 1; | |
| 4 | 1007099-X2 | Plug | 6; | |
| 5 | 1007097-X2 | Intermediate positioning spring | 3; | |
| 6 | 1007159-X2 | Locking nut | 8; | |
| 7 | GB78-85 | Bolt | 1; | |
| 8 | 1007158-X2 | Adjusting bolt | 8; | |
| 9 | 1007050-X2A1 | Push rod | 8; | |
| 10 | 1007061-26E | Tappet | 8; | |
| 11 | QC/T-388-12DZn13 | Bowl type plug | 2; | |
| 12 | 1007090-X2 | Rocker shaft | 1; | |
| 13 | 1007028-X2 | Lock-intake valve | 8; | |
| 14 | 1007029-B1 | Lock-exhaust valve | 8; | |
| 15 | 1007022-X2 | Valve spring seat | 8; | |
| 16 | 1007021-X2 | Valve spring | 8; | |
| 17 | 1007035-X2 | Oil seal assembly-valve guide | 8; | |
| 18 | 1007024-X2 | Valve spring seat gasket | 8; | |
| 19 | 1007032-X2 | Intake & exhaust valve guide | 8; | |
| 20 | 1007081-X2A1 | Intake valve seat | 4; | |
| 21 | 1007011-X2 | Intake valve | 4; | |
| 22 | 1007082-X2A1 | Exhaust valve seat | 4; | |
| 23 | 1007012-X2 | Exhaust valve | 4; | |
| 24 | 1007145-X2 | Intake valve rocker arm assembly | 4; | |
| 25 | Q43120 | Circlip | 2; | |
| 26 | 1007092-X2 | Rocker shaft intermediate bracket | 3; |
