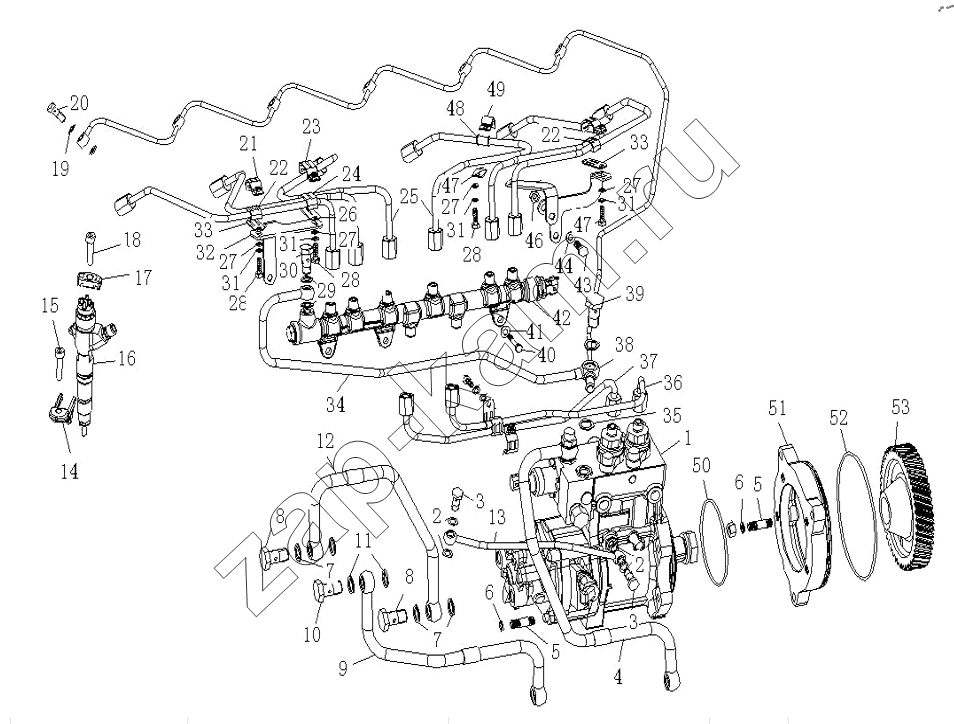

Fuel Supply System
/ HOWO D10.34-50
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
27
27
27
28
28
28
29
30
31
31
31
31
32
33
33
34
35
36
37
38
38
39
40
41
42
43
44
46
47
47
48
49
50
51
52
53
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | VG1034080001 | Injection Pump | 1; | |
| 1.1 | VG1034080001+001 | Transfer pump | 1; | |
| 1,2 | VG1034080001+002 | Overflow valve | 1; | |
| 1,3 | VG1034080001+003 | Metering valve | 1; | |
| 2 | VG9003080003 | Washer | 4; | |
| 3 | VG1034070002 | Bolt | 2; | |
| 4 | VG1034080016A | Fuel Pipe | 1; | |
| 4 | VG1034080016 | Fuel Pipe | 1; | |
| 5 | Q1201030F3 | Stud | 1; | |
| 6 | Q41810 | Шайба | 1; | |
| 7 | VG9003080006 | Gasket | 4; | |
| 8 | VG1246080014 | Hollow bolt | 2; | |
| 9 | VG1034080015 | Fuel Pipe | 1; | |
| 10 | VG1246080014 | Hollow bolt | 1; | |
| 11 | VG9003080006 | Gasket | 2; | |
| 12 | VG1034080014 | Fuel Pipe | 1; | |
| 13 | VG1034080017A | Oil inlet pipe for lubricating oil for oil pump | 1; | |
| 14 | VG1034080004 | Injector Clamp | 6; | |
| 15 | VG1034080039 | Bolt | 6; | |
| 16 | VG1034080002 | Fuel Injector Assembly | 6; | |
| 16.1 | VG1034080002+001 | Inject nozzle matching parts | 1; | |
| 16.2 | VG1034080002+002 | Control Valve Unit | 1; | |
| 16.3 | VG1034080002+003 | Ball valve | 1; | |
| 16.4 | VG1034080002+004 | Adjust ring | 1; | |
| 16.11 | VG1034080002+011 | Adjust ring | 1; | |
| 16.12 | VG1034080002+012 | Adjust ring | 1; | |
| 16.13 | VG1034080002+013 | Adjust ring | 1; | |
| 16.14 | VG1034080002+014 | Adjust ring | 1; | |
| 16.15 | VG1034080002+015 | Adjust ring | 1; | |
| 16.16 | VG1034080002+016 | Adjust ring | 1; | |
| 16.17 | VG1034080002+017 | Adjust ring | 1; | |
| 16.18 | VG1034080002+018 | Adjust ring | 1; | |
| 16.19 | VG1034080002+019 | Adjust ring | 1; | |
| 16.20 | VG1034080002+020 | Adjust ring | 1; | |
| 16.21 | VG1034080002+021 | Adjust ring | 1; | |
| 16.22 | VG1034080002+022 | Adjust ring | 1; | |
| 16.23 | VG1034080002+023 | Adjust ring | 1; | |
| 16.24 | VG1034080002+024 | Adjust ring | 1; | |
| 16.25 | VG1034080002+025 | Adjust ring | 1; | |
| 16.41 | VG1034080002+041 | Adjust ring | 1; | |
| 16.42 | VG1034080002+042 | Adjust ring | 1; | |
| 16.43 | VG1034080002+043 | Adjust ring | 1; | |
| 16.44 | VG1034080002+044 | Adjust ring | 1; | |
| 16.45 | VG1034080002+045 | Adjust ring | 1; | |
| 16.46 | VG1034080002+046 | Adjust ring | 1; | |
| 16.47 | VG1034080002+047 | Adjust ring | 1; | |
| 16.48 | VG1034080002+048 | Adjust ring | 1; | |
| 16.49 | VG1034080002+049 | Adjust ring | 1; | |
| 16.50 | VG1034080002+050 | Adjust ring | 1; | |
| 16.51 | VG1034080002+051 | Adjust ring | 1; | |
| 17 | VG1034080005 | Injector Clamp | 6; | |
| 18 | Q218B0835TF2 | Bolt | 6; | |
| 19 | VG9003080002 | Gasket | 12; | |
| 20 | 190003962603 | Hollow bolt | 6; | |
| 21 | VG1540080058 | верхний компонент вязки двух трубки | 3; | |
| 22 | VG1540080053 | подкладка | 3; | |
| 23 | VG1540080059 | верхний компонент вязки трех трубки | 1; | |
| 24 | VG1540080056 | подкладка трех трубки | 1; | |
| 25 | VG1034080020 | High Pressure Fuel Pipes | 1; | |
| 26 | VG1540080055 | низкий компонент вязки трех трубки | 1; | |
| 27 | Q40106 | Шайба | 5; | |
| 28 | Q150B0620 | болт | 5; | |
| 29 | VG9003080004 | Sealing washer | 2; | |
| 30 | VG1092110051 | Hollow bolt | 1; | |
| 31 | Q40306 | Пружинная шайба | 5; | |
| 32 | VG1034080076 | Supporting | 1; | |
| 33 | VG1540080052 | низкий компонент вязки двух трубки | 3; | |
| 34 | VG1034080012 | Fuel Return Pipe | 1; | |
| 35 | VG9003080006 | Gasket | 2; | |
| 36 | VG1034080031 | High Pressure Fuel Pipe | 1; | |
| 37 | VG1034080032 | High Pressure Fuel Pipe | 1; | |
| 38 | VG1034080035A | Connecting | 1; | |
| 38 | VG1034080028 | Connecting | 1; | |
| 39 | 190003962621 | Hollow bolt | 1; | |
| 40 | Q150B0835 | болт | 3; | |
| 41 | Q41808 | Пружинная шайба | 3; | |
| 42 | VG1034080003 | Rail | 1; | |
| 43 | Q150B0816 | болт | 1; | |
| 44 | Q41808 | Пружинная шайба | 1; | |
| 46 | Q340B08 | гайка | 1; | |
| 47 | VG1540080048 | низкий компонент вязки одной трубки | 1; | |
| 48 | VG1540080049 | подкладка | 1; | |
| 49 | VG1540080057 | верхний компонент вязки одной трубки | 1; | |
| 50 | VG1034080010 | O-Ring | 1; | |
| 51 | VG1034080006 | Injection Pump Flange | 1; | |
| 52 | VG1034080029 | O-Ring | 1; | |
| 53 | VG1034080009 | Injection Pump Gear | 1; | |
| 54 | Q1201030F3 | Stud | 6; | |
| 55 | Q41810 | Шайба | 7; | |
| 56 | Q340B10 | гайка | 7; | |
| 57 | VG1034080030 | High Pressure Fuel Pipes | 1; | |
| 58 | VG1034080093 | Supporting | 1; | |
| 58 | VG1034080077 | Supporting | 1; | |
| 59 | VG1034080078 | Supporting | 1; | |
| 60 | VG1092080072 | Fuel coarse filter assembly | 1; | |
| 61 | VG1034080088 | Bracket | 1; | |
| 62 | Q150B1265 | Bolt | 2; | |
| 63 | Q41812 | Wave washer | 2; | |
| 64 | Q340B10 | гайка | 1; | |
| 65 | VG1034080086 | Bolt | 3; | |
| 66 | Q40308 | Пружинная шайба | 3; | |
| 67 | Q150B0822 | болт | 3; | |
| 68 | Q41808 | Пружинная шайба | 3; | |
| 69 | VG1092080012 | Filter | 1; | |
| 69 | VG1092080008 | Fuel fine filter assembly | 1; | |
| 70 | VG1034080109 | Bracket | 1; | |
| 70 | VG1034080085 | Bracket | 1; | |
| 71 | 190003962020 | Plug | 1; | |
| 72 | VG9003080005 | Sealing washer | 1; | |
| 73 | VG1038080050 | Block | 2; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
