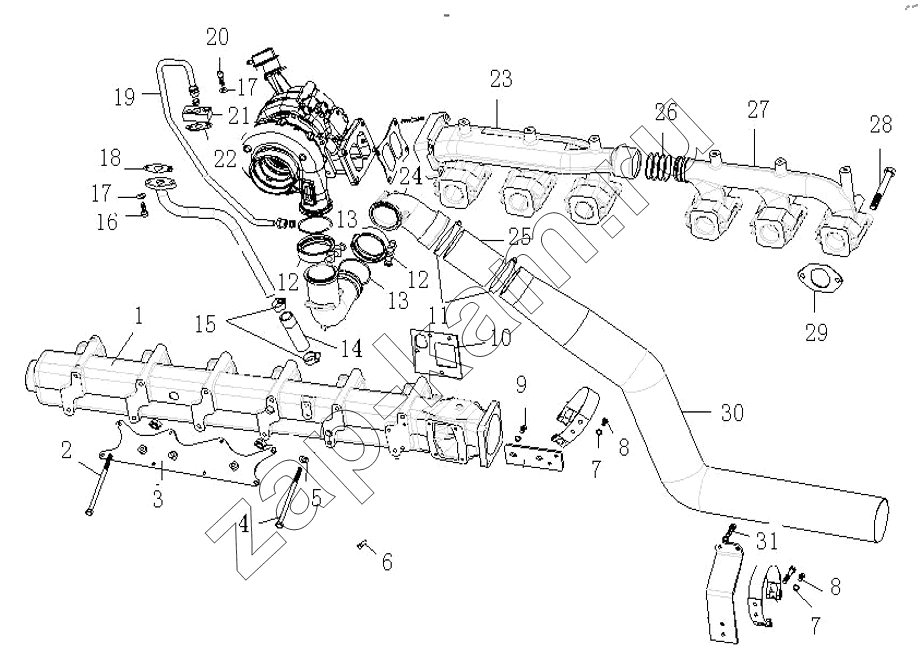

Intake Manifold and Exhaust Manifold
/ HOWO D10.34-50
1
2
3
4
5
6
7
7
8
8
9
10
11
12
12
13
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | VG1034110025 | Intake Manifold | 1; | |
| 2 | 190003800497 | Болт | 4; | |
| 3 | VG1034110027 | Mounting Plate | 1; | |
| 4 | VG1540110025 | болт | 4; | |
| 5 | 190003932023 | Spring washer | 12; | |
| 6 | 190003802331 | Bolt | 4; | |
| 7 | 190003932023 | Spring washer | 4; | |
| 8 | 190003802419 | Screw | 4; | |
| 9 | 190003802411 | Bolt | 4; | |
| 10 | VG1500110024 | Прокладка | 6; | |
| 11 | VG9003980003 | Clamp | 2; | |
| 12 | VG1560110226 | Прокладка | 2; | |
| 13 | VG190320035 | Прокладка | 2; | |
| 14 | VG2600070071 | Шланг | 1; | |
| 15 | 190003989340 | Стопорное кольцо | 2; | |
| 16 | VG1460070014 | Болт | 2; | |
| 17 | VG188250083 | Стопорное кольцо | 4; | |
| 18 | VG2600110048 | подкладка фланеца | 1; | |
| 19 | VG1092110146 | Tube | 1; | |
| 20 | 190003862428 | Screw | 2; | |
| 21 | VG1560110152 | Соединительная планка | 1; | |
| 22 | VG609E110050 | подкладка впускной трубки | 1; | |
| 23 | VG1500110123 | Rear air manifold | 1; | |
| 24 | VG1800110045 | Tube | 1; | |
| 25 | VG1047110103 | Hose | 1; | |
| 26 | VG260110162 | Поршневое кольцо | 4; | |
| 27 | VG2600111137 | Exhaust manifold | 1; | |
| 28 | VG2600111052 | Bolt | 12; | |
| 29 | VG1560110111A | Gasket | 6; | |
| 30 | VG1047110104 | Inter-cooled tube | 1; | |
| 31 | 190003802415 | Bolt | 2; | |
| 32 | VG1560110187 | Шпилька с резьбой | 4; | |
| 33 | 190003931082 | Spring washer | 4; | |
| 34 | VG1540110054 | болт | 4; | |
| 35 | VG2600111142 | Cover | 1; | |
| 36 | VG2600111143 | Cover | 1; | |
| 37 | 190003937282 | Washer | 12; | |
| 38 | VG2600111428 | Double-headed stud | 4; | |
| 39 | 190003888470 | гайка | 4; | |
| 40 | VG1034110101 | Clamp | 1; | |
| 40 | VG1034110126 | Clamp | 1; | |
| 41 | VG1500119011 | Supercharger gasket | 1; | |
| 42 | 190003932023 | Spring washer | 6; | |
| 43 | VG1047110105 | Plate | 1; | |
| 44 | VG1047110102 | Bracket | 1; | |
| 45 | VG1096110025 | Clamp | 2; | |
| 46 | Q150B0860 | болт | 2; | |
| 47 | Q40108 | Шайба | 2; | |
| 48 | Q40308 | Пружинная шайба | 2; | |
| 49 | Q218B0815 | Screw | 4; | |
| 50 | VG1095110051 | Plate | 1; | |
| 51 | VG1540110053D | Bracket | 1; | |
| 52 | VG1034110031 | Bracket | 1; | |
| 53 | VG1500110963 | Bolt | 12; | |
| 54 | Q40308 | Пружинная шайба | 12; |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
