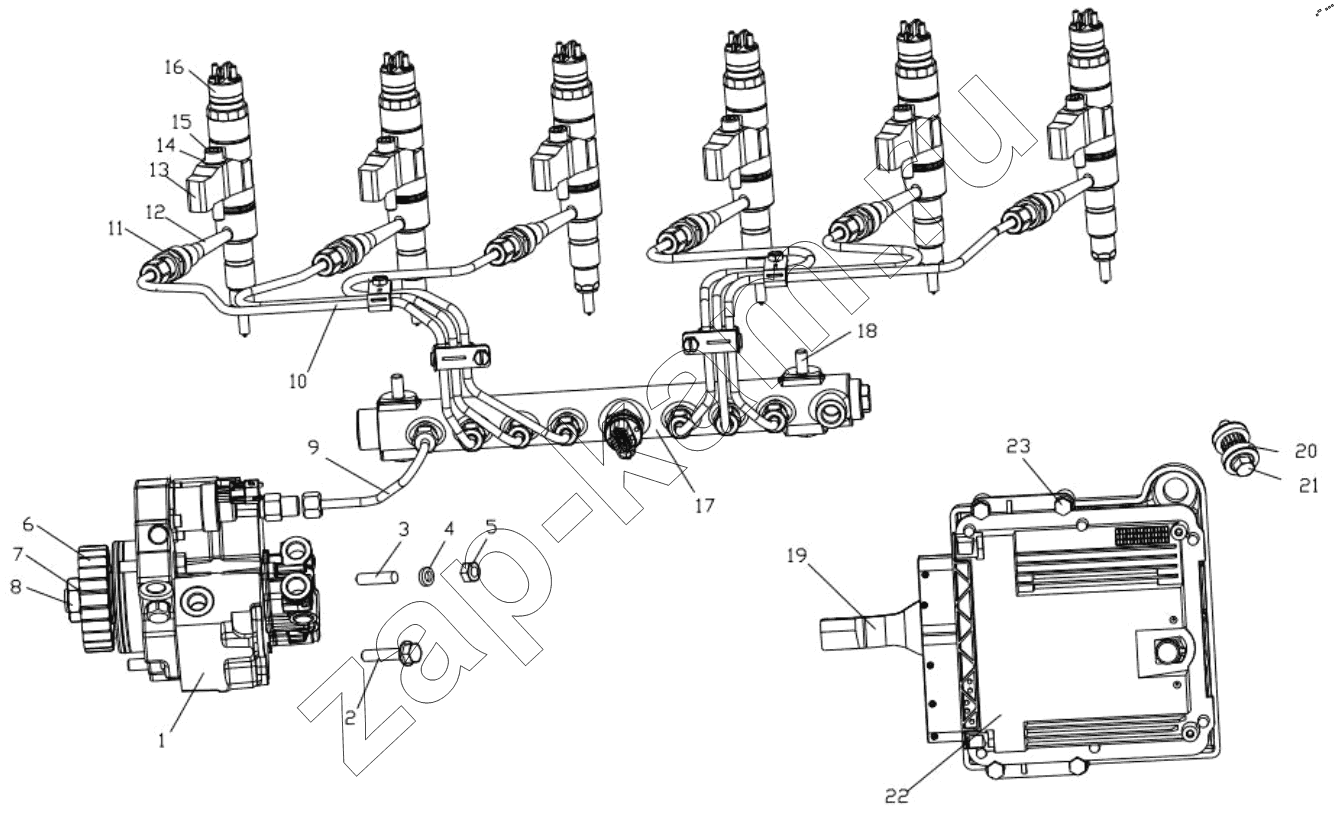

Fuel feed system
/ HOWO MC07
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 080V11103-7763 | Pump | 1; | - | |
| 2 | MQ6-03216-8308 | Hex bolt | 2; | - | |
| 3 | MQ6-06138-0709 | Stud | 1; | - | |
| 4 | MQ6-15013-0411 | Washer | 1; | - | |
| 5 | MQ6-11064-2114 | Nut | 1; | - | |
| 6 | 080V11301-0259 | Pump drive gear | 1; | - | |
| 7 | MQ6-15013-0417 | Washer | 1; | - | |
| 8 | MQ6-11022-6408 | Hexagon nut | 1; | - | |
| 9 | 080V10304-0295 | High presser pipe from pump to rail | 1; | - | |
| 10 | 080V10300-6151 | High presser pipe assembly | 1; | - | |
| 11 | 080V10108-0013 | Nut | 6; | - | |
| 12 | 080V10301-6159 | High presser connect | 6; | - | |
| 13 | 080V10104-0056 | Impact block | 6; | - | |
| 14 | MQ6-15140-2102 | Sphere washer | 6; | - | |
| 15 | MQ6-02191-0413 | Column bolt | 6; | - | |
| 16 | 080V10100-6085 | Injector | 6; | - | |
| 17 | 080V10311-6063 | Rail | 1; | - | |
| 18 | MQ6-03216-8311 | Hex bolt | 2; | - | |
| 19 | 082V11640-0287 | ECU bracket | 1; | - | |
| 20 | 200V96210-0077 | Bush gasket | 6; | - | |
| 21 | MQ6-02829-0025 | Hex bolt | 3; | - | |
| 22 | 202V25803-7915 | ECU | 1; | - | |
| 23 | MQ6-03216-8206 | Hex bolt | 4; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
