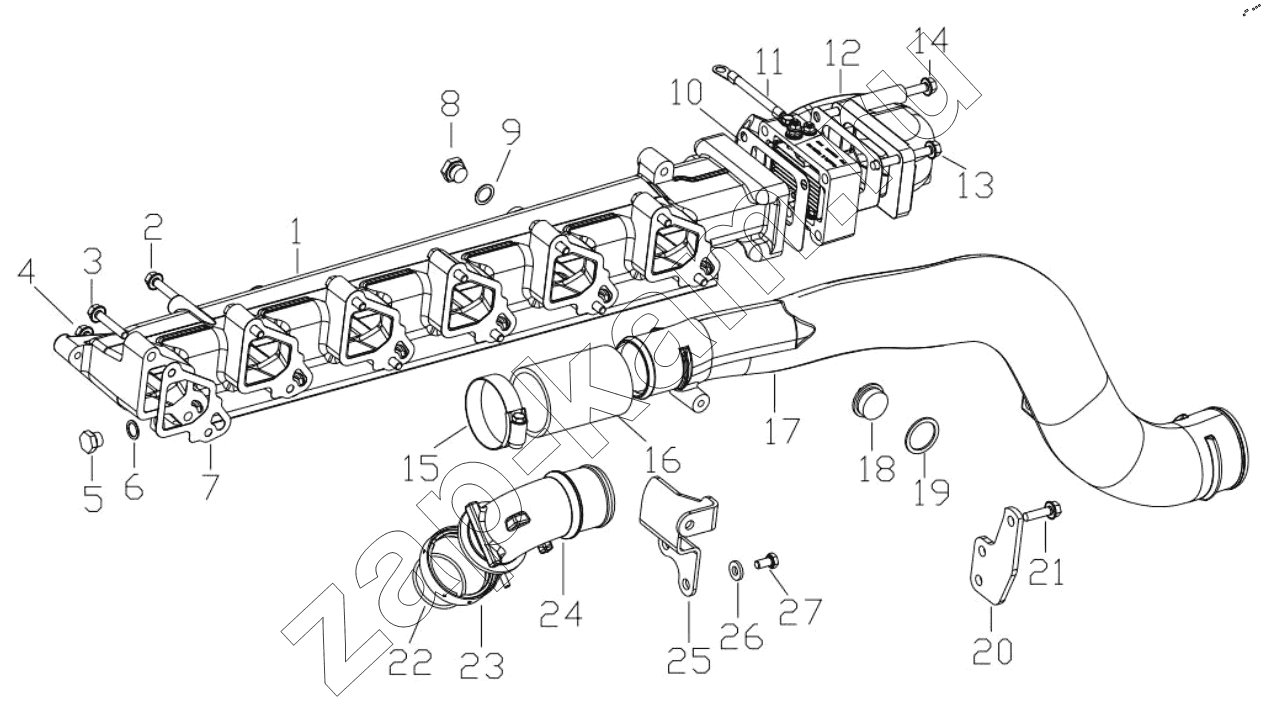

Intake System
/ HOWO MC07
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 081V08201-0467 | Intake manifold | 1; | |
| 2 | MQ6-03216-8319 | Hex bolt | 5; | |
| 3 | MQ6-03216-8309 | Hex bolt | 6; | |
| 4 | MQ6-03216-8317 | Hex bolt | 1; | |
| 5 | MQ6-08092-0144 | Screw plug | 1; | |
| 6 | MQ6-56631-0106 | Sealing ring | 1; | |
| 7 | 081V08902-0212 | Gasket | 6; | |
| 8 | MQ6-08092-0145 | Screw plug | 1; | |
| 9 | MQ6-56631-0107 | Sealing ring | 1; | |
| 10 | 082V08902-0203 | Shim | 2; | |
| 11 | 082V08902-0204 | Intake heating system | 1; | |
| 11 | 082V08902-0205 | intake flange | 1; | |
| 12 | 081V09411-0743 | Intercooler elbow | 1; | |
| 13 | MQ6-03216-8314 | Bolt | 1; | |
| 14 | MQ6-03216-8320 | Bolt | 2; | |
| 15 | MQ6-67129-0021 | Hose clamp | 1; | |
| 16 | 080V96301-0108 | Hose | 1; | |
| 17 | 081V09411-0916 | Charge air-pipe | 1; | |
| 18 | MQ6-08042-0211 | Screw plug | 1; | |
| 19 | MQ6-56631-0114 | Sealing ring | ; | |
| 20 | 081V09440-0165 | Braket | 1; | |
| 21 | MQ6-03216-8408 | Hex bolt | 1; | |
| 22 | MQ6-56343-1313 | Rund | 1; | |
| 23 | 080V97445-0052 | Clip | 1; | |
| 24 | 081V09411-0647 | Tube | 1; | |
| 25 | 081V09440-0127 | Braket | 1; | |
| 26 | MQ6-15013-0411 | Washer | 2; | |
| 27 | MQ6-01289-0272 | Hex bolt | 2; |
