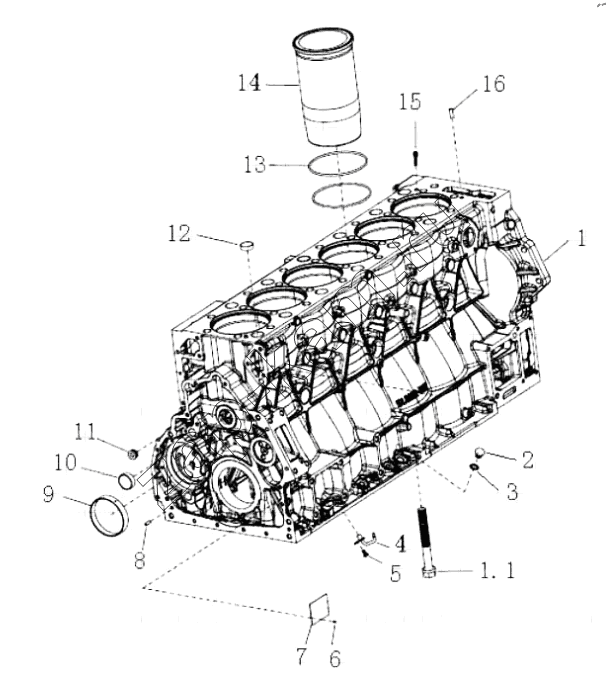

CRANKSHAFT HOUSING
/ HOWO MC11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
| Поз. | Артикул | Название детали | Кол-во | |
|---|---|---|---|---|
| 1 | 201-01102-6456 | Crankshaft housing -rear power take off | ; | |
| 1.1 | 200V90020-0391 | Main bearing bolts | ; | |
| 2 | MQ6-08042-0603 | Plugs | ; | |
| 3 | MQ6-56631-0106 | Sealing ring | ; | |
| 4 | 200V01601-0015 | Oil Nozzle | ; | |
| 5 | MQ6-03216-8202 | Hex Bolt | ; | |
| 6 | VG2600010791 | Rivet | ; | |
| 7 | 202V97871-0195 | Nameplate | ; | |
| 8 | MQ6-22140-1011 | Cylindrical pin | ; | |
| 9 | 201V93020-0405 | Oil pump bushings | ; | |
| 10 | 200V91606-0037 | Cypriot bowl | ; | |
| 11 | MQ6-21649-0008 | Sealing plug | ; | |
| 12 | 200V91606-0036 | Cypriot bowl | ; | |
| 13 | 200V96501-0534 | Cylinder liner seals | ; | |
| 14 | 200V01201-0417 | Cylinder liner | ; | |
| 15 | 200V90310-0118 | Locking screw | ; | |
| 16 | MQ6-22022-3563 | Cylindrical pin | ; |
