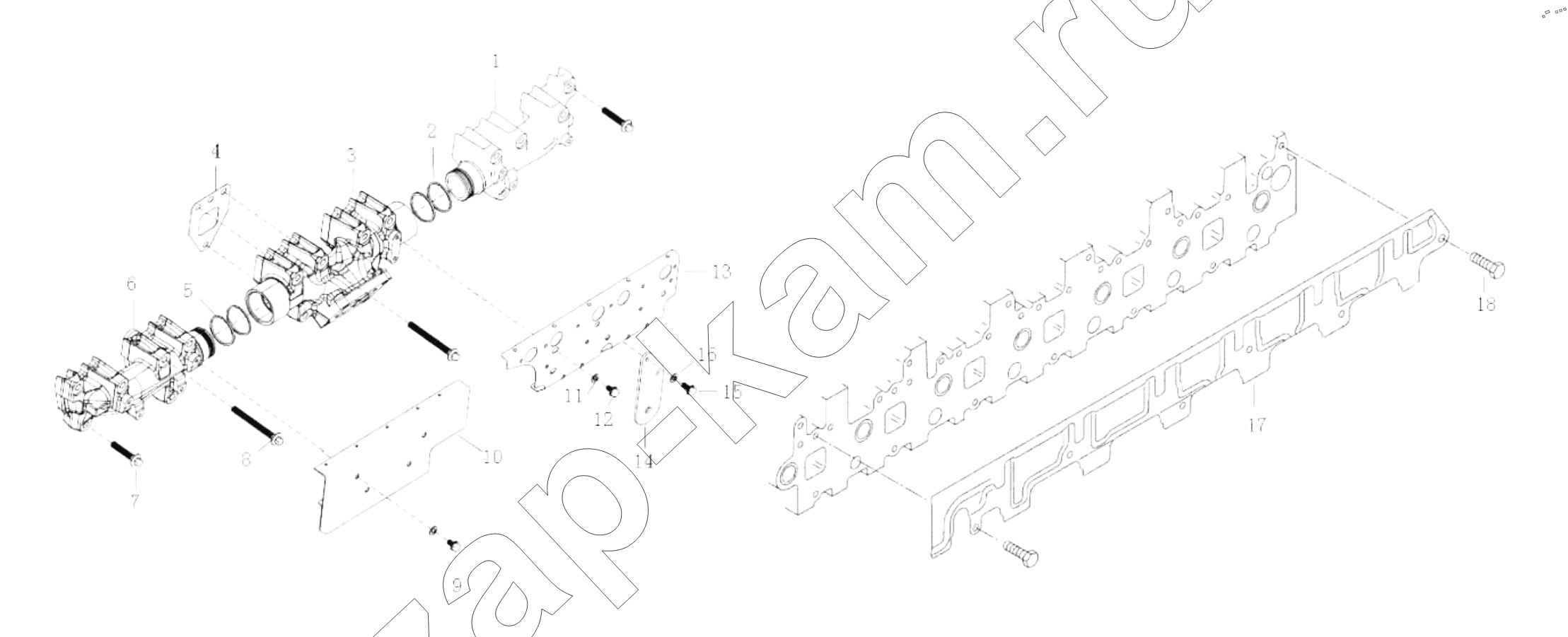

EXHAUST SYSTEM
/ HOWO MC11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| Поз. | Артикул | Название детали | Кол-во | Цена | |
|---|---|---|---|---|---|
| 1 | 200V08102-0116 | Front exhaust manifold | ; | - | |
| 2 | 200V98701-0120 | Exhaust pipe sealing ring | ; | - | |
| 3 | 200V08102-0234 | The exhaust manifold | ; | - | |
| 4 | 201V08901-0284 | Exhaust pipe gasket | ; | - | |
| 5 | 200V98701-0120 | Exhaust pipe sealing ring | ; | - | |
| 6 | 200V08102-0189 | After the exhaust manifold | ; | - | |
| 7 | 200V90490-0051 | Heat bolt | ; | - | |
| 8 | 200V90490-0032 | Heat bolt | ; | - | |
| 9 | MQ6-01289-0274 | Hex head bolt | ; | - | |
| 10 | 201V08120-5286 | 4-6 cylinder insulation board | ; | - | |
| 11 | MQ6-15013-0411 | Washer | ; | - | |
| 12 | MQ6-01289-0274 | Hex head bolt | ; | - | |
| 13 | 201V08120-5276 | 1-3 cylinder insulation board | ; | - | |
| 14 | VG1092110148 | Air filter holder plate | ; | - | |
| 15 | MQ6-01289-0266 | Hex bolt | ; | - | |
| 16 | MQ6-15013-0411 | Washer | ; | - | |
| 17 | 201V08120-0403 | Insulation panels - Head | ; | - | |
| 18 | MQ6-03215-8403 | Hexagon flange bolts | ; | - |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
