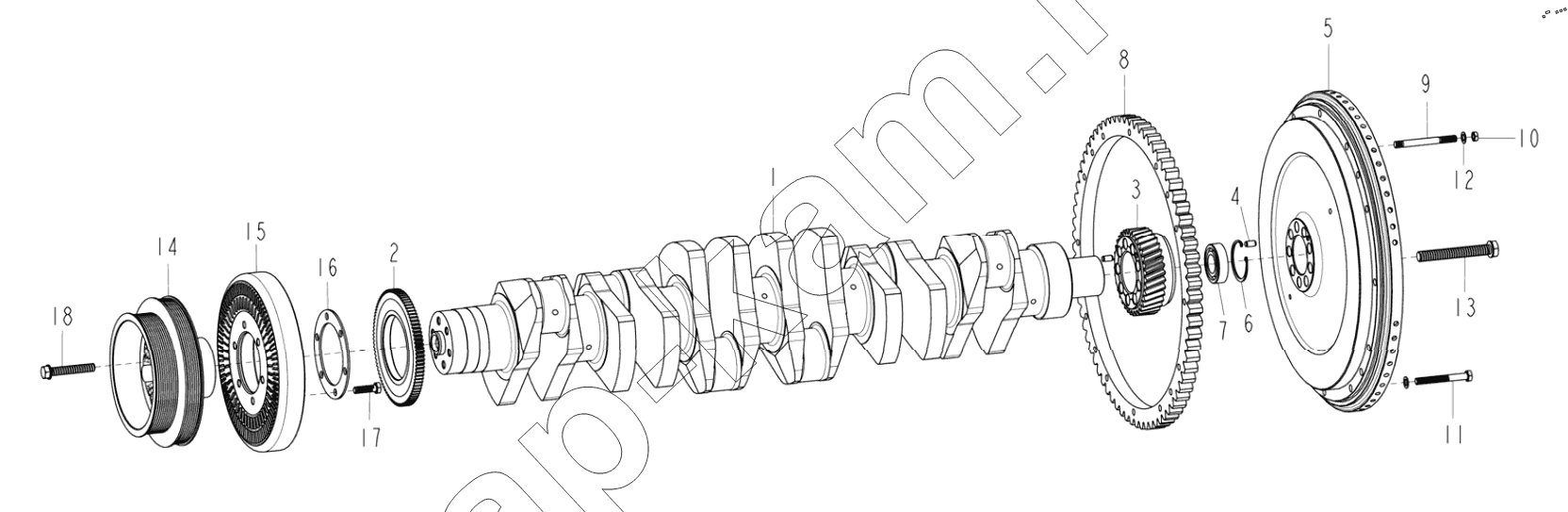

Crankshaft Flywheel
/ HOWO T12.38-30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| Поз. | Артикул | Название детали | T12.38-30 (HOWO) | T12.42-30 (HOWO) | T12.38-30 (A7) | T12.42-30 (A7) | |
|---|---|---|---|---|---|---|---|
| AZ1246020014 | AZ1246020014 | Crankshaft assembly | 1 | 1 | 1 | 1 | |
| 1 | AZ1246020013 | Crankshaft | 1 | 1 | 1 | 1 | |
| 2 | VG1246020012 | Front crankshaft gear | 1 | 1 | 1 | 1 | |
| 3 | VG1246020011 | Rear crankshaft gear | 1 | 1 | 1 | 1 | |
| 4 | Q5210816 | Dowel pin | 2 | 2 | 2 | 2 | |
| 5 | AZ1238020001 | Flywheel | 1 | 1 | 1 | 1 | |
| 6 | Q43062 | Circlip | 1 | 1 | 1 | 1 | |
| 7 | 190003311416 | Ball bearing | 1 | 1 | 1 | 1 | |
| 8 | VG2600020208 | Венец маховик | 1 | 1 | 1 | 1 | |
| 9 | Q1201090F3 | Stud | 2 | 2 | 2 | 2 | |
| 10 | Q340B10 | гайка | 2 | 2 | 2 | 2 | |
| 11 | Q150B1085 | Screw | 10 | 10 | 10 | 10 | |
| 12 | Q41810 | Шайба | 12 | 12 | 12 | 12 | |
| 13 | VG1246020010 | Flywheel bolt | 9 | 9 | 9 | 9 | |
| 14 | VG1246020020 | Crankshaft belt pulley | 1 | 1 | 1 | 1 | |
| 15 | VG1246020005 | Vibration damper | 1 | 1 | 1 | 1 | |
| 16 | VG1246020003 | Washer | 1 | 1 | 1 | 1 | |
| 17 | Q150B1030 | болт | 6 | 6 | 6 | 6 | |
| 18 | VG1246020004 | Hex head bolt | 6 | 6 | 6 | 6 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
